Detailed Specifications

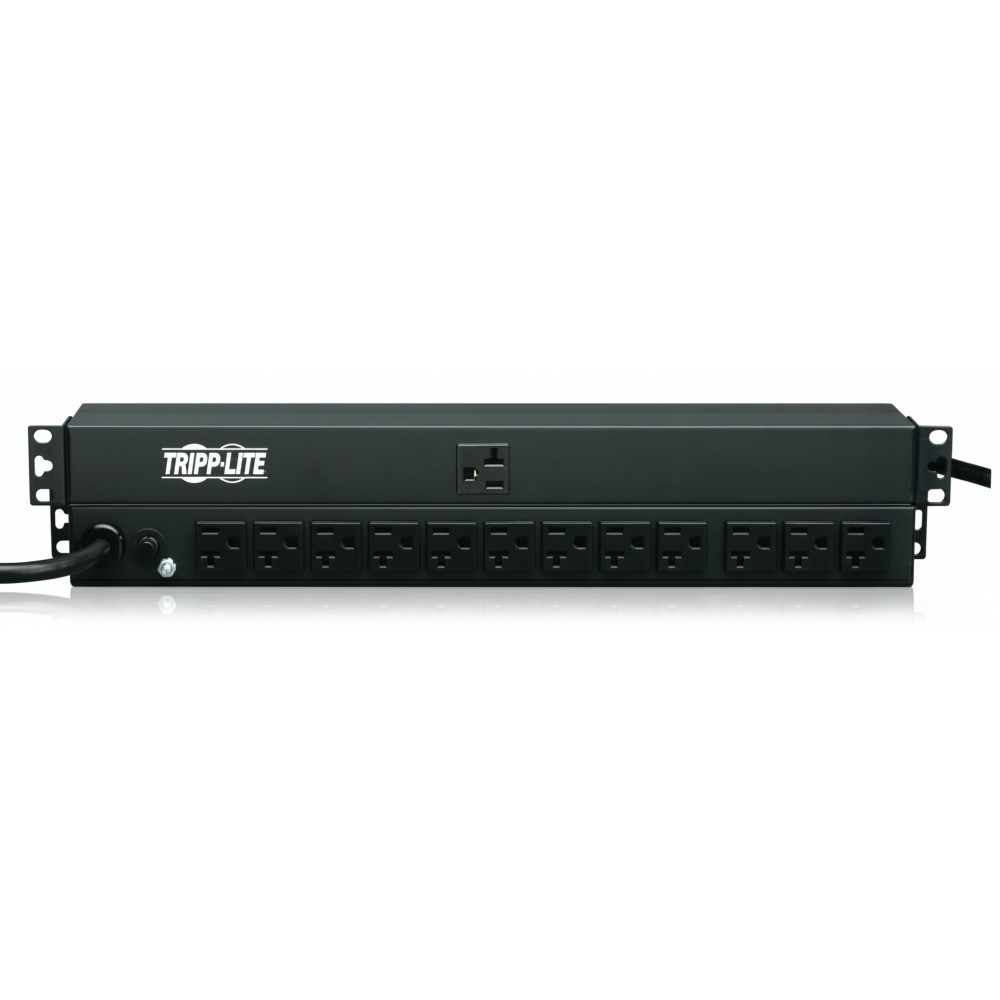

Eaton PDU1220T - Basic Rack-PDU 20 A 120 V
Overview
The PDU1220T is a basic rack-mount power distribution unit engineered for IT infrastructure deployments where high outlet count and reliable 120 V power are required. It features a 20-amp input and distributes power to 13 outlets (12 rear, one front) from a single load bank, making it suitable for server racks, network closets or edge equipment cabinets. With its 1U horizontal form factor and reversible housing, it fits standard 19-inch racks, wall-mount, under-counter or 0U cable-management panel installations. It includes a 15-foot line cord and 20 A circuit breaker to protect connected equipment from overload.
Key Features
13 NEMA 5-15/20R outlets for versatile device connection
20-amp circuit breaker protects entire load bank
NEMA L5-20P twist-lock input with 15-ft cord for robust connection
Switchless design prevents inadvertent shutdown of critical loads
Reversible all-metal housing supports multiple mounting configurations
Technical Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | PDU1220T |
| Product Type | Basic Rack PDU 120 V |
| Input Phase | Single-phase |
| Input Voltage | 120 V AC |
| Rated Input Current | 20 A |
| Output Capacity | 2.4 kW (120 V) / 20 A total |
| Output Receptacles | 13 × NEMA 5-15/20R |
| Input Plug Type | NEMA L5-20P |
| Input Cord Length | 15 ft |
| Unit Dimensions (H × W × D) | 1.75″ × 20.00″ × 4.50″ |
| Unit Weight | 5.2 lb |
| Minimum Required Rack Depth | 9.5″ |
| Mounting Options | 1U rack, 0U vertical with bracket, wall, under-counter |
| Operating Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
