Detailed Specifications
Eaton PDUMH15AT - Metered Rack PDU 15A 120V
Overview

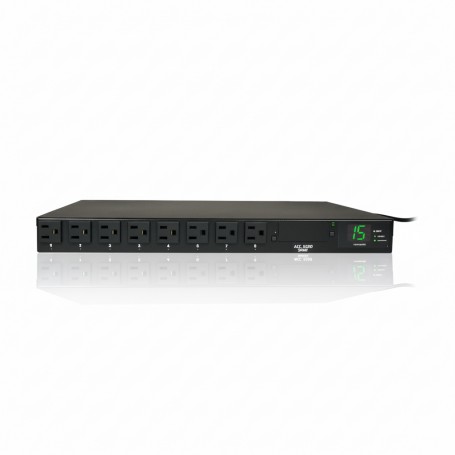

The Eaton PDUMH15AT is a 15-amp, single-phase metered rack PDU with an automatic transfer switch designed for IT racks and data centers requiring redundant power input. It provides continuous 120-volt output to connected equipment while automatically switching between two independent AC sources when needed. A built-in digital current meter displays real-time load data to prevent circuit overloads. The 1U rackmount design with dual 12-foot cords supports easy installation in network closets, branch offices, or edge environments.
Key Features
Dual input design for primary and secondary AC power redundancy
Eight NEMA 5-15R outlets with single-phase 120V output
Integrated digital current meter for load monitoring
Automatic transfer switch with 2-7 ms switching time
1U horizontal rackmount form factor for compact installation
Technical Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | PDUMH15AT |
| Product Type | Metered Rack PDU with ATS |
| Input Phase | Single Phase |
| Input Voltage | 120V AC |
| Rated Current | 15A (12A continuous) |
| Input Connections | 2 × NEMA 5-15P (primary/secondary) |
| Output Receptacles | 8 × NEMA 5-15R |
| Output Capacity | 1.44 kW at 120V |
| Cord Length | 12 ft (each input) |
| Dimensions (H × W × D) | 1.75″ × 17.50″ × 14.50″ |
| Weight | 11 lb |
| Switching Time | 2-7 milliseconds |
| Display Type | Digital current meter |
| Mounting Type | 1U rackmount |
| Compliance | TAA compliant |
