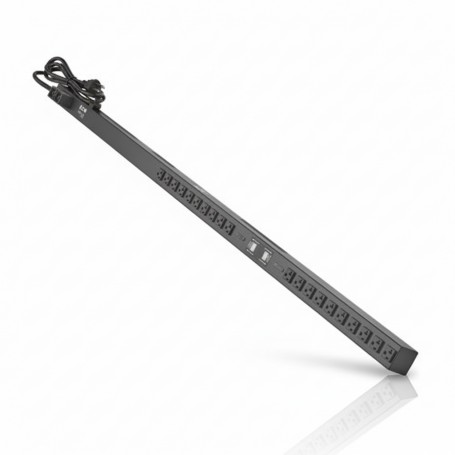

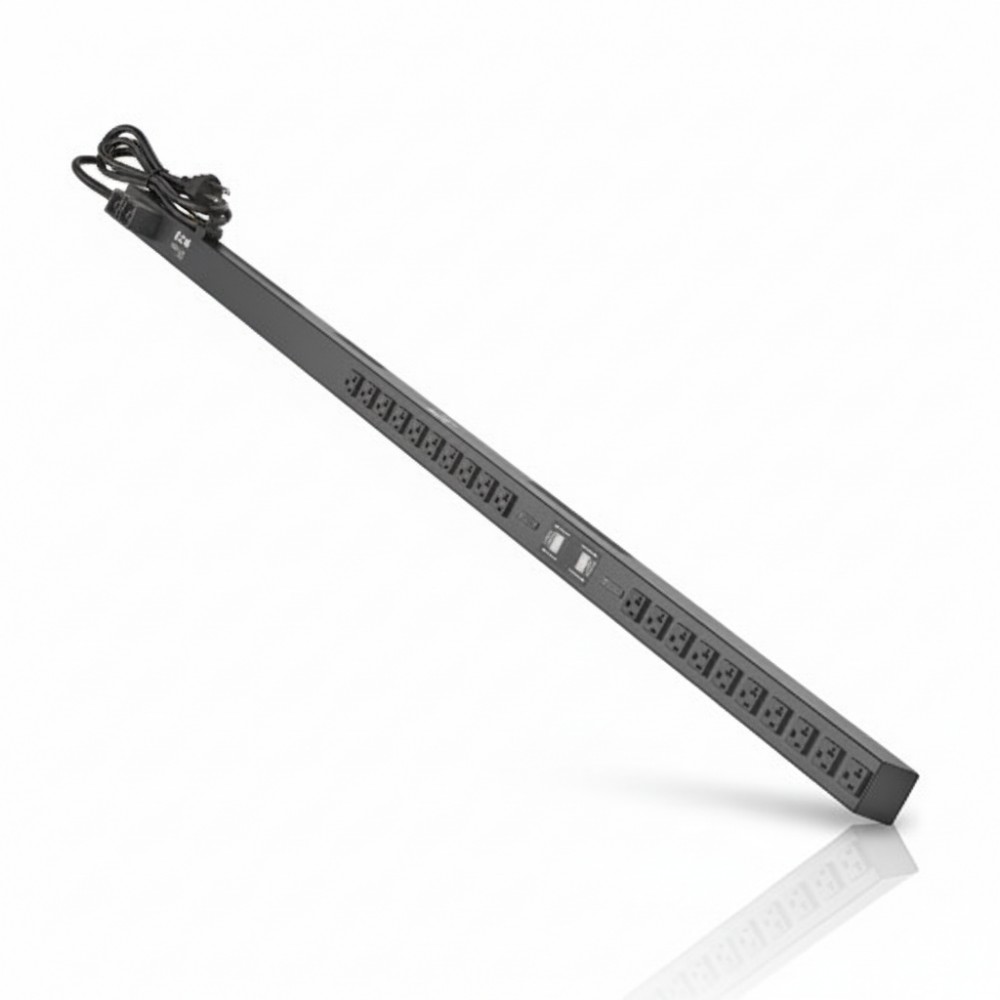

Eaton PDUMV30 - 0U Vertical Rack Power Distribution Unit
Overview
The Eaton PDUMV30 is a basic 0U vertical rack power distribution unit (PDU) designed for straightforward AC power distribution in rack environments without integrated metering, switching, or network management. It is deployed by IT technicians and infrastructure engineers in data centers, IDF/MDF closets, and edge rack cabinets to reliably feed rack loads from utility or UPS sources. This series addresses the need for simple, space-efficient power distribution where advanced monitoring or control is not required.
The PDUMV30 operates within a 208/230 V single-phase power ecosystem and is typically rated for 30 A continuous current (≈6.6-7.0 kW), depending on the specific variant. It mounts vertically along rack posts, offering multiple IEC-320 outlets (e.g., C13 and C19) to support servers, storage arrays, and network devices. Input connection is commonly via a NEMA or IEC inlet with a fixed power cord or hardwired termination, depending on regional model configuration.
Mechanically, the PDU uses a 0U vertical form factor, preserving valuable rack-unit space for active equipment in 19-inch EIA racks. Tool-less mounting brackets or rail mounts enable rapid installation and secure attachment to standard rack posts. Its slim profile and high outlet density make it suitable for high-density racks where rack units are constrained.
Integration into rack power architectures is straightforward: the PDUMV30 is typically fed from a UPS or facility mains and distributes power to connected loads without active control or metering. This basic distribution layer is commonly paired with separate UPS systems and rack circuit breakers to provide overall rack protection and power integrity.
A typical deployment example includes powering a row of servers and network appliances in a core rack, where the PDUMV30 feeds outlets directly from the facility power or a UPS output. This unit is not suitable for environments that require outlet-level monitoring, switching, or networked management × for those cases consider monitored or switched PDU models.
Key Features
- 0U vertical rack PDU for space-efficient deployments
- Supports 208/230 V single-phase, 30 A continuous distribution
- Multiple IEC-320 outlets (C13, C19 mix depending on SKU)
- Tool-less vertical mounting for 19″ EIA racks
- Basic design with no metering or network control
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | PDUMV30 |
| Product Type | Vertical Rack PDU (Basic) |
| Input Voltage | 208/230 V AC |
| Phase | Single-phase |
| Maximum Current | 30 A |
| Power Capacity | ~6.6-7.0 kW |
| Input Connection | Varies by model: NEMA/IEC inlet or hardwired |
| Output Receptacles | Multiple IEC-320 (C13/C19 mix; model dependent) |
| Rack Units Used | 0U vertical |
| Rack Height | 19″ EIA standard |
| Mounting | Vertical rack post with brackets |
| Cable Retention | Included brackets / clips |
| Housing | Metal chassis |
| Operating Temp | 0-40 °C |
| Certifications | UL/CSA/CE (region dependent) |
| Dimensions (H×W×D) | Model dependent |
| Weight | Model dependent |
