Detailed Specifications

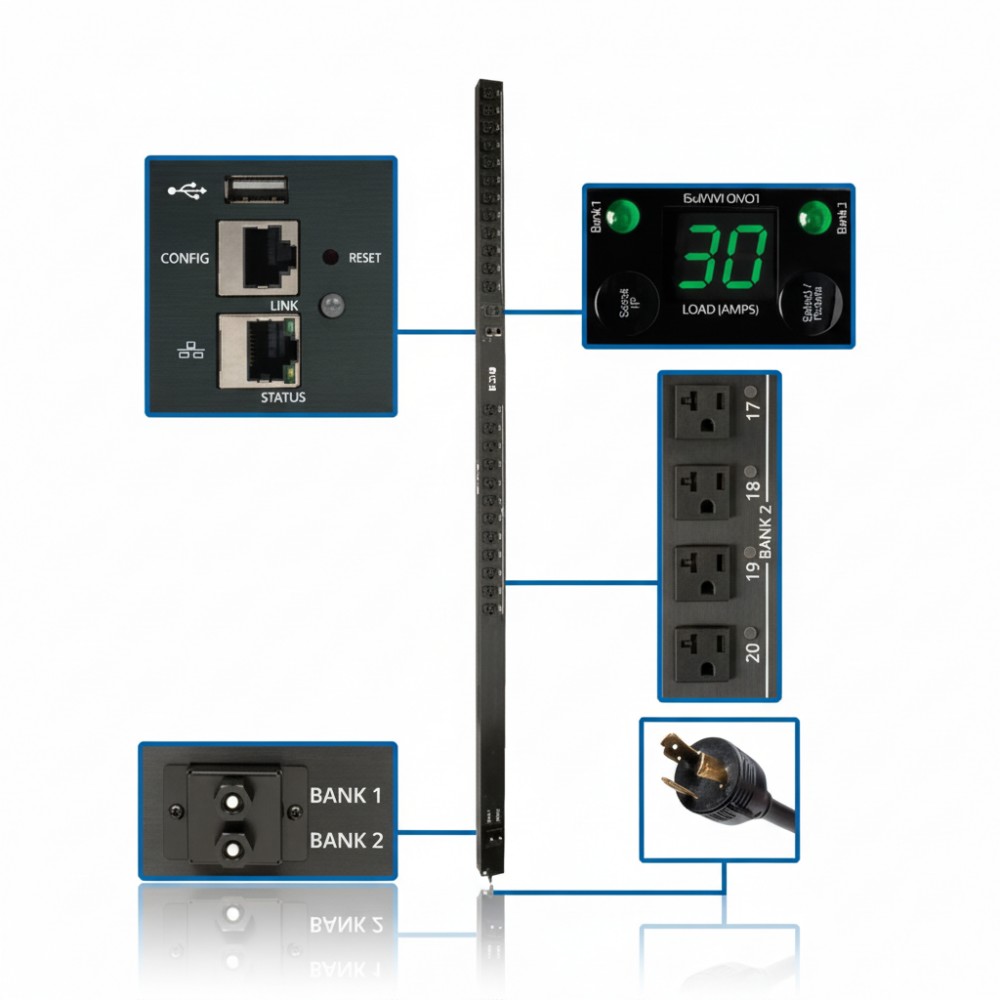

Eaton PDUMV30NETLX - Switched Single-Phase PDU
Overview :
The Eaton PDUMV30NETLX is a 0U vertical, single-phase switched power distribution unit (PDU) designed for IT racks, network closets or edge-data-centres where individual outlet control and remote monitoring are required. It offers 24 controllable NEMA 5-15/20R outlets on a 120 V input and supports remote on/off/reboot of connected equipment via the LX platform interface. The unit mounts in standard 19-inch racks without occupying vertical rack-space, enabling high-density deployments in branch or campus locations, data centres or edge environments. It integrates into network-management systems via SNMP, HTTP/HTTPS and serial interfaces and supports real-time load-monitoring to help avoid circuit overloads.
Key Features :
24 individually controllable NEMA 5-15/20R outlets in two breakered banks
Built-in LX Platform interface with HTML5 web, SNMP v1/v2/v3, SSH/telnet control
Digital ammeter reports load per bank and total draw in real time
NEMA L5-30P 10 ft (3.05 m) cord with 30 A plug for 120 V single-phase input
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | PDUMV30NETLX |
| Product Type | Single-Phase Switched PDU |
| Maximum Output Capacity | 2.9 kW (120 V) |
| Input Voltage | 120 V |
| Input Current Rating | 24 A (agency de-rated) |
| Input Plug Type | NEMA L5-30P |
| Cord Length | 10 ft (3.05 m) |
| Number of Outputs | 24 outlets (NEMA 5-15/20R) |
| Mounting Form Factor | 0U vertical, 19-inch rack |
| Product Width | 2.19 in |
| Product Depth | 2.65 in |
| Product Height | 70.00 in |
| Product Weight | 14.1 lb |
| Operating Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
