Detailed Specifications

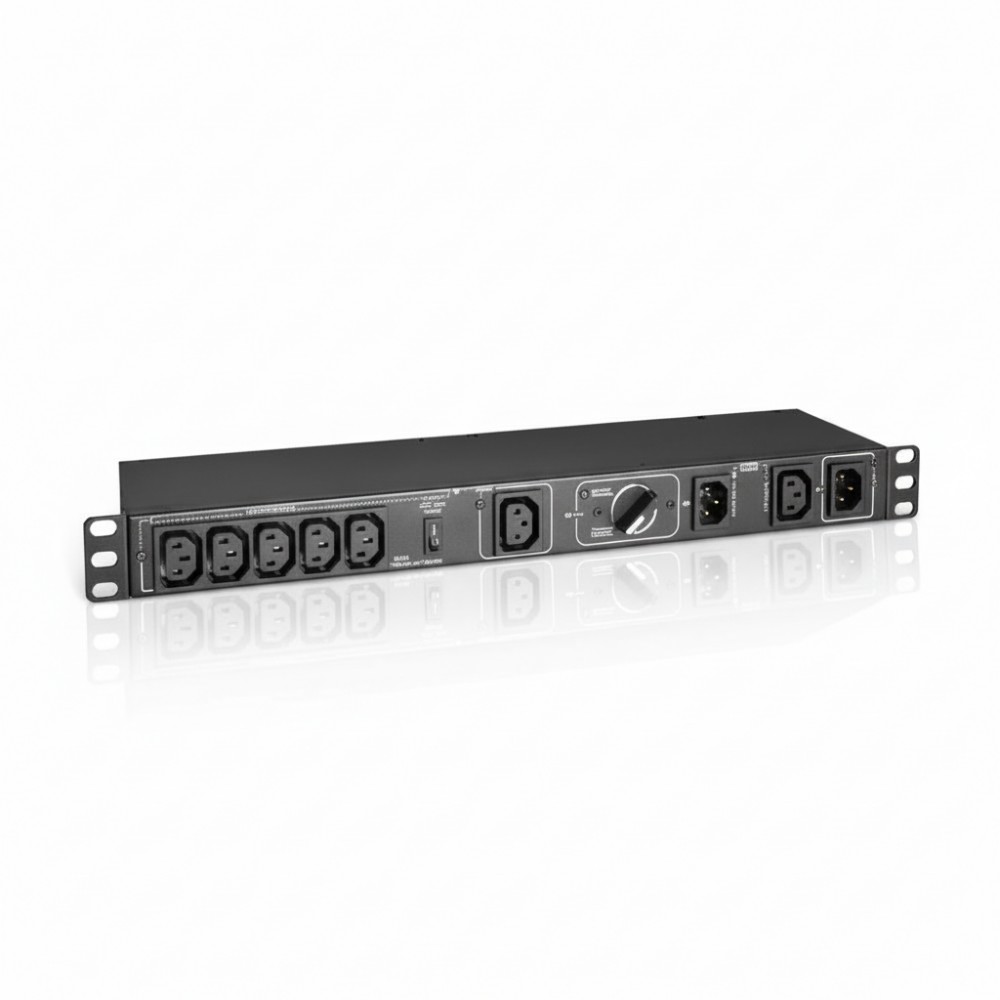

Eaton Tripp Lite PDUBHV101U Hot-Swap 200-250 V 10 A PDU Eaton & Tripp Lite Compatible
Overview :
The PDUBHV101U from Tripp Lite (an Eaton company) is designed for rack environments where uninterrupted power delivery is critical during maintenance of the UPS. It features dual IEC C14 inlets to feed the load from either a UPS or utility source, and a manual transfer switch to switch without powering down connected equipment. The unit provides six IEC C13 outlets in a horizontal 1-U form factor suitable for rack-mount or wall-mount deployment. Supporting an input range of 200-250 V at 10 A, it fits international and high-voltage server racks. Its ECO mode allows automatic shutdown of a controllable outlet bank when the master outlet becomes idle, helping reduce standby power usage. Compatible with both Eaton and Tripp Lite rack-power systems, the PDUBHV101U integrates seamlessly into mixed-brand infrastructures. It is ideal for data-center, campus, or branch racks where scheduled UPS maintenance must not interrupt server operation.
Key Features :
• Dual IEC C14 inlets and manual transfer switch for hot-swap bypass
• Six IEC C13 outlets provide controlled power to connected equipment
• ECO-Switching mode shuts off controlled outlets when master outlet is inactive
• 1 U horizontal chassis supports 19-inch rack or wall mounting
• Fully compatible with Eaton and Tripp Lite rack-power systems
Technical Specifications :
| Specification | Details |
|---|
| Brand | Tripp Lite (Eaton Company) |
| Part Number | PDUBHV101U |
| Product Type | Hot-Swap Single-Phase Bypass Rack PDU |
| Input Voltage | 200-250 V AC, single-phase |
| Maximum Input Current | 10 A |
| Input Connection Type | 2 × IEC 320 C14 inlets |
| Output Receptacles | 6 × IEC 320 C13 outlets |
| Output Capacity | 2.0 kW @ 200 V, 2.5 kW @ 250 V |
| Form Factor | Horizontal 1 U rack/ wall mount |
| Dimensions (inches) | 1.73 in (H) × 17.24 in (W) × 3.94 in (D) |
| Weight (lbs) | 5.2 lbs |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Temperature | -22 °F to 122 °F (-30 °C to 50 °C) |
| Relative Humidity | 5% to 95% non-condensing |
| Compatible Brands | Eaton, Tripp Lite rack-power systems |
