Detailed Specifications

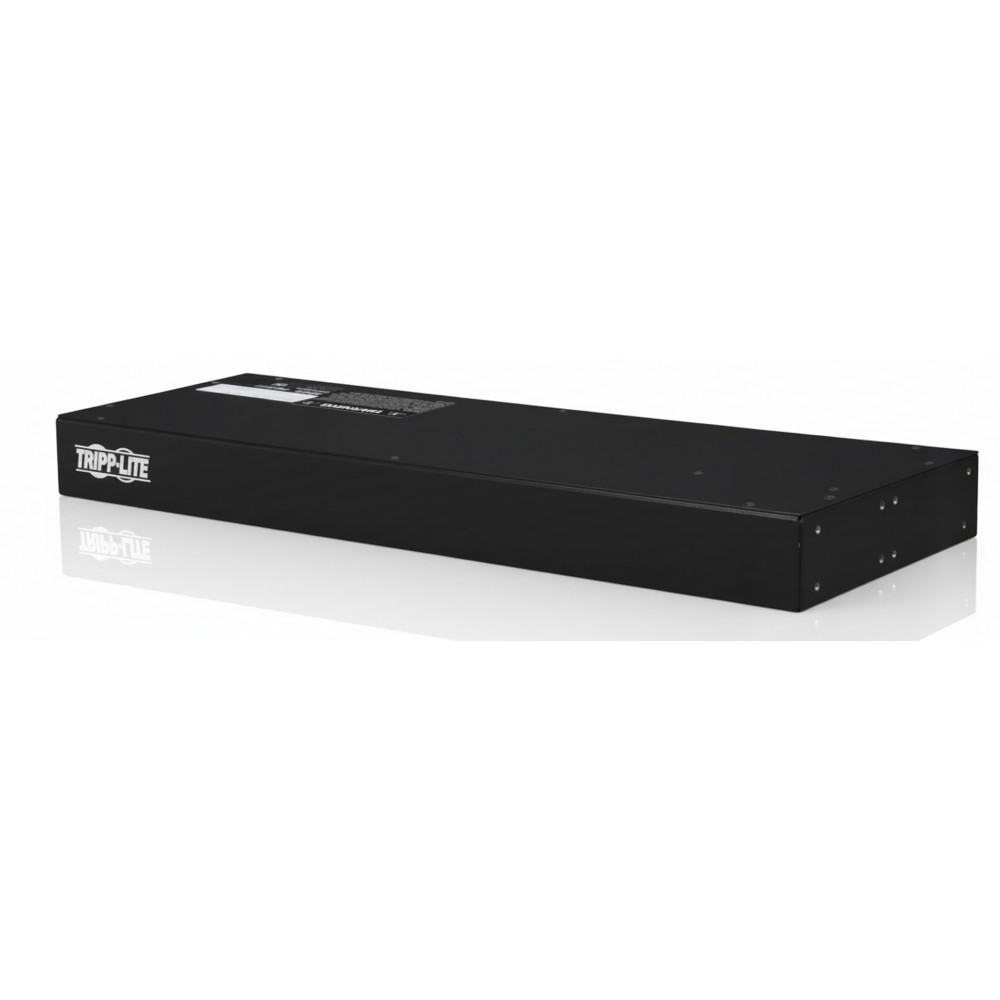

Tripp Lite PDUMNH15 Monitored Single-Phase Rack PDU Eaton & Tripp Lite Compatible
Overview :
The PDUMNH15 from Tripp Lite (an Eaton company) is a 1 U horizontal rack-mount power distribution unit (PDU) designed for single-phase 120 V environments in data centers, network closets, and branch IT racks. It provides eight NEMA 5-15R outlets and supports a total continuous load of up to 12 A (15 A nominal) for connected IT equipment. The unit includes a built-in LX Platform network interface card enabling remote monitoring of voltage, frequency and current over Ethernet, SNMP, telnet or SSH. Its rugged metal housing accommodates front or rear mounting in 2-post and 4-post racks, wall-mount or under-counter installations, with cord retention brackets for secure connection. The attached 12-ft (3.66 m) NEMA 5-15P input cord simplifies deployment from standard 120 V branch circuits. Fully compatible with Eaton and Tripp Lite rack-power ecosystems, it fits mixed-brand infrastructure without integration issues.
Key Features :
• Eight NEMA 5-15R outlets for standard rack-equipment connectivity
• LX Platform interface offers remote load, voltage and frequency monitoring
• Attached 12-ft (3.66 m) NEMA 5-15P input cord for flexible rack deployment
• 1 U horizontal chassis with reversible mounting ears for front or rear facing installation
• Compatible with Eaton and Tripp Lite rack-power systems and accessories
Specifications :
| Specification | Details |
|---|
| Brand | Tripp Lite (Eaton Company) |
| Part Number | PDUMNH15 |
| Product Type | Power Distribution Unit |
| Input Voltage | 120 V AC, 50/60 Hz |
| Maximum Input Current | 15 A (agency de-rated to 12 A continuous) |
| Input Plug Type | NEMA 5-15P |
| Input Cord Length | 12 ft (3.66 m) |
| Output Receptacles | 8 × NEMA 5-15R |
| Output Capacity | 1.44 kW @ 120 V (12 A continuous) |
| Form Factor | Horizontal 1 U rack-mount |
| Dimensions (inches) | 1.70 in (H) × 17.30 in (W) × 6.20 in (D) |
| Weight (lbs) | 6.5 lbs |
| Operating Temp Range | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Temp Range | -22 °F to 122 °F (-30 °C to 50 °C) |
| Compatible Brands | Eaton, Tripp Lite rack power systems |
