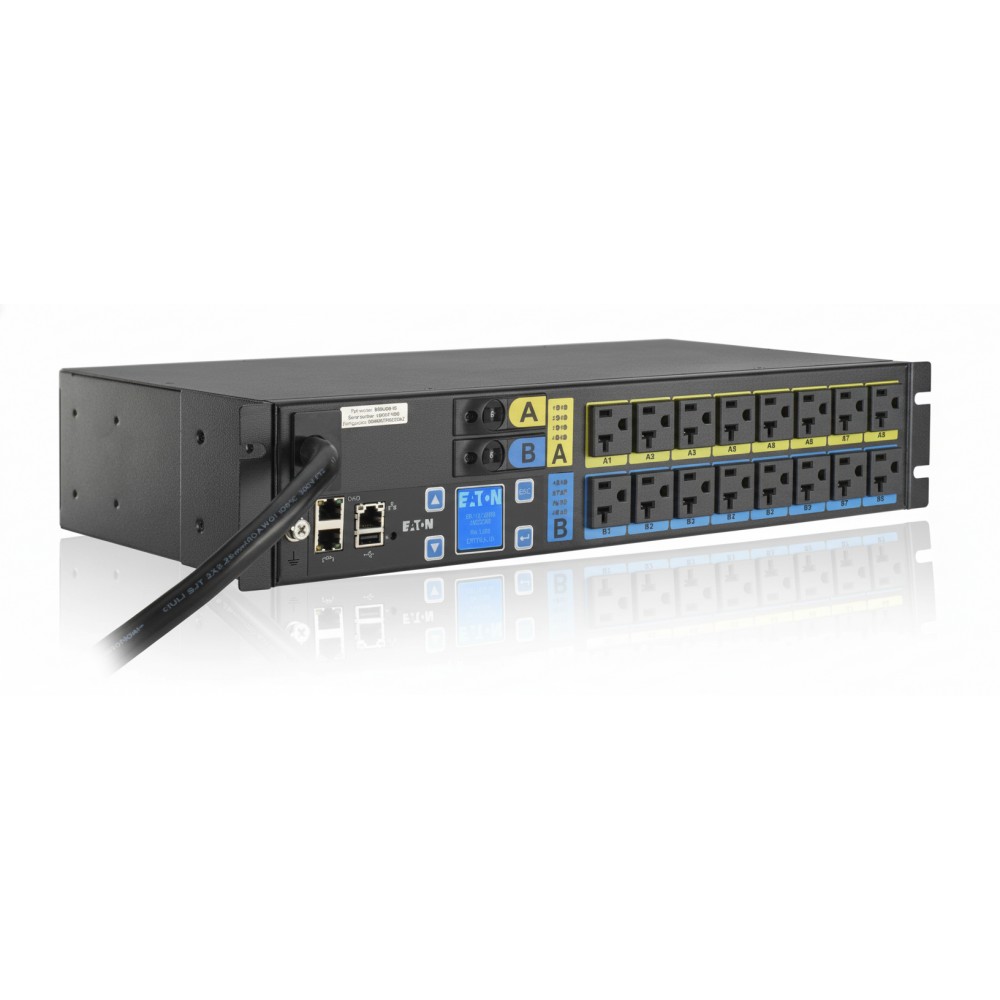

Eaton EMAU05-10 2U Managed Rack PDU 16 Outlets View larger

Eaton EMAU05-10 2U Managed Rack PDU 16 Outlets

EMAU05-10

New

In Stock

Managed 2U rack PDU – 16-outlet, 24 A EM.
×




$1,039.00

Detailed Specifications

Eaton EMAU05-10 2U Managed Rack PDU 16 Outlets

Product Description
The Eaton EMAU05-10 is a managed rack-mount power distribution unit (PDU) built for IT racks that need remotely-visible power control and monitoring. It supports a 24 A, 120 V single-phase input via a NEMA L5-30P plug and delivers up to 2.88 kW across 16 NEMA 5-20R outlets. It mounts in a 2U rack space and is suitable for server-rooms or edge-data closets where you need outlet-level visibility and remote management of power feeds. Compatible with Eaton’s ePDU G3 manager and SNMP/RS-232 interfaces for integration into DCIM.

Key Features

  • 24 A (2.88 kW) single-phase input via NEMA L5-30P supports dense rack loads.

  • 16 NEMA 5-20R outlets providing standard 120 V receptacles for IT gear.

  • Managed PDU with Ethernet 10/100 and RS-232 interface enables remote monitoring and control.

  • 2U horizontal chassis fits standard 19″ racks, allowing efficient rack-mount deployment.

Technical Specifications

SpecificationDetail
Brand Eaton
Part Number EMAU05-10
Product Type Managed Rack PDU
Key Specification 1 Input: NEMA L5-30P, single-phase 24 A @ 120 V
Key Specification 2 Outputs: 16 × NEMA 5-20R outlets
Key Specification 3 Maximum power capacity: 2.88 kW
Management Ethernet 10/100 and RS-232 remote interface
Power Requirements 120 V AC, 50-60 Hz, single-phase, 24 A
Dimensions & Weight 2U rack height (approx. 3.43″ × 19″ × 8.39″), ~13 lb (per datasheet)
