Detailed Specifications

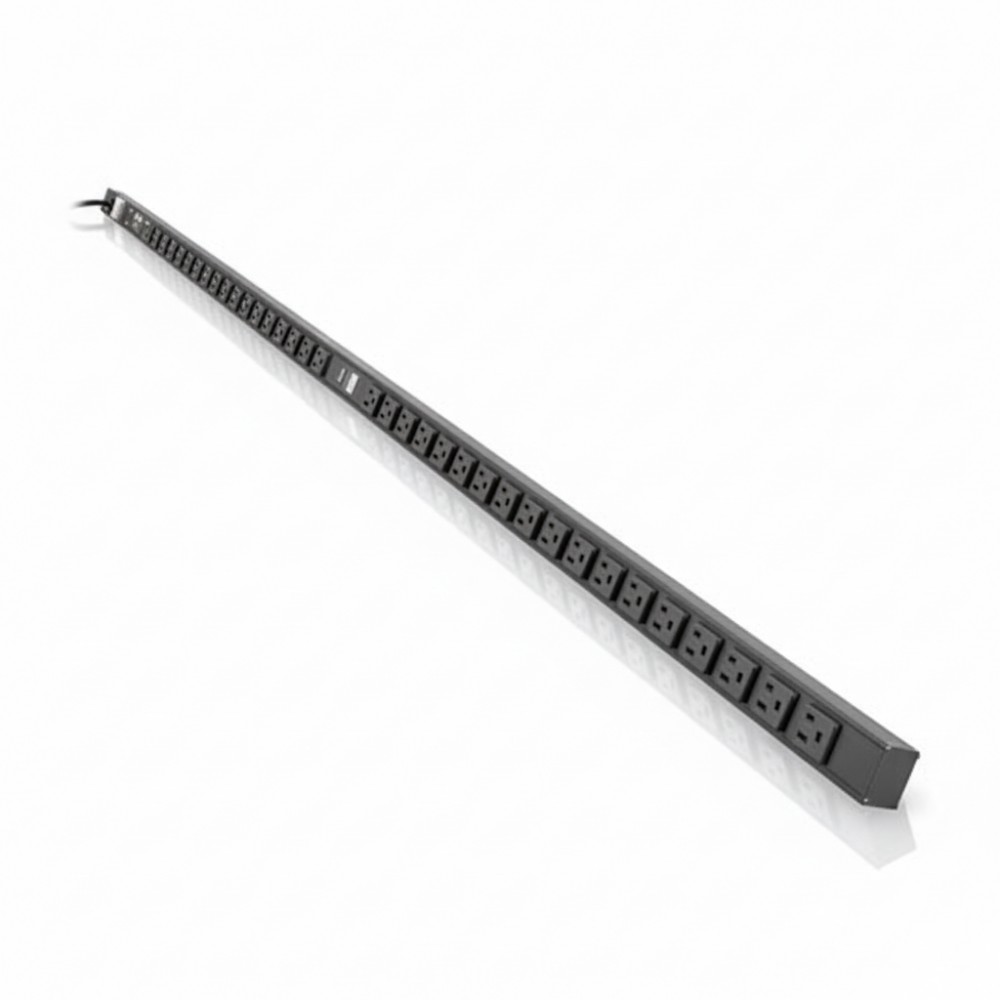

Eaton PDUMV15-72 - Metered 0U Vertical Rack PDU 120 V 36 Outlets
Overview
The Eaton PDUMV15-72 is a metered vertical power distribution unit (PDU) designed for straightforward AC distribution in rack installations where local load visibility and outlet density are required without consuming rack U space. Infrastructure engineers and data center technicians deploy this unit in wiring closets, network racks, and IT equipment cabinets to feed multiple devices from a single 120 V feed while monitoring total current draw to avoid overloads.
Electrically, this PDU supports single-phase 100-127 V AC with a NEMA 5-15P input plug on a 15 ft (4.57 m) power cord and distributes power to 36 NEMA 5-15R receptacles arranged along a 72-inch vertical chassis. A digital ammeter on the front panel reports real-time load current to assist in capacity planning and overload prevention.
Physically, the unit is a 0U vertical rack-mount form factor, enabling it to install along the uprights of a standard 19-inch EIA rack without occupying traditional rack U space. Included mounting hardware supports both tool-less vertical button mounting and bolt-down retention to organize cord routing and stabilize the unit in rack enclosures.
The PDUMV15-72 integrates with standard rack installations and UPS systems by providing measured distribution close to loads. Local metering helps facilities and operations teams ensure the connected load stays within the PDU's continuous rating and avoids nuisance tripping or derating events during maintenance or expansion.
In a typical deployment, this PDU feeds a bank of rack servers, switches, and storage appliances in a network closet, with the vertical layout maximizing receptacle accessibility while minimizing horizontal footprint. It is not suitable for environments requiring outlet-level switching, network management, or higher voltage (208/240 V) feeds; managed or switched PDUs should be selected in those cases.
Key Features
- 0U vertical rack PDU with 72 in (≈183 cm) height
- 36 × NEMA 5-15R 100-127 V outlets for dense device feeds
- Single-phase NEMA 5-15P input with 15 ft (4.57 m) power cord
- Built-in digital ammeter for real-time current load display
- Included vertical mounting hardware and cord retention brackets
Specifications
| Specification | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | PDUMV15-72 |
| Product Type | Metered Vertical Rack PDU |
| Input Voltage | 100-127 V AC |
| Phase | Single-phase |
| Rated Current | 15 A (derated to 12 A continuous) |
| Total Power Capacity | ~1.44 kW |
| Input Connection | NEMA 5-15P |
| Cord Length | 15 ft (4.57 m) |
| Output Receptacles | 36 × NEMA 5-15R |
| Load Monitoring | Digital ammeter (amps) |
| Overload Protection | 15 A circuit breaker |
| Form Factor | 0U vertical rack mount |
| Mounting Hardware | Vertical button mount + retention brackets |
| Material | Aluminum housing |
| Height | ~72.47 in (1841 mm) |
| Width | ~1.64 in (41.7 mm) |
| Depth | ~1.50 in (38.1 mm) |
| Weight | ~6.14 lb (2.79 kg) |
| Operating Temp | 32 °F to 104 °F (0 °C to 40 °C) |
| Certifications | UL 60950-1, CSA, RoHS, FCC Class A |
| Recommended Service | Single-phase 15 A, 120 V |
