Detailed Specifications
Eaton PDUMNV20HVLX - 3.7kW Monitored PDU
Overview

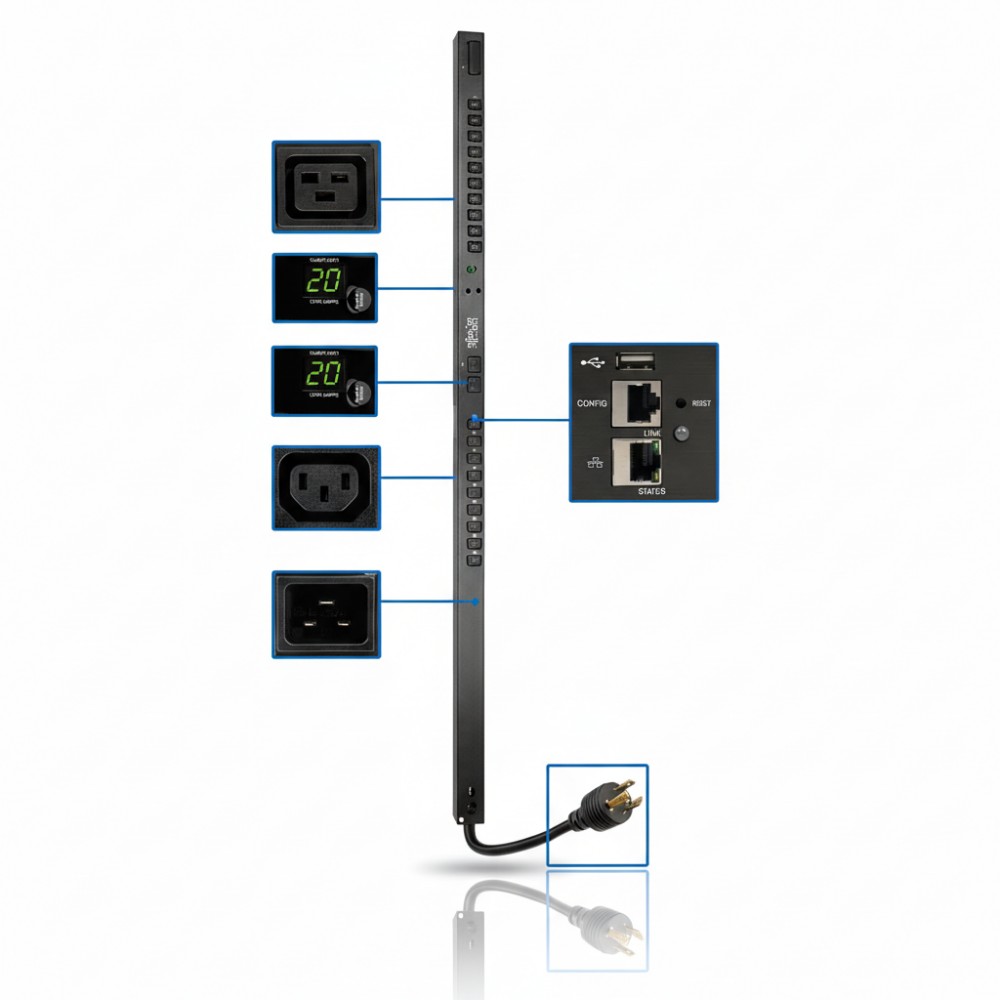

The Eaton Tripp Lite PDUMNV20HVLX is a 0U vertical rackmount Power Distribution Unit (PDU) designed to distribute and monitor single-phase AC power in IT and industrial environments. It features 24 outlets×20 C13 and 4 C19×with plug-lock insert sleeves to prevent accidental disconnections. The PDU supports a maximum capacity of 3.7kW at 208/230V and includes a detachable 10-foot (3.05 m) power cord with a NEMA L6-20P plug. Equipped with a built-in Java-free LX Platform interface, it allows for remote monitoring of voltage, frequency, and load levels via secure web browser, SNMP, telnet, or SSH. This PDU is suitable for deployment in data centers, server rooms, and other high-density rack environments.
Key Features :
Built-in LX Platform interface for remote monitoring
Digital ammeter for real-time load monitoring
Plug-lock insert sleeves to prevent accidental disconnections
Detachable 10-foot (3.05 m) NEMA L6-20P power cord included
0U vertical rackmount design for space-saving installation
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | PDUMNV20HVLX |
| Product Type | Monitored Vertical PDU |
| Input Voltage | 208/230V |
| Frequency | 50/60 Hz |
| Maximum Capacity | 20A |
| Agency-Derated Capacity | 16A |
| Output Outlets | 24 (20 C13, 4 C19) |
| Input Connector | C20 |
| Plug Type | NEMA L6-20P |
| Cord Length | 10 ft. (3.05 m) |
| Mounting Type | 0U Vertical Rack Mount |
| Height | 70 in. (1778 mm) |
| Width | 2.2 in. (56 mm) |
| Depth | 2.7 in. (67 mm) |
| Unit Weight | 8.5 lbs (3.86 kg) |
