Detailed Specifications

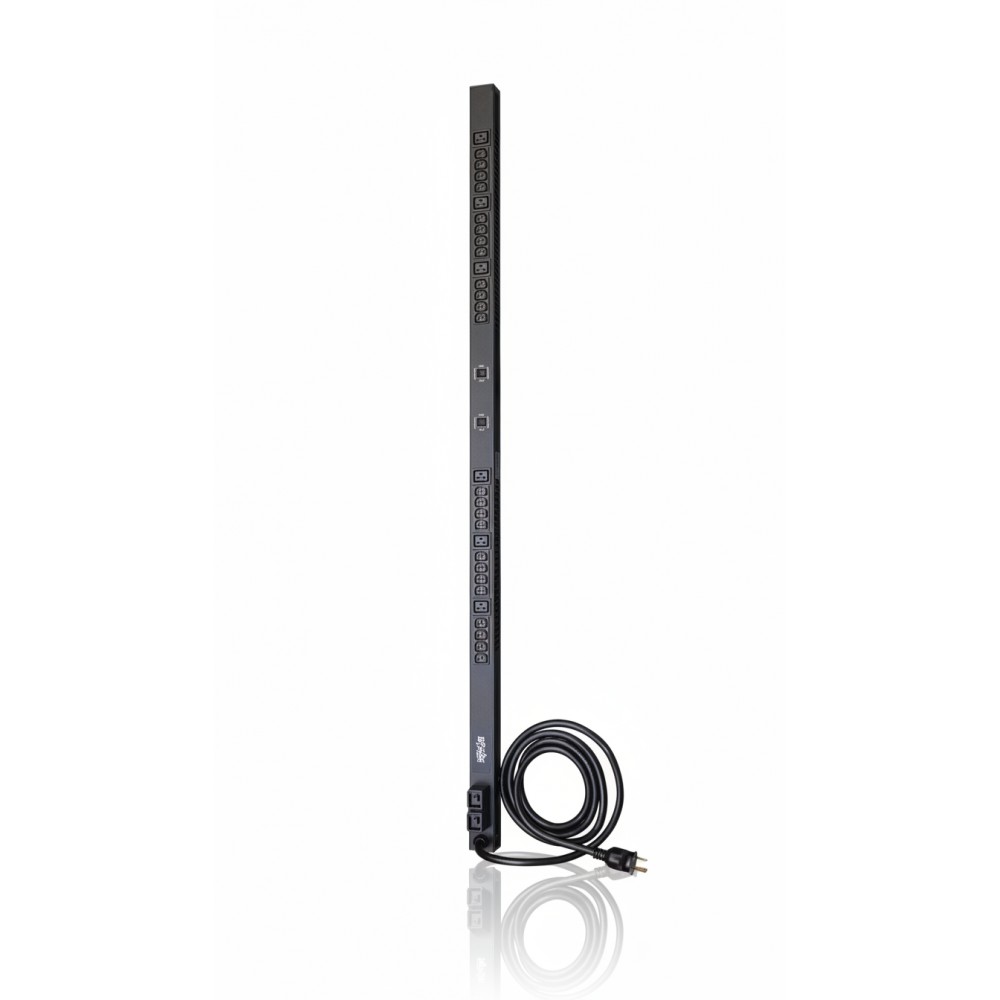

Eaton PDUMV30HV - Metered 208/240 V Vertical Rack PDU 30 A
Overview
The Eaton PDUMV30HV is a vertical mount, metered power distribution unit (PDU) engineered for high-voltage (208/240 V) rack-level AC distribution in data centers, server rooms, and networking closets. It's deployed by rack engineers and facilities teams when centralized power feeds must be distributed to multiple rack devices from a high-voltage single-phase service, with local current metering to verify load levels and prevent overloading.
This PDU provides single-phase 208/240 V AC power from a NEMA L6-30P, 30 A input with an attached 10 ft (3 m) power cord and distributes through 30 receptacles (24 C13 and 6 C19). Two integrated current meters report load in amps for each of two separately breakered load banks, aiding deployment verification and capacity planning during installation and service.
Physically, PDUMV30HV installs in a 0U vertical format (≈63.75 in/162 cm) in standard 19-inch racks, consuming no traditional rack unit space and accommodating dense rack loads. It is suited for wiring closets, core racks, or high-density server enclosures where outlets must be available across the vertical plane without horizontal real estate impact.
The unit integrates with rack cable management and UPS or generator power systems, supporting distribution from high-voltage UPS bypass or utility feeds. The included plug-lock inserts help keep connected equipment powered under vibration or during maintenance.
In typical deployments, PDUMV30HV is placed alongside servers and network gear in a 208/240 V rack distribution setup, with load bank metering used during commissioning to ensure power draw stays within the circuit design. It is not appropriate where outlet-level switching or remote network control is required; managed PDUs should be considered in those scenarios.
Key Features
- 0U vertical rack PDU for 208/240 V single-phase distribution
- NEMA L6-30P 30 A input with 10 ft (3 m) cord and plug
- 30 total outlets: 24× C13 and 6× C19
- Dual load bank metering reporting output current (amps)
- Two 15 A breakers protect separate outlet banks
Specifications
| Specification | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | PDUMV30HV |
| Product Type | Metered Vertical Rack PDU |
| Input Voltage | 200/208/240 V AC |
| Phase | Single-phase |
| Rated Current | 30 A (agency derated to 24 A continuous) |
| Input Connection | NEMA L6-30P |
| Cord Length | 10 ft (3 m) |
| Output Receptacles | 24× C13, 6× C19 |
| Load Banks | 2 banks with 15A breakers |
| Metering | Dual current meters (amps) |
| Form Factor | 0U vertical rack mount |
| Mounting | Toolless vertical button mount |
| Material | Metal housing |
| Dimensions (H×W×D) | 63.75 in × 3.75 in × 2.25 in (162 cm × 9.5 cm × 5.7 cm) |
| Weight | ~8 lb (3.6 kg) |
| Operating Temp | 0 °C to 40 °C |
| Humidity | 0-95 % non-condensing |
| Certifications | UL62368-1, RoHS |
| Plug-Lock Inserts | Included |
