Eaton EMI310-10 8 64 kW 3 Phase Vertical Metered Rack PDU

Eaton EMI310-10 8 64 kW 3 Phase Vertical Metered Rack PDU

Overview

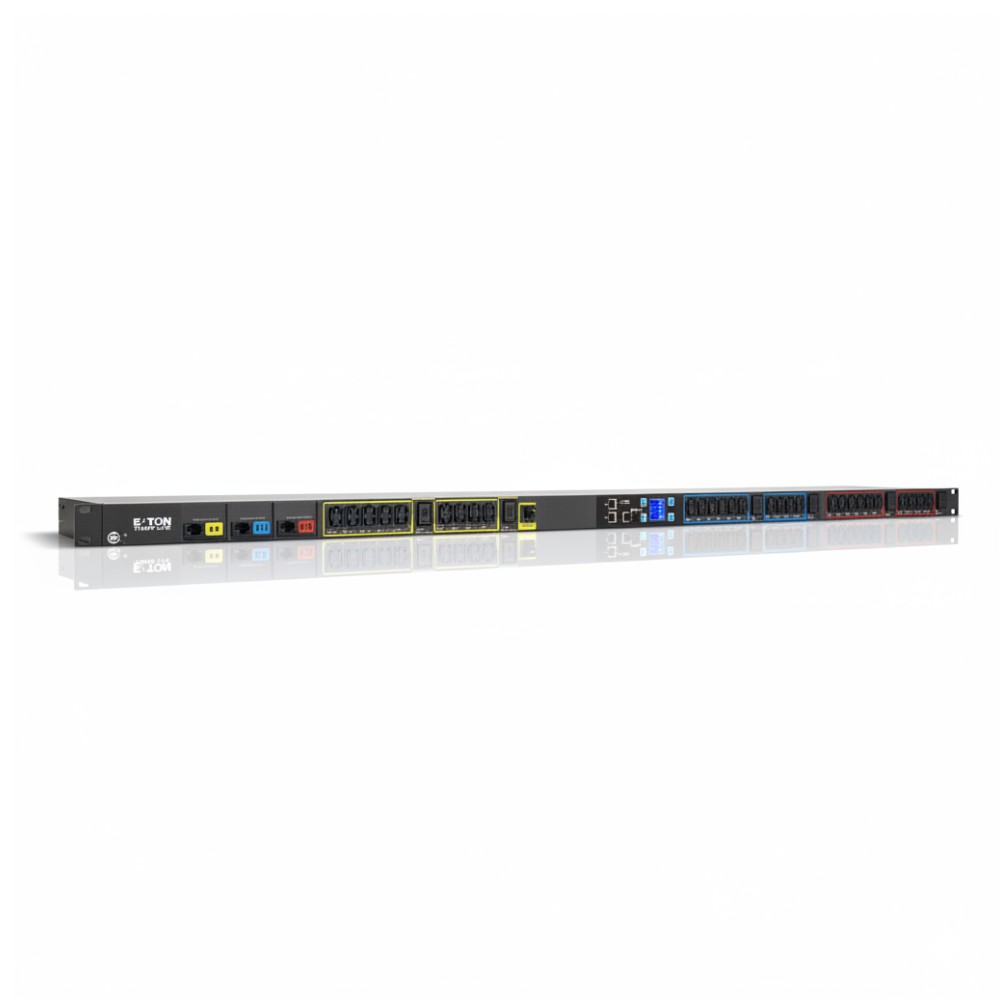

The Eaton EMI310-10 is a high-capacity, vertical-mount power distribution unit (PDU) engineered for three-phase rack environments where input monitoring and high outlet density are required. It accepts a 120/208 V input and is rated for 24 A continuous (≈ 8.64 kW), making it suitable for dense IT racks in data-centres or enterprise infrastructure.Installed in a 0U vertical form-factor, the unit mounts alongside or behind standard 19-inch racks without consuming device rack-units, preserving valuable space for active equipment. It provides a total of 37 outlets—comprising 30 IEC C13, 6 IEC C19 and 1 NEMA 5-20R—giving flexibility for mixed server, storage and networking loads. The cord is 10 ft long and terminated in a NEMA L21-30P input plug.Built-in metering displays include current, voltage, power and energy monitoring via the local LCD and optional network interface, enabling capacity planning, load-balancing and visibility into rack power usage. It’s designed for ambient conditions up to 60 °C, making it usable in high-density containment or network room zones.In practice, you’d select the EMI310-10 when you need a reliable metered PDU for a large rack with 3-phase supply, want to monitor load real-time and have a mix of device types. This model doesn’t provide outlet-level switching, so it’s best for applications where monitoring is key but remote outlet control is not mandatory.

Key Features

• Rated at 24 A input (120/208 V three-phase) enabling ~8.64 kW capacity in rack environments.

• Vertical 0U mount saves rack units and allows installation in tight or high-density racks.

• Total of 37 outlets (30 C13 + 6 C19 + 1 5-20R) supports diverse rack-mount devices from servers to storage.

• Built-in current/voltage/power/energy metering enables load monitoring and capacity planning across phases.

Technical Specifications
