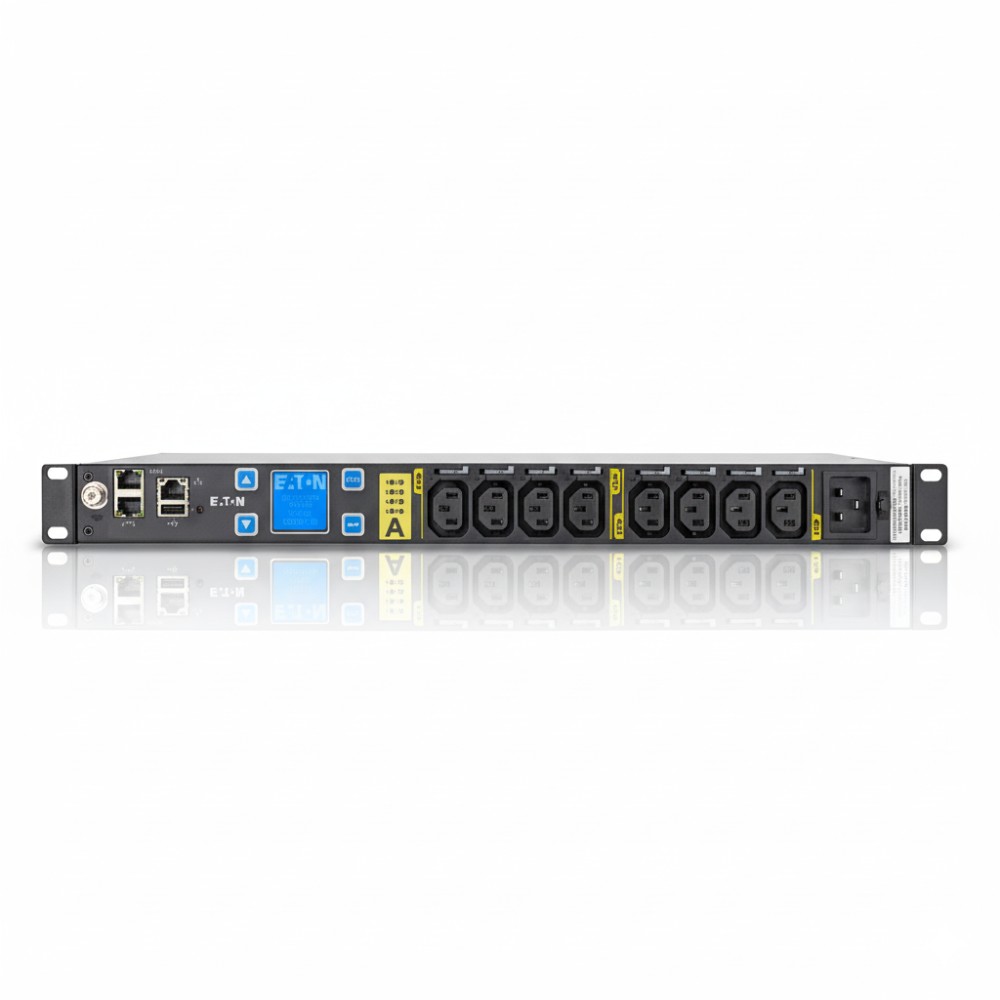

Eaton EMAT10-10 - Managed Rack PDU 200-240V 16A
Overview
The Eaton EMAT10-10 is a managed rack-mount Power Distribution Unit (PDU) designed to distribute AC power and provide remote monitoring and control in rack-based IT environments. It is typically deployed by data center operators, network engineers, and systems administrators where centralized control and visibility of power distribution improve uptime, load balancing, and energy management.
This PDU supports single-phase 200-240 V input with a 16 A rating and delivers up to 3.84 kW of power to connected equipment. It features a C20 inlet feeding eight IEC C13 receptacles, allowing connection of servers, switches, and other rack devices using standard IEC power leads.
The EMAT10-10 fits within a 1U horizontal rack footprint and is suited to IDF/MDF closets, colocation spaces, and enterprise racks requiring managed power distribution. Its size and layout keep rack-space use minimal while integrating neatly into 19-inch EIA-310 environments.
As a managed PDU, it includes network connectivity (e.g., Ethernet) and internal controls allowing remote measurement of voltage, current, and power factor, and the ability to switch outlets via management interfaces or Eaton's software platforms. This capability assists in remote power cycling and troubleshooting without physical access to the rack.
In practice, the EMAT10-10 is deployed downstream of UPS and facility power feeds to distribute conditioned, monitored power to mid-tier rack equipment. IT teams use its management features to enforce power policies, alert on threshold breaches, and perform remote circuit control during maintenance windows or fault conditions.
This unit is not suited for deployments requiring higher amperage (e.g., 30 A+ input) or where outlet-level load metering or switching must meet IEC C19 levels without adapters. It is also not appropriate for non-rack-standard power infrastructures (e.g., legacy NEMA racks).
Key Features
- Managed 1U rack PDU with remote power control
- 8 IEC 60320 C13 outlets for rack devices
- Single-phase 200-240 V, 16 A distribution
- IEC 60320 C20 inlet with 10 ft cord
- Network monitoring and outlet switching support
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | EMAT10-10 |
| Product Type | Managed Rack PDU |
| Form Factor | 1U horizontal rack mount |
| Input Voltage | 200-240 V AC |
| Input Current | 16 A |
| Power Capacity | 3.84 kW |
| Phase | Single-phase |
| Input Connector | IEC 60320 C20 |
| Output Connectors | (8) IEC 60320 C13 |
| Cord Length | 10 ft (3.05 m) |
| Frequency | 50/60 Hz |
| Network Interface | Ethernet (managed) |
| Indicators | LEDs for status and alerts |
| Operating Temperature | 0-60 °C |
| Rack Height | 1U |
| Mounting | Horizontal rack mount |
| Weight | ~6 lb |
| Compliance | UL Listed, RoHS |
| Warranty | 3 year |
