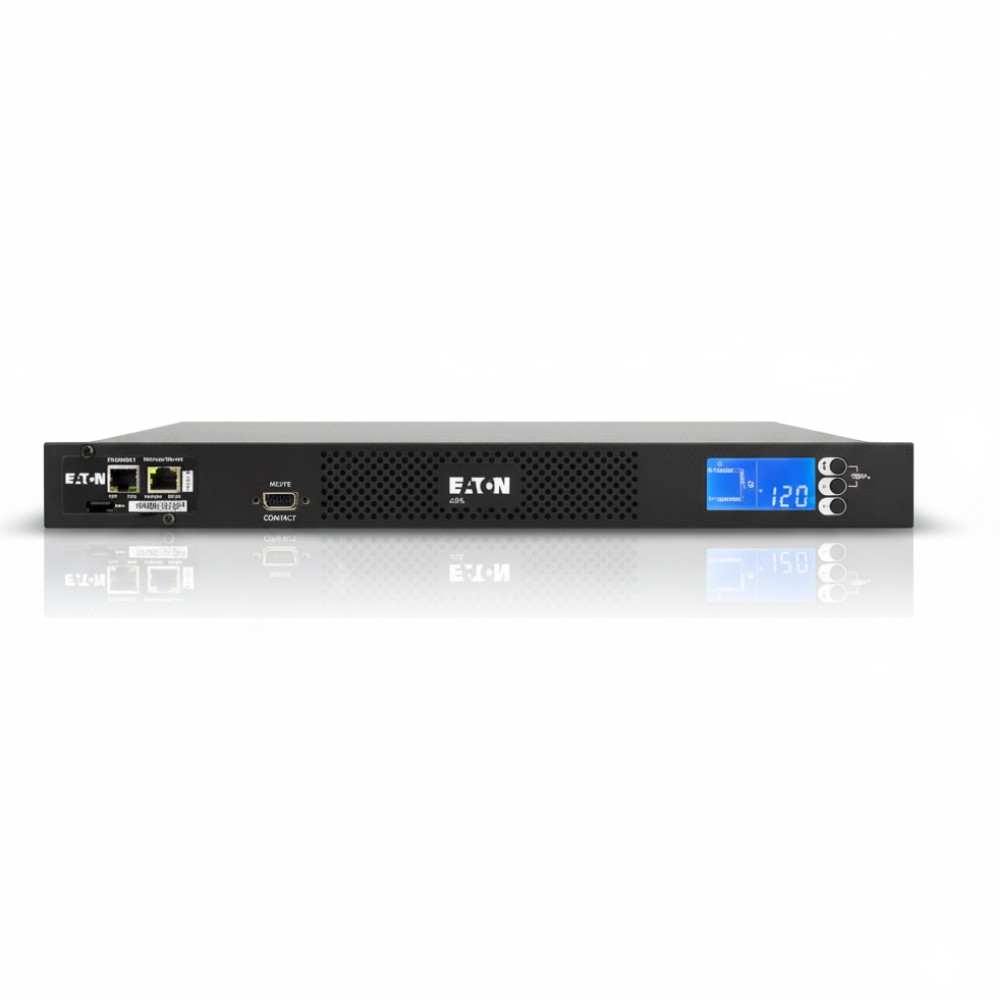

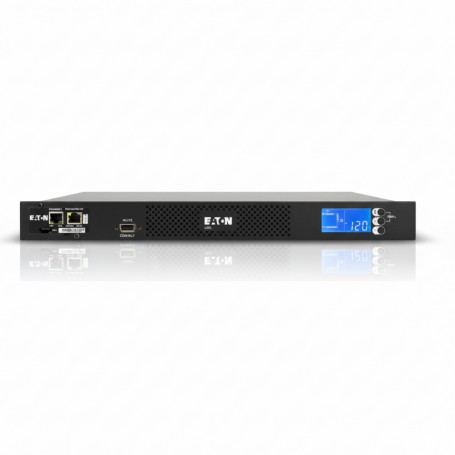

Eaton EATS115 Automatic Transfer Switch Rack PDU View larger

Eaton EATS115 Automatic Transfer Switch Rack PDU

EATS115

New

In Stock

Eaton EATS115 is a 1U rack-mount ATS PDU delivering dual 120 V inputs,
×




$1,015.00

Detailed Specifications

Eaton EATS115 Automatic Transfer Switch Rack PDU

Overview

The Eaton EATS115 is a 1U dual-input rack PDU with automatic transfer switch (ATS) functionality designed for redundant power feeds in server racks, branch-office IT closets, or edge data cabinets. It accepts two independent 120 V AC inputs and provides 10 outlets to feed critical equipment, automatically switching to the secondary feed in roughly 8–10 ms when the primary fails. It’s ideal for single-supply servers or network gear that need uninterrupted power via dual sources.

Key Features

  • Dual 120 V inputs (two NEMA 5-15P) ensure redundancy in case the primary feed fails.

  • Automatic transfer switch – switches to the backup feed in approximately 8–10 ms to maintain uptime.

  • Occupies only 1U of rack space (horizontal mount) while providing 10 NEMA 5-15R outlets.

  • Embedded network (Ethernet 10/100) and RS-232 interfaces enable remote monitoring and alerts.

  • Compact design with 1.7″ height, 17.25″ width, and 9.84″ depth for standard 19″ racks.

Specifications

SpecificationDetail
Brand Eaton
Part Number EATS115
Product Type ATS Rack PDU (Automatic Transfer Switch PDU)
Input Voltage 120 V AC
Input Configuration Dual NEMA 5-15P (two independent inputs)
Maximum Load/Wattage 1.44 kW
Input Current Rating 12 A
Output Receptacles (10) NEMA 5-15R
Mounting / Form Factor 1U horizontal rack-mount
Dimensions (H × W × D) 1.7 in × 17.25 in × 9.84 in
Weight 11.9 lb
Network Interface Ethernet 10/100 Mbps, RS-232
Frequency Rating 50–60 Hz
Color Black
Warranty 3-year limited warranty
Certifications UL Listed
