Detailed Specifications

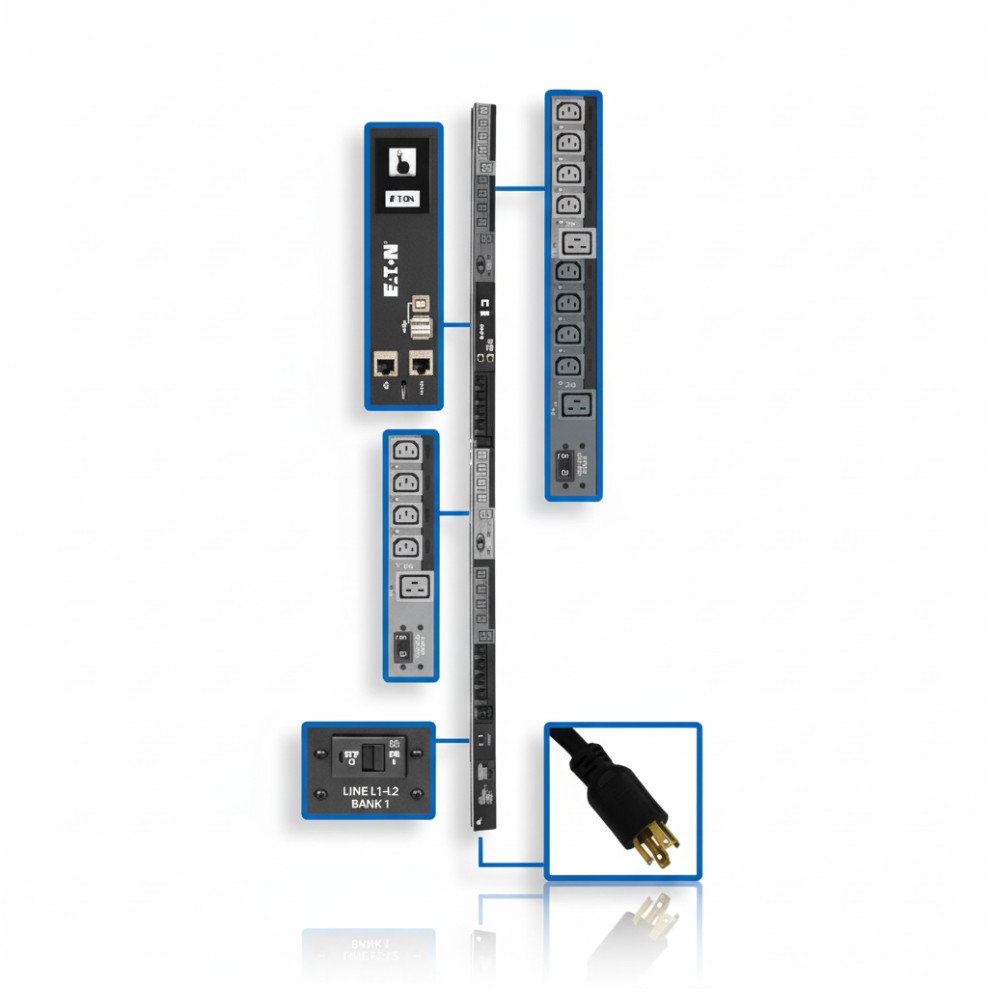

Eaton PDUMV30HVNETLX - Switched 0U Rack Power Distribution Unit
Overview
The Eaton PDUMV30HVNETLX is a switched rack power distribution unit (PDU) designed for high-density single-phase 208/230 V AC IT deployments. It is deployed by data center infrastructure, network engineering, and facilities teams that require remote outlet control and networked management of rack power feeds for servers, storage, and networking devices. This is not a UPS × it distributes AC power while enabling per-outlet switching and monitored load segmentation.
This PDU's vertical 0U form factor mounts alongside the rack frame, conserving usable rack units for IT equipment. Powered from a NEMA L6-30P input and rated at 24 A (5.5 kW @ 230 V, 5.0 kW @ 208 V), it delivers (20) IEC C13 and (4) IEC C19 outlets with individually switchable circuits via its LX Platform interface.
The integrated LX Platform network interface provides remote access through an HTML5 web UI and supports standard protocols (HTTP/S, SNMPv1-v3, SSH, Telnet, etc.) for monitoring, switching, and alerting via existing management networks. A digital ammeter offers load visibility across output banks to maintain balanced loading and avoid overloads.
This PDU fits in standard data closets, colocation racks, and enterprise cabinets where remote power sequencing and controlled rebooting are required. It should not be used where basic unmanaged PDUs suffice or in 120 V IT environments without appropriate infrastructure, as its architecture and ratings assume high-voltage AC installation.
Key Features
- 0U vertical switched rack PDU with network-managed outlet control
- NEMA L6-30P input, single-phase 208/230 V at 24 A (~5.5 kW)
- (20) IEC C13 + (4) IEC C19 switchable outlets
- LX Platform web UI with SNMP, SSH, Telnet remote control
- Digital ammeter for per-bank load monitoring and alerts
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | PDUMV30HVNETLX |
| Product Type | Switched Rack PDU |
| Form factor | 0U vertical |
| Input voltage | 208 V / 230 V AC |
| Phase | Single-phase |
| Input connection | NEMA L6-30P |
| Amperage rating | 24 A (agency de-rated) |
| Maximum output power | 5.5 kW @ 230 V; 5.0 kW @ 208 V |
| Output receptacles | 20 × IEC C13; 4 × IEC C19 |
| Cord length | 10 ft |
| Network interface | RJ-45 (10/100 Mbps) |
| Supported protocols | HTTP, HTTPS, SNMPv1-v3, SSH, Telnet, FTP, DHCP, NTP |
| Load metering | Digital ammeter (bank & total) |
| Mounting orientation | Vertical (0U) |
| Dimensions (H×W×D) | ~70 in × ~2.19 in × ~2.65 in |
| Weight | ~11.5 lb |
| Operating temperature | 0 °C to 40 °C |
| Certifications | RoHS, FCC Class A, TAA Compliant |
