Eaton EMI104-10 Input Rack PDU 5 76 kW ma 200 240V

Eaton EMI104-10 Input Rack PDU 5 76 kW ma 200 240V

Overview

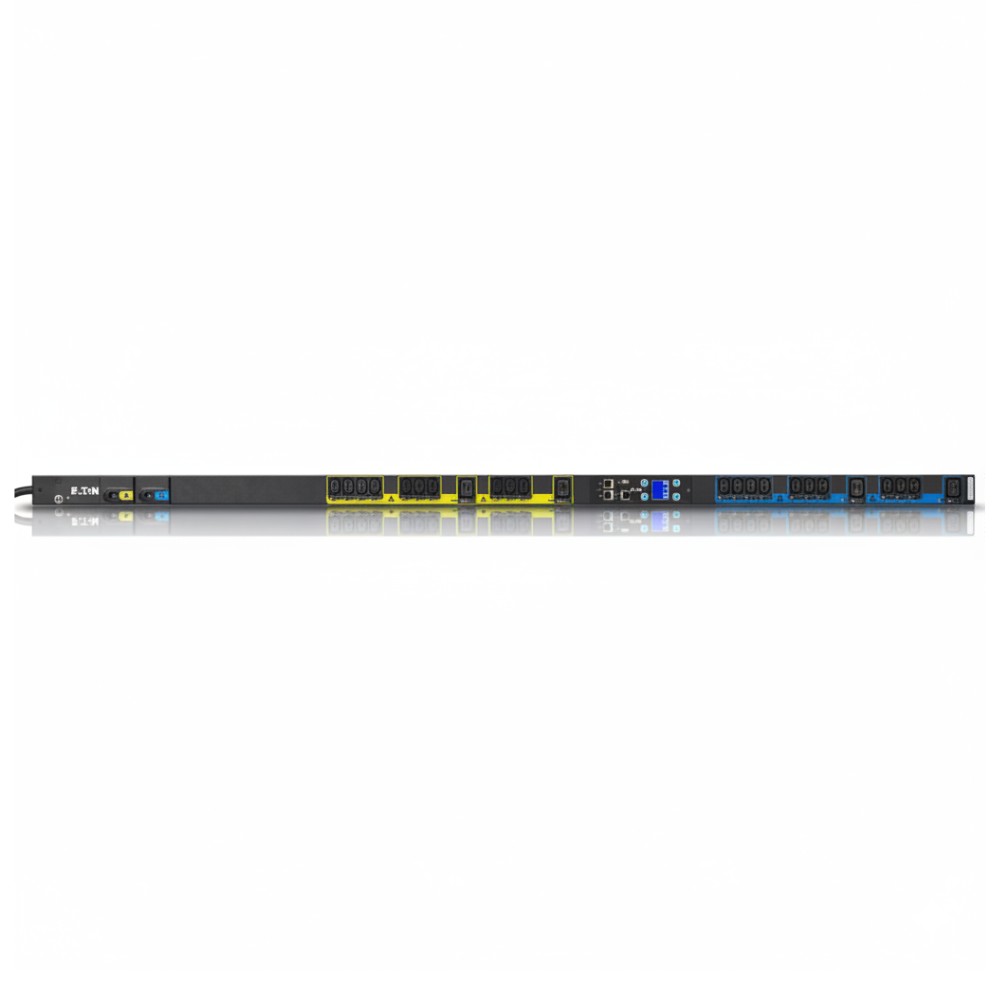

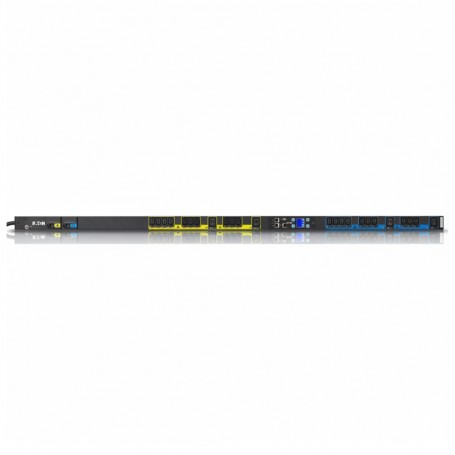

The Eaton EMI104-10 is a vertical 0U rack mount metered PDU designed for data centres and high-density IT racks. It supports a single-phase input of 200-240 V at 24 A (5.76 kW max) and provides 42 outlets (36 × C13 + 6 × C19), making it suitable for distributing power to servers, switches and storage arrays in a 19-inch rack. The unit features a 10 ft cord, L6-30P input plug, built-in metering via LCD display and network/serial interfaces for remote monitoring. It mounts vertically to the rack frame (0U footprint), preserves usable rack space and is engineered for use in full-height racks, equipment rooms and network closets.

Key Features

• Provides 5.76 kW / 24 A input capacity for dense rack-power deployments.

• Offers 42 outlets (36 × IEC C13 + 6 × IEC C19) to support mixed server and networking loads.

• Vertical 0U form factor mounts alongside rack posts to save space in high-density environments.

• Built-in metering with ±1 % billing-grade accuracy, visible on local LCD and via Ethernet/RS-232 for remote monitoring.

• Rated for 0 °C to 60 °C (32 °F to 140 °F) operating range, suitable for hot-aisle containment or demanding rack environments.
