Detailed Specifications

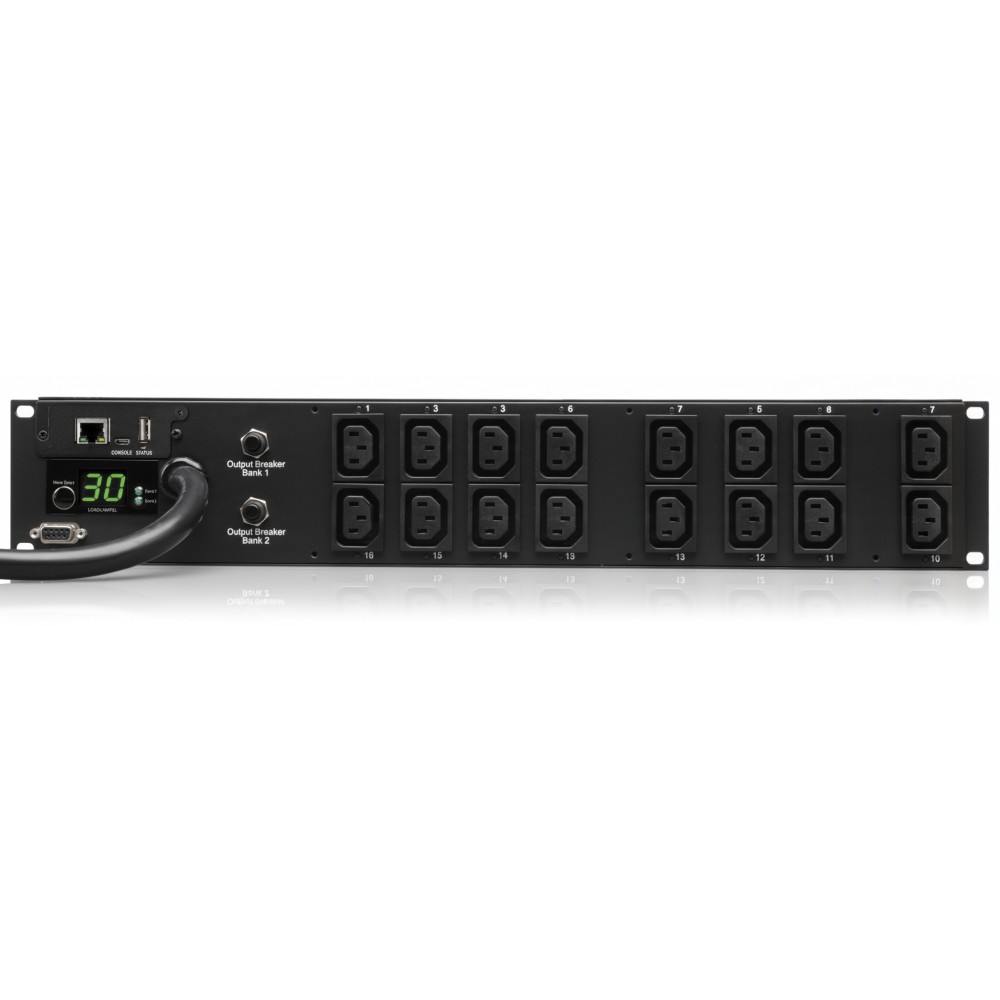

Eaton Tripp Lite PDUMH30HVNET - Switched Single-Phase PDU
Overview :
The PDUMH30HVNET is a switched single-phase rack-mount power distribution unit designed for IT infrastructure and data-centre engineers to remotely control and monitor connected loads. It supports 208/230 V AC input and offers individually controllable outlets via a built-in network interface. The unit fits into a 2U horizontal rack space and is intended for medium-density deployments in racks or network cabinets. It integrates with standard rack environments using an L6-30P input plug and a 12 ft (3.66 m) cord, enabling deployment in data-centre or edge-rack installations.
Key Features :
208/230 V single-phase input via NEMA L6-30P plug
16 individually switched IEC C13 outlets arranged in two banks
Built-in LX platform network card for remote monitoring/control
Real-time ampere display per bank and total PDU load
Specifications :
| Specification | Value |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number | PDUMH30HVNET |
| Product Type | Switched Rack PDU (Single-Phase) |
| Input Voltage | 208; 230 V AC |
| Recommended Service | Single-phase 30 A 208/230 V service |
| Maximum Input Amps | 24 A (agency de-rated from 30 A) |
| Input Plug Type | NEMA L6-30P |
| Input Cord Length | 12 ft (3.66 m) |
| Output Capacity | 5.5 kW @230 V / 5.0 kW @208 V |
| Output Receptacles | 16 × IEC C13 |
| Load Bank Protection | Two 15 A breakers protect eight outlets each |
| Rack Height | 2U |
| Operating Frequency | 50/60 Hz |
| Mounting Orientation | Horizontal (2U rackmount) |
