Detailed Specifications

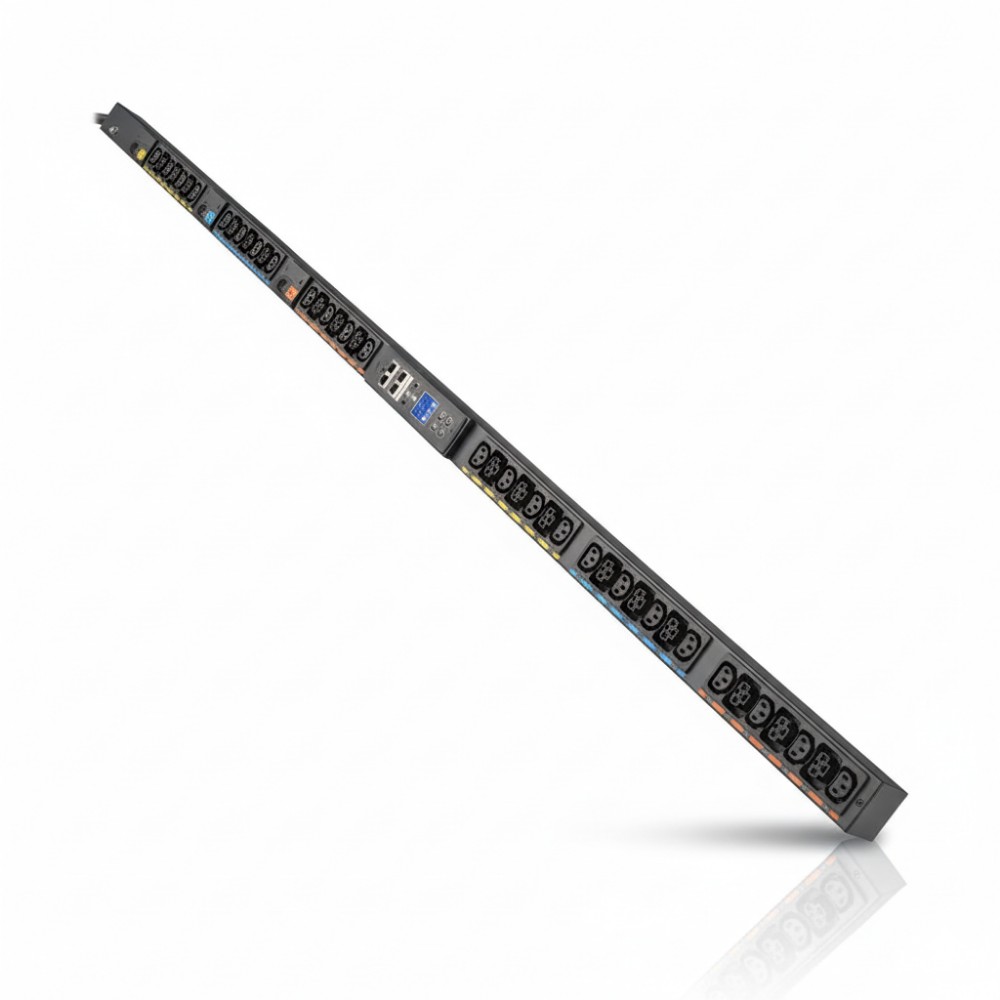

Eaton PDU3EVSR1L1530 - 3-Phase Managed Rack PDU 36-Outlet
Overview
The Eaton PDU3EVSR1L1530 is a full-featured three-phase managed power distribution unit (PDU) built for data-centre racks and high-density IT deployments. It's designed to operate on a 200-240 V three-phase service with a NEMA L15-30P input plug and carries a full rated capacity of 8.6 kW at up to 24 A.With 36 individually-controllable outlets×30 IEC C13 and 6 IEC C19×this PDU gives you outlet-level remote management so you can turn on/off or reboot equipment without physical accessIts 0 U vertical mounting profile (≈70″/1.8 m height), color touchscreen LCD panel, built-in gigabit network interface for SNMP/remote monitoring and advanced features like IsoBreaker' per-outlet surge/isolation, make it ideal for modern data-centre racks where uptime, visibility and space-efficiency matter. In practice, use this unit to feed a densely packed rack of servers, storage shelves and network gear where you need remote power insight, outlet-level control (for maintenance or rebooting locked devices) and full three-phase distribution for cleaner load balancing and high efficiency.It fits into standard 19″ rack environments, mounts vertically alongside equipment, and integrates with environmental sensors (via optional module) for temperature/humidity monitoring when paired with Eaton's PowerAlert software suite.
Key Features
8.6 kW (200-240 V three-phase) capacity supports high-density rack loads without oversizing legacy single-phase PDUs.
36 outlets (30 C13 + 6 C19) each individually controllable and monitored×enables remote reboot and power isolation at device-level.
IsoBreaker' technology isolates outlet-level surges or overloads so only the impacted outlet trips instead of shutting down entire bank
Built-in gigabit network interface, touchscreen LCD and full remote power monitoring (incl. THDv waveform capture) for pro-level data-centre power management.
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | PDU3EVSR1L1530 |
| Product Type | Managed Rack PDU (3-phase) |
| Key Specification | 8.6 kW output capacity (200-240 V) |
| Key Specification | 36 outlets (30 IEC C13 + 6 IEC C19) |
| Key Specification | NEMA L15-30P input (3-phase), 24 A max input |
| Management | Gigabit network card, LCD touchscreen, outlet-level control |
| Power Requirements | Input: 200-240 V three-phase, 24 A max |
| Dimensions & Weight | 70″ H × 2.17″ W × 3.11″ D (≈ 1778 mm × 55 mm × 79 mm); ~18.52 lb (8.4 kg) |
