Detailed Specifications
APC APDU10452ME NetShelter Advanced 17.3kW 3-Phase PDU
Overview

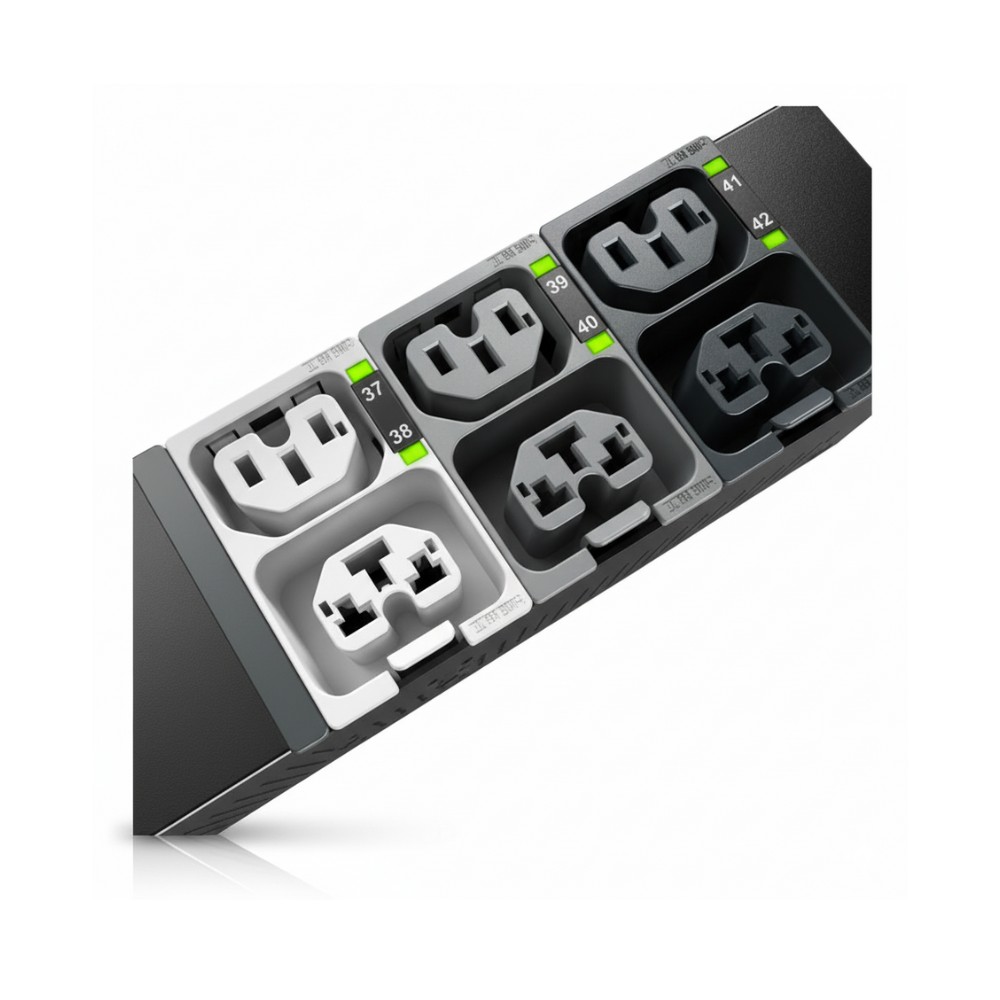

The APC APDU10452ME is a metered rack power distribution unit designed for high-density 3-phase IT racks and data center power management. It provides 42 outlets with a mix of 4-in-1 combination receptacles and standard IEC outlets, enabling deployment flexibility for various equipment types. The unit includes integrated power metering with 1 % accuracy and a local display for real-time monitoring of volts, amps, kW and kWh metrics. It mounts vertically in a 0 U profile and supports networked monitoring and cascading via dual Ethernet ports for remote access and redundancy.
Key Features
42 AC outlets with mixed IEC receptacles for flexibility
17.3 kW capacity at 208 V three-phase power
Real-time metering with 1 % accuracy
Dual Ethernet for network management and cascading
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC |
| Part Number | APDU10452ME |
| Product Type | Metered Rack PDU |
| PDU Type | Metered, Advanced |
| Input Voltage | 208 V AC three-phase |
| Input Voltage Range | 200-240 V AC |
| Output Voltage | 208 V AC |
| Maximum Load Capacity | 17.3 kW (17,300 VA) |
| Input Current | 60 A |
| Input Connector | IEC 60309 60A 3P+PE |
| AC Outlet Count | 42 outlets (21 × combo, 21 × standard) |
| Outlet Types | IEC 60320 C13/C15/C19/C21 combination |
| Network Interface | Dual Ethernet (1 Gb and 10/100) |
| Metering Accuracy | ±1 % |
| Mounting | 0U vertical rack mount |
| Dimensions (H×W×D) | 70.08″×2.20″×2.95″ |
| Weight | 23.6 lb (10.7 kg) |
