Detailed Specifications

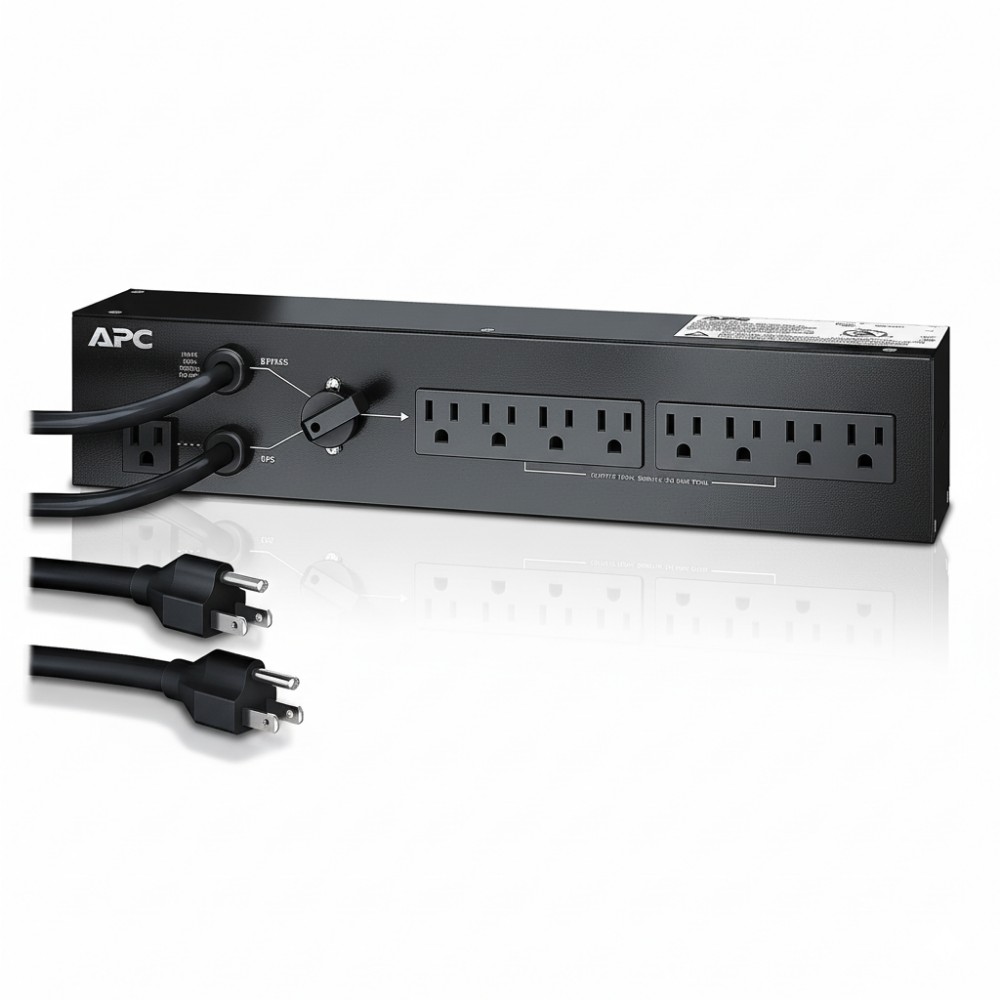

APC SBP1500RM 120 V Service Bypass PDU with 8 Outlets
Overview
The APC SBP1500RM is a rack-mount service bypass power distribution unit (PDU) designed to support APC Smart-UPS and InfraStruXure UPS systems by providing a means to transfer loads and maintain continuity during UPS maintenance or replacement. It distributes AC power through eight NEMA 5-15R receptacles while isolating the UPS from the critical load during service bypass operations.
Engineered for server rooms, data centers, and network closets, this 2U PDU simplifies maintenance workflows and reduces downtime risk by allowing seamless load routing around UPS units. It is not intended as a primary UPS or as a managed/switched PDU.
Key Features
- 8 NEMA 5-15R outlets for critical load distribution
- 120 V service bypass panel design
- Rack-mountable 2U form factor
- Overload protection for connected equipment
- Includes rack mounting brackets
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | SBP1500RM |
| Product Type | Service Bypass PDU |
| Output Voltage | 120 V AC |
| Input Voltage | 120 V AC |
| Rated Current | 15 A |
| Load Capacity | 1500 VA |
| Outlets | 8 × NEMA 5-15R |
| Input Connector | NEMA 5-15P |
| Cord Length | ~8 ft (2.44 m) |
| Mounting | 2U rack mount |
| Overload Protection | Yes |
| Frequency | 50/60 Hz |
| Operating Temp | 0 °C to 40 °C |
| Operating Humidity | 0-95 % |
| Certifications | TÜV, RoHS compliant |
