Detailed Specifications
APC APDU10452SW - Switched 3-Phase PDU 208 V 60 A
Overview

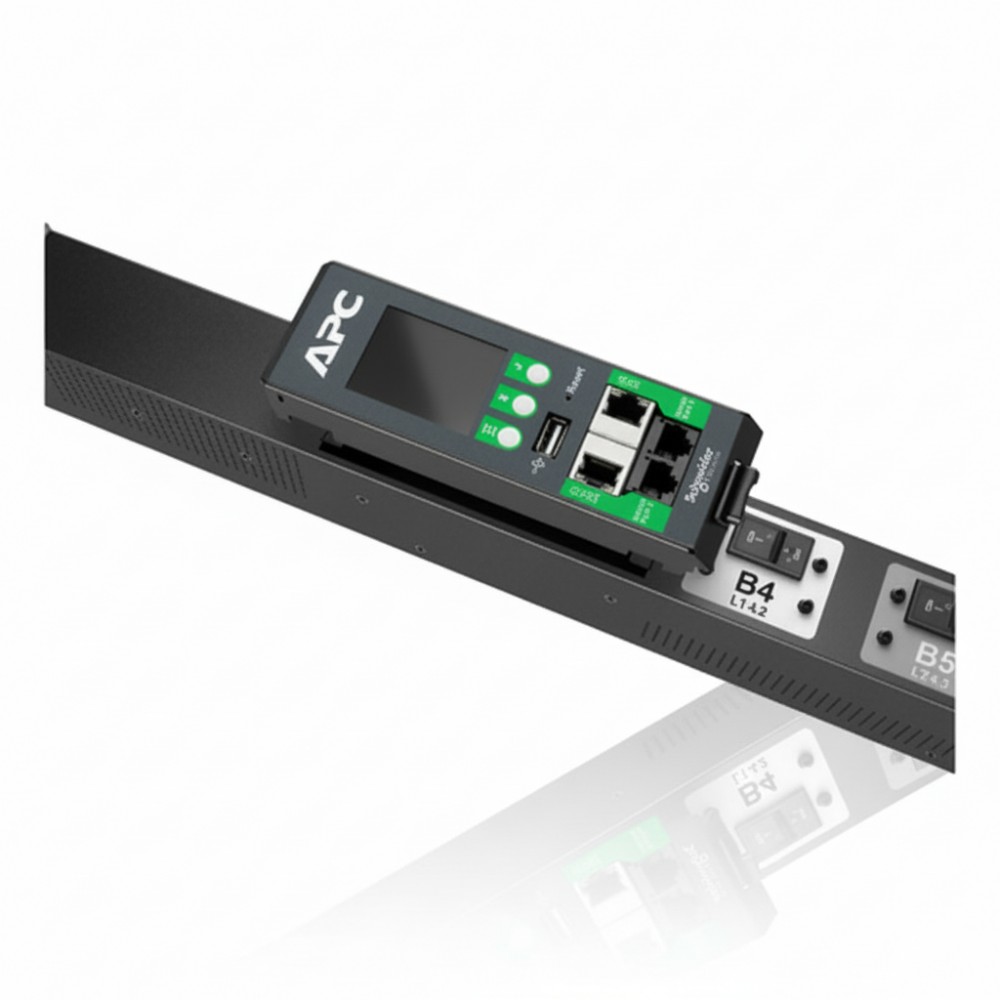

APC APDU10452SW is a switched power distribution unit (PDU) engineered for high-density rack environments that require remote outlet control and detailed power metering. It is used by data center infrastructure teams and rack technicians to distribute three-phase power and locally manage power states via network interfaces.
This unit is designed for three-phase input with a 208 V nominal supply and 60 A rating. It delivers up to ~17.3 kW (17,300 VA) of total load capacity and supports a high outlet count with a mix of combination receptacles to accommodate varied plug types. Integrated interactive LCD display and network interfaces provide real-time measurement data for volts, amps, kW, and kWh.
APDU10452SW is a vertical-mounted, 0 U rack installation unit that installs alongside rack rails without consuming standard U-space. Its form factor suits dense server and network rack deployments where space efficiency and comprehensive power management are priorities.
Network connectivity includes gigabit Ethernet plus additional cascading/redundancy ports, enabling remote switching of outlets and continued communication if primary network power is lost. Live-swap network management card capability allows field replacement of the management module without interrupting load outputs.
This model is not suited for simple unmanaged power distribution scenarios where remote metering and outlet control are unnecessary, as it is designed specifically for advanced monitoring and control in multi-phase rack infrastructures.
Key Features
0 U vertical rack design for side installation
Switched outlets with remote on/off control
42 total outlets with combination C13/C15/C19/C21 types
Network management with gigabit Ethernet + cascading ports
Interactive LCD with real-time power metering
Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | APDU10452SW |
| Product Type | Switched Rack Power Distribution Unit (PDU) |
| Input Voltage | 208 V AC (three phase) |
| Rated Input Current | 60 A |
| Total Load Capacity | ~17.3 kW (17,300 VA) |
| Input Connector | IEC 60309 60 A 3P+PE |
| Output Voltage | 208 V AC |
| Outlet Count & Type | 42 total: 21 × IEC 60320 C13/C15/C19/C21, 21 × IEC 60320 C13/C15 |
| Mount Type | 0 U vertical alongside rack |
| Cord Length | ~5.9 ft (1.8 m) |
| Dimensions (H×W×D) | ~71.9″ × 2.2″ × 3.0″ (1826 × 56 × 75 mm) |
| Weight | ~24.5 lb (11.1 kg) |
| Network Interface | Gigabit Ethernet + 10/100 (cascading/redundancy) |
| Display | Interactive LCD power data |
| Metering Accuracy | ~1 % |
| Operating Temp | Up to ~60 °C |
| Environmental Sensor Ports | 2 (optional sensors) |
| Certifications | TAA Compliant, RoHS, REACH |
