APC AP6031A – Rack PDU 30 A 208 V 4 C19

Overview

APC AP6031A is a basic power distribution unit (PDU) designed to deliver fixed AC power from a single circuit branch to multiple IT devices within rack systems. It is deployed by rack technicians, server room engineers, and facilities teams to distribute upstream power to connected networking, compute, or storage equipment. Verified specifications indicate a 30 A nameplate input and 208 V nominal output with standard safety provisions.

The unit accepts a single‑phase input via a NEMA L6‑30P power cord and supports nominal 200 V – 240 V AC input at 50/60 Hz. Electrical design is basic distribution only, without remote management or metering, and protections are limited to integrated overcurrent breakers. Verified load capacity is in the ~5 kVA range under full input current.

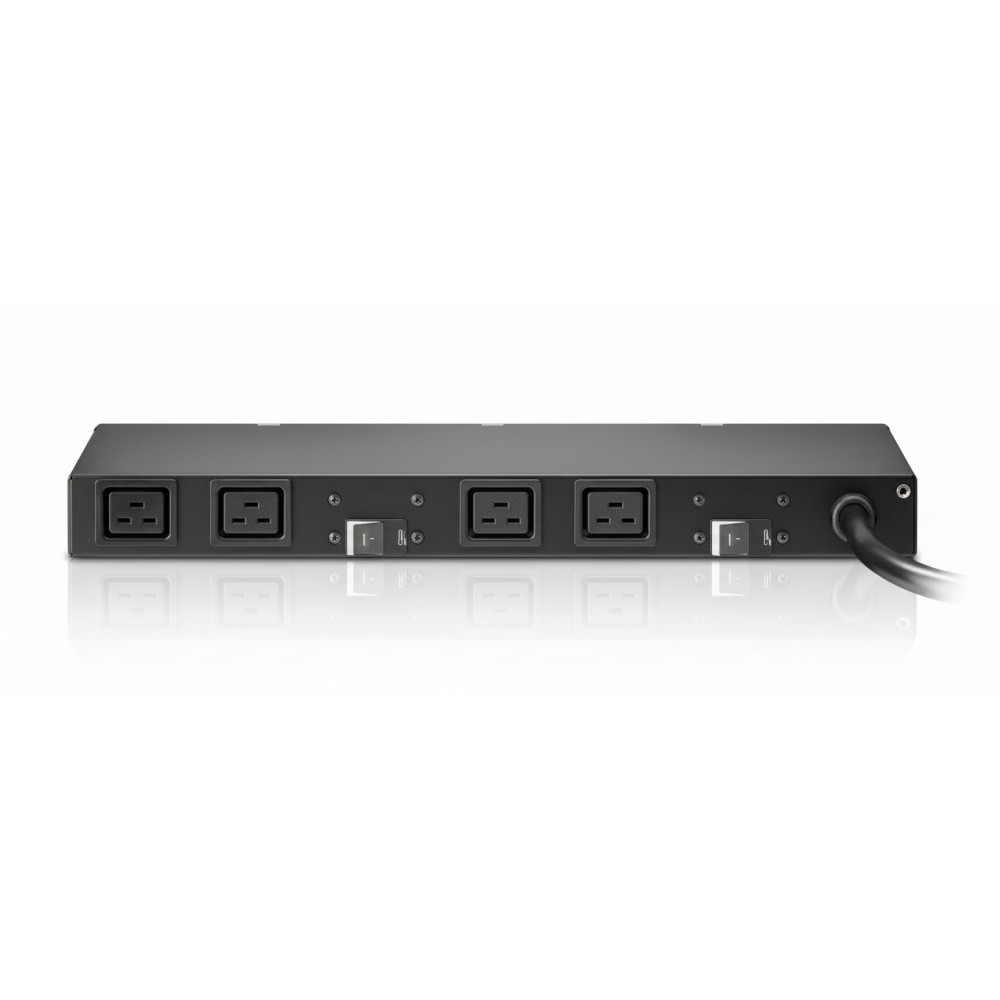

Physically, AP6031A is provided in a 1U rack form factor that can be mounted horizontally within a 19″ equipment rack. A 3.65 m (≈ 12 ft) integrated power cord with the NEMA L6‑30P plug enables flexible connection to upstream sources in typical North American rack layouts.

This PDU provides four IEC 60320 C19 outlets, supporting higher current loads from individual downstream devices compared to multiple C13 variants. It is targeted at basic AC distribution scenarios where centralized, non‑managed power delivery is acceptable.

AP6031A is not intended for environments that require networked power control, per‑outlet metering, or sequencing. Its simple design is limited to fundamental power delivery and basic overload protection without any management interface. Verified documentation does not identify network connectivity or monitoring features.

Key Features

• 1U rack mount form factor (horizontal)

• NEMA L6‑30P input, 30 A 200‑240 V AC

• (4) IEC 60320 C19 high‑current outlets

• Integrated 3.65 m (≈ 12 ft) power cord

• Overcurrent protection via internal breakers

Specifications
