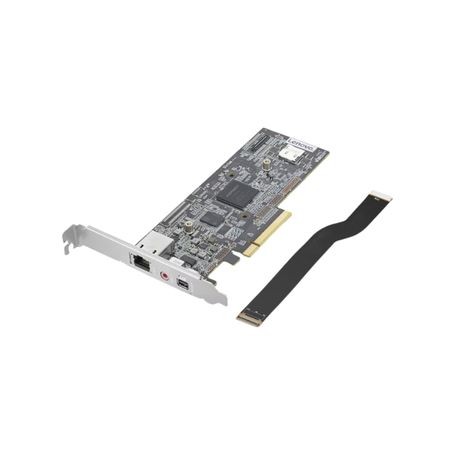

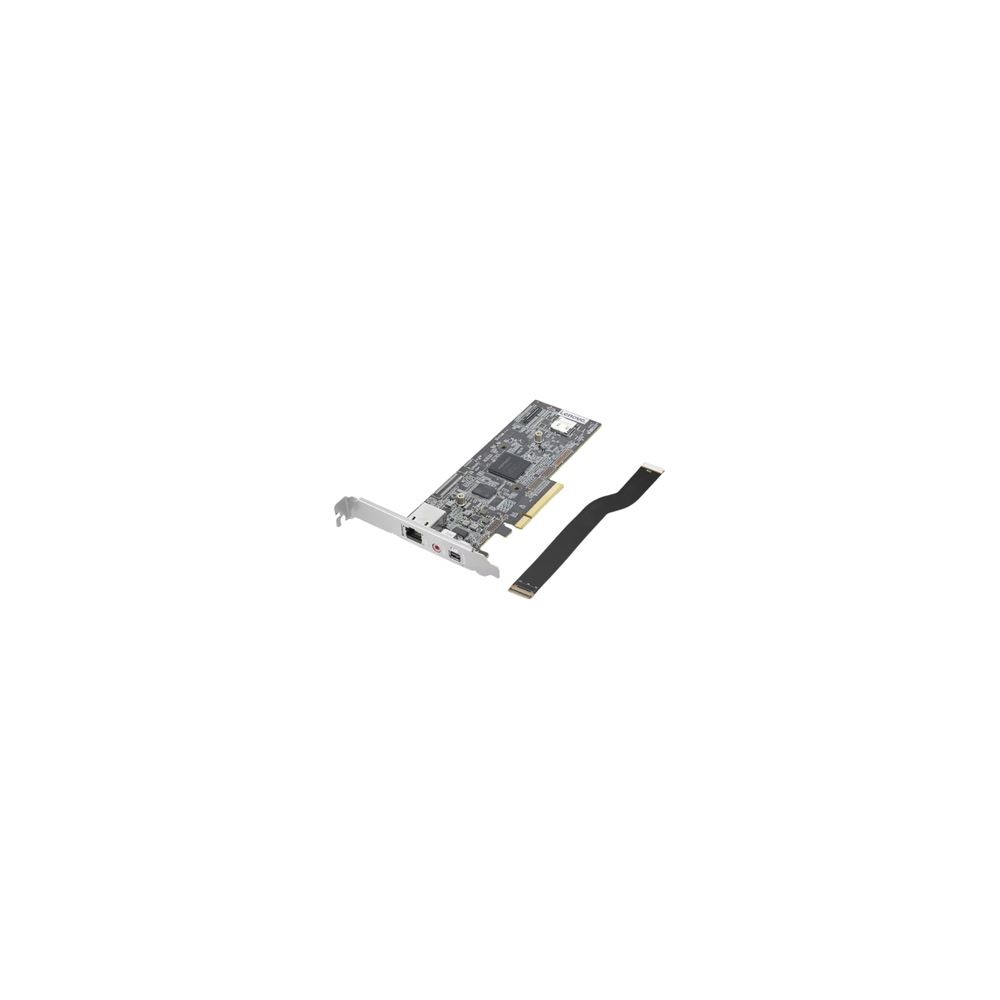

Lenovo 4XH1Q60514 - ThinkStation BMC PCIe Adapter for Out-of-Band Management

Overview

The Lenovo 4XH1Q60514 is a specialized Baseboard Management Controller (BMC) PCIe adapter designed for high-performance ThinkStation P5, P7, and P8 workstations. It provides an independent service processor that enables systems administrators to monitor the physical health of the hardware via sensors, regardless of the operating system state. This card is a critical component for enterprise IT environments where maximum uptime and remote hardware oversight are non-negotiable.

Technically, the adapter provides out-of-band management capabilities, allowing for remote power control, hardware health monitoring, and system configuration. It features a dedicated 1Gb Ethernet port for management traffic and a DisplayPort for remote console redirection. Operating independently of the host CPU, it ensures that IT teams can perform diagnostics and recovery even if the primary OS is unresponsive or the system is powered down but still connected to an AC source.

Deployment is targeted at mission-critical workstation environments, such as engineering firms, financial labs, and media production houses. The card installs into a standard PCIe slot and utilizes a dedicated management cable (included) to interface with the motherboard's management headers. It is specifically validated for the ThinkStation P-series "PX" architecture and should not be used in standard consumer-grade desktops that lack the appropriate onboard BMC headers.

Key Features

• Enables out-of-band management for remote IT support and recovery

• Monitors physical system health via independent sensor communication

• Reduces on-site maintenance costs through remote power cycling

• Independent 1Gb Ethernet port for dedicated management traffic

• Supports remote console redirection via integrated DisplayPort

Technical Specifications
