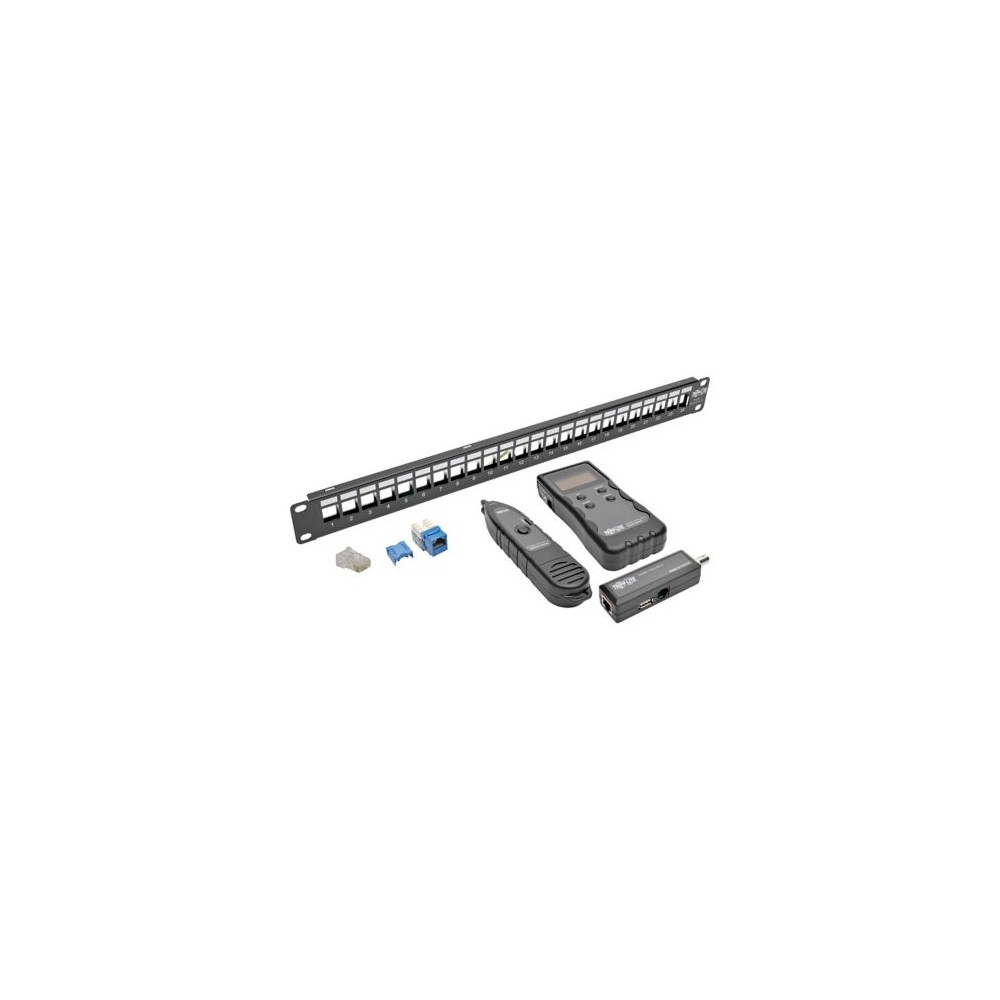

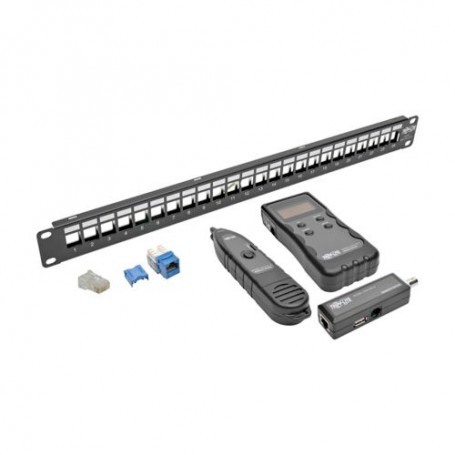

The Eaton Tripp Lite N062-024-KJ-SH is a 24-port, 1U rack-mount shielded blank keystone/multimedia patch panel designed to organize modular connections in network and multimedia installations. Its 24 blank cutouts accept compatible keystone jacks for applications including RJ45 Ethernet, HDMI, USB 2.0 and other modular connections.
Rack-Mount Design and Cable Management
The panel mounts in 1U of an EIA-standard 19-inch two-post rack or wall-mount rack enclosure. A rear cable manager helps organize connected cabling behind the panel, while numbered ports make individual connections easier to identify during installation and maintenance.
Shielded Construction
The N062-024-KJ-SH uses fully shielded, heavy-duty steel construction. A grounding wire is included for the shielded panel installation. The blank-panel design leaves connector selection flexible rather than fixing the panel to a single connector type.
Keystone Compatibility
The 24 cutouts are designed for Tripp Lite keystone jacks and can accommodate compatible keystone modules used for different connectivity requirements. Eaton identifies support for Cat5/5e, Cat6, Cat6a, DisplayPort, HDMI and USB 2.0 applications through compatible modules.
Key Features
- 24 blank keystone jack cutouts
- 1U rack-mount form factor for 19-inch EIA-standard racks
- Fully shielded heavy-duty steel construction
- Rear cable manager for organized cabling
- Numbered ports for connection identification
Applications
- Structured network cabling installations
- Server rooms and network closets
- Rack-mounted Ethernet patching with compatible keystone modules
- Multimedia installations using HDMI, DisplayPort or USB keystone modules
- Wall-mounted rack enclosure installations
DC Supplies Product Note
This is a blank patch panel, not a pre-populated RJ45 patch panel. Keystone jacks or other modular inserts are selected separately according to the required connection type.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | N062-024-KJ-SH |
| Product Type | Patch panel |
| Panel Style | Blank |
| Number of Ports | 24 |
| Rack Height | 1U |
| Rack Standard | EIA-standard 19-inch |
| Rack Mounting | 2-post rack or wall-mount rack enclosure |
| Construction | Heavy-duty steel |
| Shielding | Fully shielded |
| Connector Interface | Keystone jack cutouts |
| Supported Technology | Cat5/5e, Cat6, Cat6a, DisplayPort, HDMI, USB 2.0 |
| Color | Black |
| Rear Cable Management | Yes |
| Port Identification | Numbered ports |
| Grounding Wire | Included |
| Dimensions | 19.7 x 6.2 x 2.2 in. (L x W x H) |
| Weight | 0.6 lb |
| Compliance | RoHS |
| Warranty | Limited lifetime |
Frequently Asked Questions
Does the N062-024-KJ-SH include RJ45 keystone jacks?
No. The panel has 24 blank keystone cutouts. Compatible keystone modules are installed separately.
How many rack units does this patch panel occupy?
The N062-024-KJ-SH occupies 1U of a standard 19-inch EIA rack or compatible wall-mount rack enclosure.
Is the patch panel shielded?
Yes. Eaton specifies fully shielded, heavy-duty steel construction and includes a grounding wire.
Can it be used for applications other than Ethernet?
Yes. With compatible keystone modules, the blank cutouts can be used for applications such as HDMI, DisplayPort and USB 2.0 in addition to network connections.
Is a rear cable manager included?
Yes. The panel includes a rear cable manager intended to help organize connected cabling.
