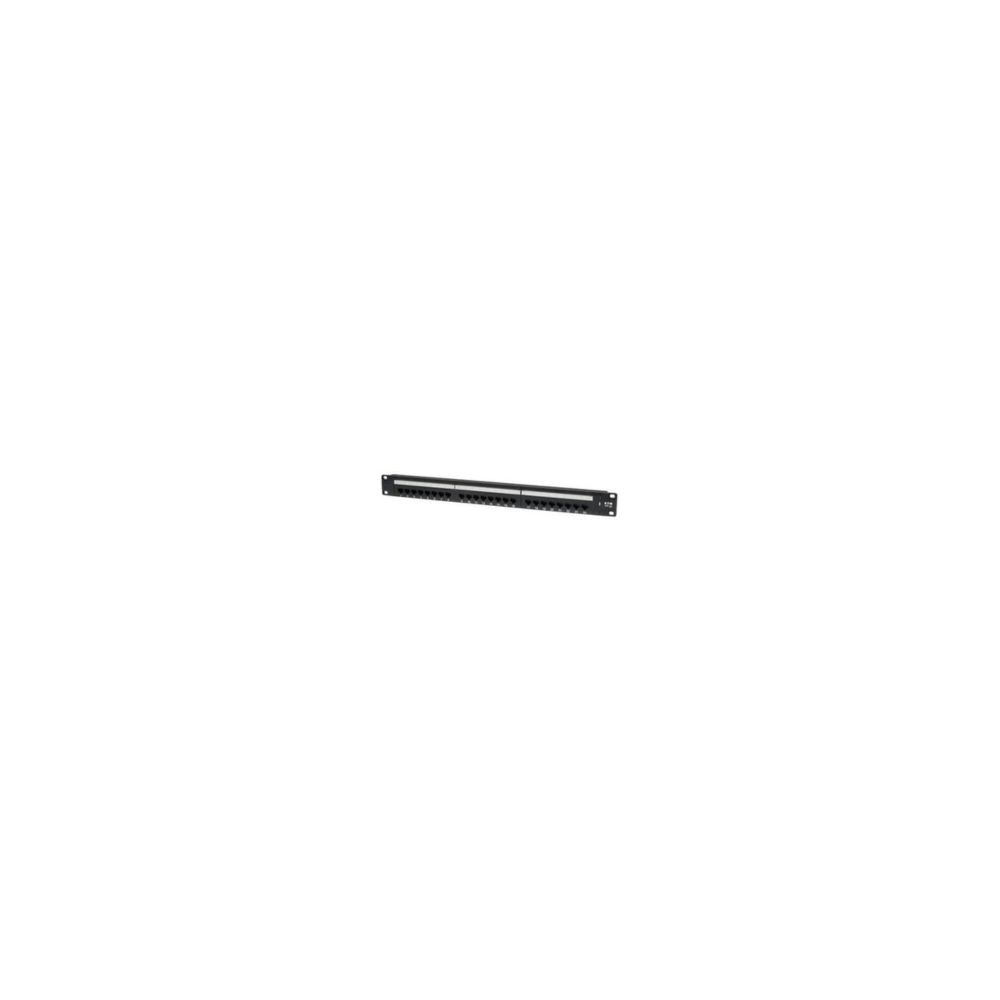

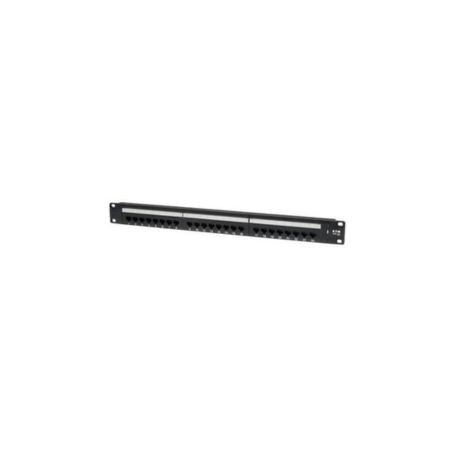

Eaton N252-024 24-Port Cat6 Patch Panel 1U 110-Type

Overview:

The Eaton Tripp Lite Series N252-024 is a 24-port 1U rack-mount Cat6 patch panel engineered for high-density copper cable termination across structured cabling systems, enterprise server rooms, and telecommunications closets. Designed to organize and streamline 1000Base-T Gigabit Ethernet and 10GBase-T copper distribution paths, it maintains optimal signal performance across active patch channels.

Featuring 24 RJ45 ports wired to 110-type termination punchdown blocks, the panel supports both T568A and T568B wiring configurations with color-coded diagrams printed directly on the unit. Top-entry and rear-entry cable management cable tie locations secure individual 4-pair UTP Ethernet cables to reduce conductor strain and preserve wire twist integrity.

Deployable in all standard EIA-compliant 19-inch equipment racks, wall-mount enclosures, and network distribution frames. Compatible with Category 6, Category 5e, and Category 5 unshielded twisted pair cables. Do NOT use with shielded twisted pair (STP) cabling requiring ground continuity across the panel frame.

Key Features :

• 24 Cat6 RJ45 ports support Gigabit Ethernet and 10Gbps patching.

• 110-type punchdown blocks accommodate 22 to 26 AWG solid conductor cable.

• 1U 19-inch rackmount form factor optimizes high-density rack space.

• Color-coded T568A and T568B wiring guides ensure fast, accurate termination.

• Clear port numbering and write-on label areas simplify cable management.
