Detailed Specifications

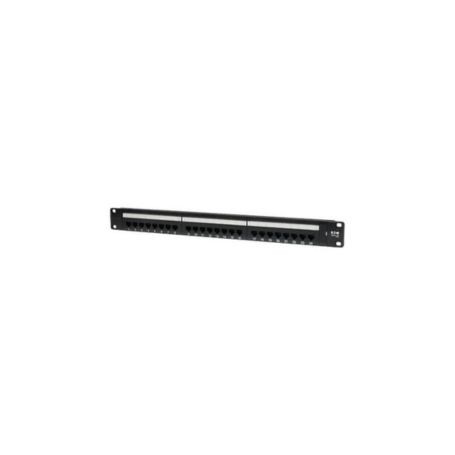

Eaton N052-024 Tripp Lite 24-Port Cat5e Patch Panel
Overview:
The Eaton N052-024 is a Tripp Lite by Eaton 24-port Cat5e 110 punchdown patch panel designed for organizing and terminating copper Ethernet cabling in high-density network installations. It provides 24 RJ45 female ports on the front and 110 IDC punchdown terminations on the rear.
The Tripp Lite N052-024 supports Cat5/Cat5e cabling and uses 568B wiring, with color-coded labeling also supporting 568A termination practices. Its 24-port, 1U form factor is designed for installation in standard 19-inch EIA racks.
For deployment, the Eaton Tripp Lite patch panel provides numbered ports and front labeling for easier cable identification and management. The metal frame and EIA/TIA 2/32 spacing support standard rack-based network infrastructure installations.
Key Features:
- 24 RJ45 female ports provide high-density Cat5e Ethernet termination.
- 110 IDC punchdown terminations support structured copper cabling installation.
- 1U 19-inch rack-mount design conserves rack space in network closets and data centers.
- 568B color-coded wiring with labeling for easier cable termination and identification.
- TAA-compliant metal construction with UL approval and lifetime limited warranty.
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite by Eaton |
| Model | N052-024 |
| Product Type | Patch Panel |
| Cable Category | Cat5e |
| Number of Ports | 24 |
| Rack Height | 1U |
| Rack Width | 19 in |
| Mounting Type | Rackmount |
| Front Connector | RJ45 Female |
| Rear Connector | 110 IDC |
| Panel Style | Punchdown |
| Wiring Standard | 568B |
| Supported Wiring | 568A / 568B |
| Technology | Cat5/5e |
| EIA/TIA Spacing | 2/32 |
| Housing / Frame | Metal |
| PoE Support | Type 2 PoE+ (30W, IEEE 802.3at) |
| Compliance | TAA |
| Certification | UL |
| RoHS | Yes |
| Warranty | Lifetime Limited |
| UPC | 037332013194 |
