Detailed Specifications

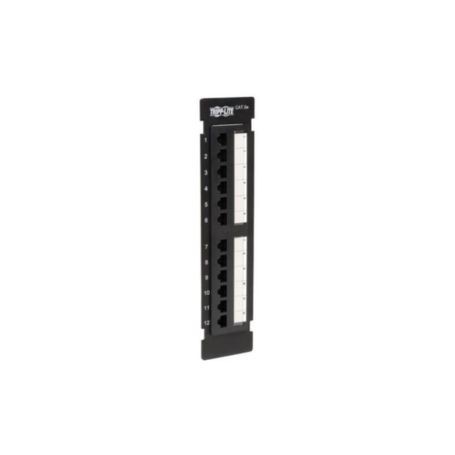

Eaton N050-012 12-Port Wall-Mount Cat5e Patch Panel
Overview
The Eaton N050-012, from the Tripp Lite by Eaton product line, is a 12-port Cat5e wall-mount patch panel designed to organize and terminate Ethernet cabling in network closets, telecom rooms, offices, and structured cabling installations. It provides 12 front-facing RJ45 female ports with rear 110-type IDC punch-down terminations.
The panel supports Cat5/Cat5e cabling and provides color-coded termination guides for both EIA/TIA 568A and 568B wiring schemes. Its metal frame includes clearly numbered ports and front labeling areas, while the included 89B mounting bracket allows wall or desk mounting.
Key Features
- 12-port Cat5e wall-mount patch panel with RJ45 female ports
- Rear 110 IDC punch-down terminations for structured cabling
- Supports EIA/TIA 568A and 568B wiring configurations
- Includes 89B mounting bracket for wall or desk installation
- Metal frame with numbered ports and front labeling areas
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Product Line | Tripp Lite by Eaton |
| Part Number | N050-012 |
| Product Type | Wall-Mount Cat5e Patch Panel |
| Number of Ports | 12 |
| Technology | Cat5/Cat5e |
| Front Connector | RJ45 Female |
| Rear Connector | 110 IDC |
| Termination | Punch Down |
| Wiring Standards | EIA/TIA 568A and 568B |
| Cable Type | UTP Cat5e |
| Supported Cable Gauge | 22-24 AWG solid cable |
| PoE Support | Type 2 PoE+ (30W, IEEE 802.3at) |
| Frame Material | Metal |
| Mounting | Wall or Desk |
| Mounting Bracket | 89B included |
| Port Identification | Numbered ports and front labeling |
| EIA/TIA Spacing | 2/32 in |
| UL Approved | Yes |
| TAA Compliant | Yes |
| RoHS | Compliant |
| Product Dimensions | 3.3 × 10 × 1.9 in (H × W × D), with 89B bracket |
| Product Dimensions | 8.38 × 25.4 × 4.83 cm |
| Shipping Dimensions | 11.02 × 3.15 × 2.17 in (H × W × D) |
| Shipping Weight | 0.68 lb |
| Warranty | Lifetime Limited Warranty |
