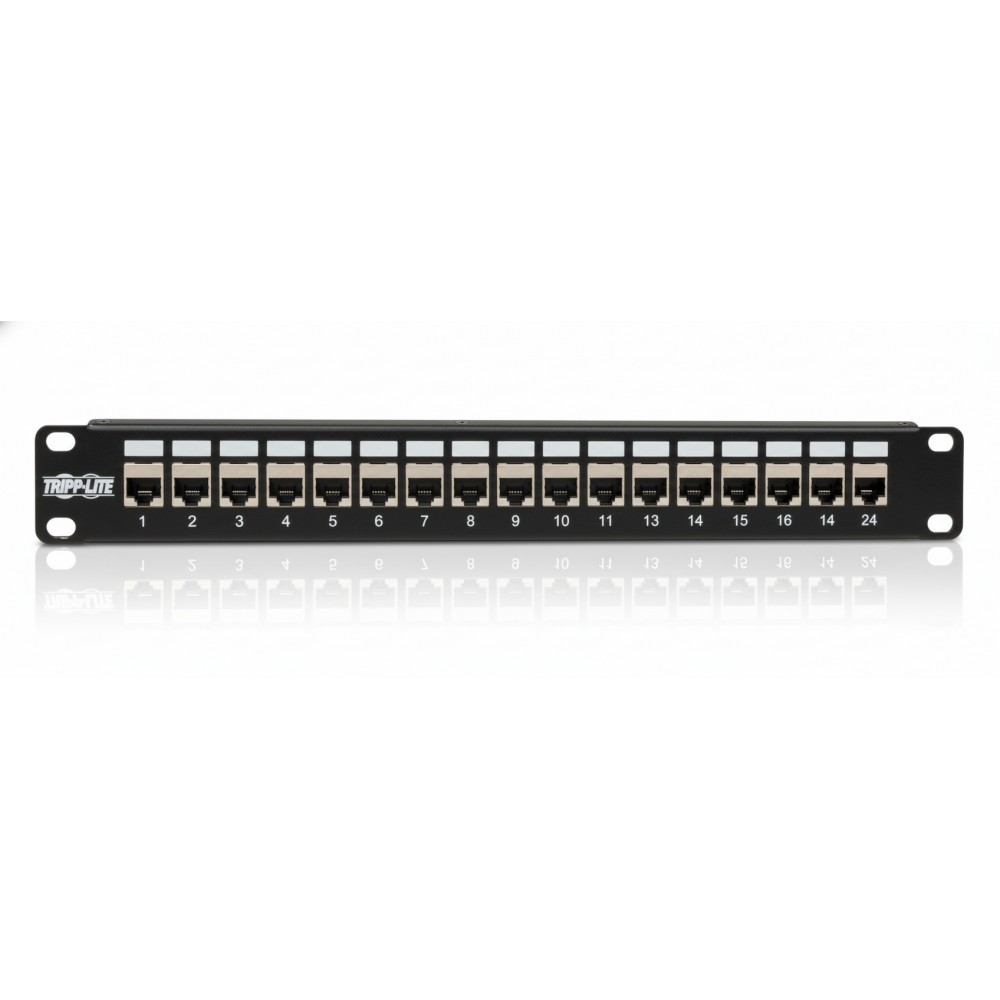

Eaton N254-024-SH 24-Port Shielded Cat6 Patch Panel
Overview :
The Eaton N254-024-SH is a shielded 24-port feed-through network patch panel engineered for structured cabling installations. It is deployed by network engineers and infrastructure teams to terminate, organize, and interconnect horizontal copper cabling in rack-mounted environments. It eliminates the need for punch-down termination on the rear of the panel, simplifying installation and moves/adds/changes.
Technically, this panel conforms to Cat6 specifications and is backward-compatible with Cat5/Cat5e cabling standards. It provides 24 fully shielded RJ45 feed-through ports and a 1U form factor designed for EIA-standard 19" racks or wall-mount hinged racks. Shielding supports improved EMI/RFI control in high-noise environments.
This patch panel fits at the edge of wiring closets, IDF (Intermediate Distribution Frame), MDF (Main Distribution Frame), and data center rack environments where structured copper networks require high-density terminations and orderly cable management. Its low-profile design conserves rack space without sacrificing port count.
Integration is straightforward: the panel supports standard USOC, T568A, and T568B wiring schemes and uses standard shielded RJ45 couplers on both front and rear faces. A detachable cable management bar at the rear aids cable routing and strain relief.
In a practical deployment, typical use cases include terminating horizontal runs from work areas back to the patch panel, then cross-connecting to distribution switches via short patch cords. Deployments requiring consistent shielding, such as in broadcast facilities or industrial sites with electrical noise, benefit from the shielded jacks. It should not be specified where unmanaged cabling is non-shielded (UTP) or where punch-down termination is required.
Key Features
24 fully shielded RJ45 feed-through ports (Cat6)
1U EIA-standard 19″ rack-mount form factor
Supports USOC, T568A/B wiring standards
Rear detachable cable management bar
Meets TAA and RoHS compliance
Specifications
| Specification | Detail |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | N254-024-SH |
| Product Type | Shielded Cat6 Patch Panel |
| Network Standard | Cat6, backward-compatible Cat5/Cat5e |
| Total Ports | 24 RJ45 feed-through |
| Connector Type | Shielded RJ45 female |
| Form Factor | 1U rack-mount, 19″ width |
| Mount Type | Rack or wall-mount hinging compatible |
| Cable Management | Detachable rear bar included |
| Wiring Standards | USOC, T568A, T568B |
| Strain Relief | Screw-down rear strain relief |
| Shielding | Full port shielding (STP) |
| Compliance | TAA, RoHS |
| Color | Black |
| Country of Origin | Taiwan |
| Warranty | Limited lifetime |
