Eaton N254-048-SH-6A - 48-Port Cat6a Patch Panel
Overview

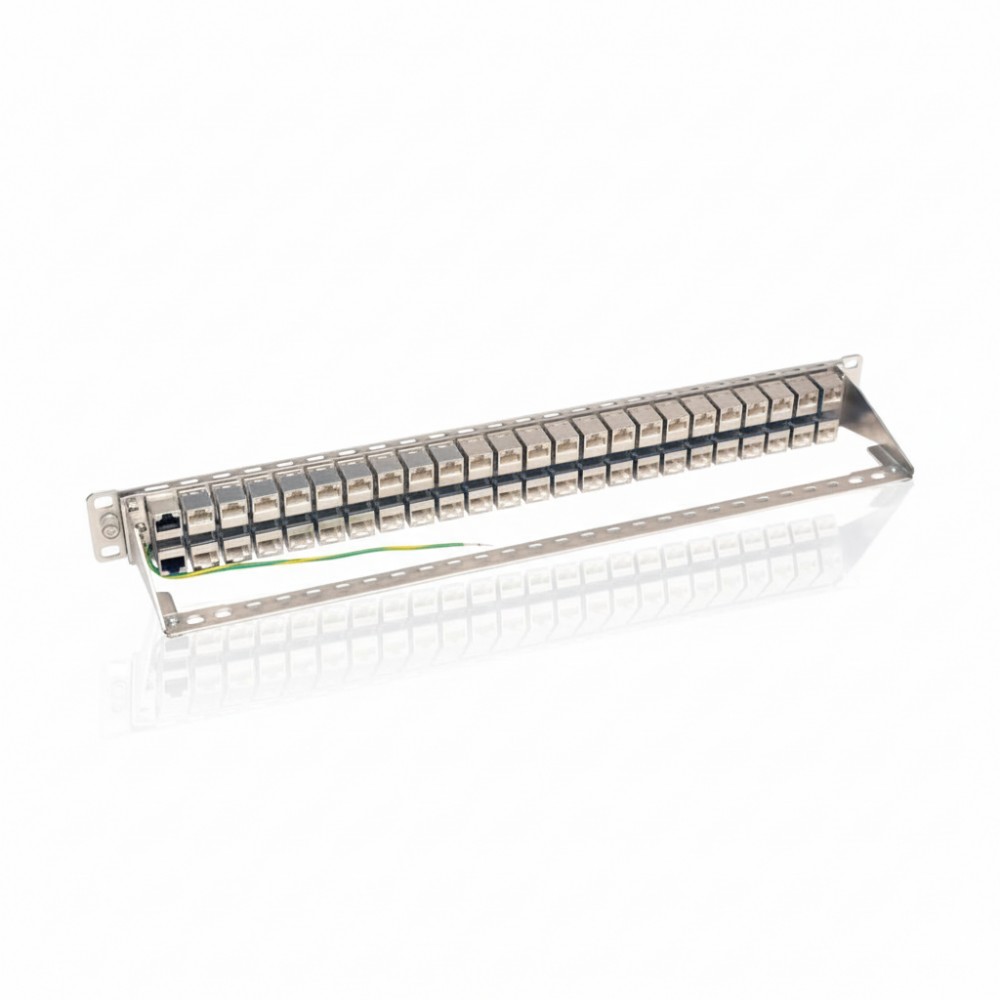

The Eaton N254-048-SH-6A is a rack-mountable feedthrough patch panel designed for structured cabling termination in Ethernet networks. It provides a dense set of shielded RJ-45 interfaces for patching Cat6a cabling without on-panel termination tooling. This configuration is typically deployed by network engineers and cabling teams in data centers, communication rooms, and campus backbone environments to centralize horizontal cabling and simplify moves/adds/changes.
This product supports up to 48 shielded modular RJ-45 ports rated to meet or exceed Cat6a performance requirements. The panel supports 10 Gbps Ethernet over Cat6a cable and operates within the Cat6a channel specifications defined in industry standards. It requires no punchdown termination × cables are simply plugged through from front to rear.
Mechanically, the panel occupies 1U in a standard EIA-310 19-inch equipment rack and includes labeling for port mapping and a detachable cable management bar to maintain cable route discipline behind the panel. A grounding wire is supplied to ensure proper shielding continuity in shielded infrastructure deployments.
This panel is agnostic of active network equipment except for physical connectivity × it does not perform signal conditioning or switching. It is compatible with USOC, T568A, and T568B wiring schemes common in structured cabling practice.
For deployment guidance, use this patch panel in high-density horizontal distribution areas such as IDF/MDF racks where Cat6a shielded copper cabling is terminated and patched to switches or cross-connects. Avoid deploying this panel in non-shielded (UTP) cabling systems as the shielding provisions and grounding requirements will be underutilized, potentially degrading performance in electrically noisy environments.
Key Features
- 48 shielded RJ45 feedthrough ports for Cat6a cabling
- Meets or exceeds Cat6a channel specifications (10 Gbps)
- 1U rack-mountable for standard 19″ racks
- Detachable rear cable management bar included
- Grounding wire for shield continuity
Specifications
| Specification | Detail |
|---|
| Brand | Eaton (Tripp Lite) |
| Part Number | N254-048-SH-6A |
| Product Type | Cat6a Feedthrough Patch Panel |
| Port Count | 48 RJ-45 shielded ports |
| Performance | Cat6a (up to 10 Gbps Ethernet) |
| Rack Units | 1U rack mount |
| Rack Width | 19″ EIA-310 compatible |
| Termination | Feedthrough (no 110 punchdown) |
| Cable Standards Supported | USOC, T568A, T568B |
| Shield Type | STP (shielded) |
| Cable Management | Detachable rear bar |
| Grounding | Grounding wire included |
| Compliance | TAA Compliant |
| Environmental | RoHS compliant |
| Dimensions (HxWxD) | Approx. 1.7″ × 19.0″ × 1.25″ |
| Weight | Approx. 0.64 kg (1.4 lb) |
| Country of Origin | Taiwan |
