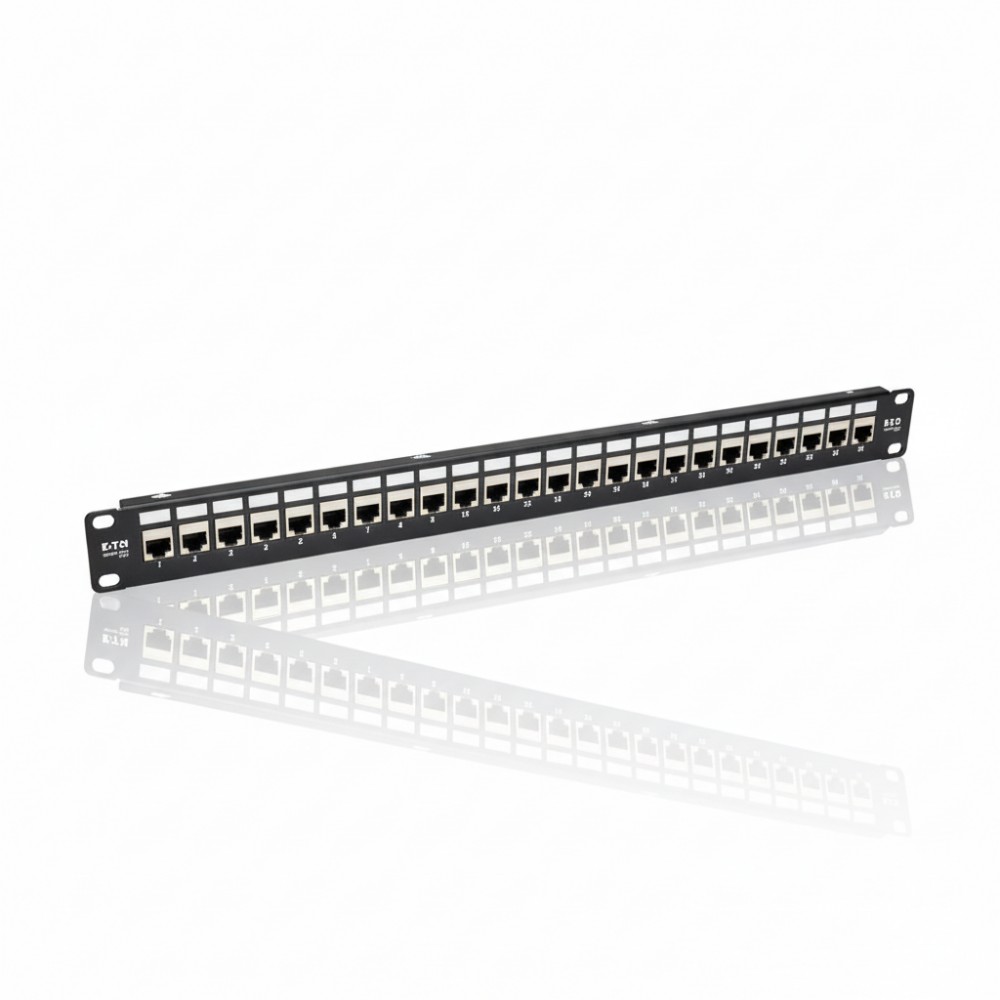

Eaton N254-024-SH-6A - STP Cat6a 24-Port Patch Panel
Overview
The Eaton N254-024-SH-6A is a 24-port shielded Cat6a feed-through patch panel engineered for structured cabling deployments requiring high-integrity connections and EMI/RFI protection. It's used by network engineers and infrastructure integrators in data centers, enterprise MDF/IDF closets, and telecom racks to organize and terminate high-speed network links with minimal signal degradation. The fully shielded design addresses noise susceptibility common in dense cabling environments.
This panel is rated to meet or exceed Cat6a performance with 24 shielded RJ-45 coupler jacks supporting 10 Gbps Ethernet data rates. It accepts shielded twisted-pair (STP) Cat6a cabling without 110 punch-down termination × cables simply mate front to rear via feed-through couplers. A detachable rear cable-management bar and included grounding wire simplify organization and grounding continuity.
Mechanically, it occupies 1U of vertical space in a 19-inch EIA-standard rack and is compatible with common rack layouts in IDF/MDF and point-of-presence racks. The low-profile steel chassis integrates easily with rack PDUs and active network switches without interfering with adjacent components.
Integration fits within structured cabling ecosystems using USOC/T568A/T568B wiring, standard Cat6a patch cords, and shielded-cable management practices. The shielded feeds require proper panel bonding/grounding to maintain full STP effectiveness and satisfy installation standards.
For example, the N254-024-SH-6A is deployed in a data center IDF to consolidate 10 GbE uplinks from multiple access switches into core aggregation fabric, providing shielded protection where adjacent power cabling runs increase interference risk. It is not appropriate where unshielded Cat5e/Cat6 links suffice or where individual punch-down termination is required × its feed-through architecture does not support modular termination blocks.
Key Features
- 24 shielded RJ-45 Cat6a feed-through ports in 1U
- Rated for 10 Gbps Ethernet data transfers
- Detachable rear cable-management bar included
- Includes grounding wire for STP panel bonding
- TAA-compliant for procurement standards
Specifications
| Specification | Detail |
|---|
| Brand | Eaton (Tripp Lite) |
| Part Number | N254-024-SH-6A |
| Product Type | STP Cat6a Feed-Through Patch Panel |
| Ports | 24 shielded RJ-45 couplers |
| Category Support | Cat6a |
| Data Rate | Up to 10 Gbps |
| Wiring Standards | USOC, T568A/B |
| Shielding | STP (Shielded Twisted Pair) |
| Rack Units | 1U |
| Rack Width | 19″ EIA standard |
| Cable Management | Detachable rear bar |
| Grounding | Included grounding wire |
| Mounting Type | Front rack-mount |
| Material | Steel chassis |
| Certifications | TAA compliant, RoHS |
