Detailed Specifications

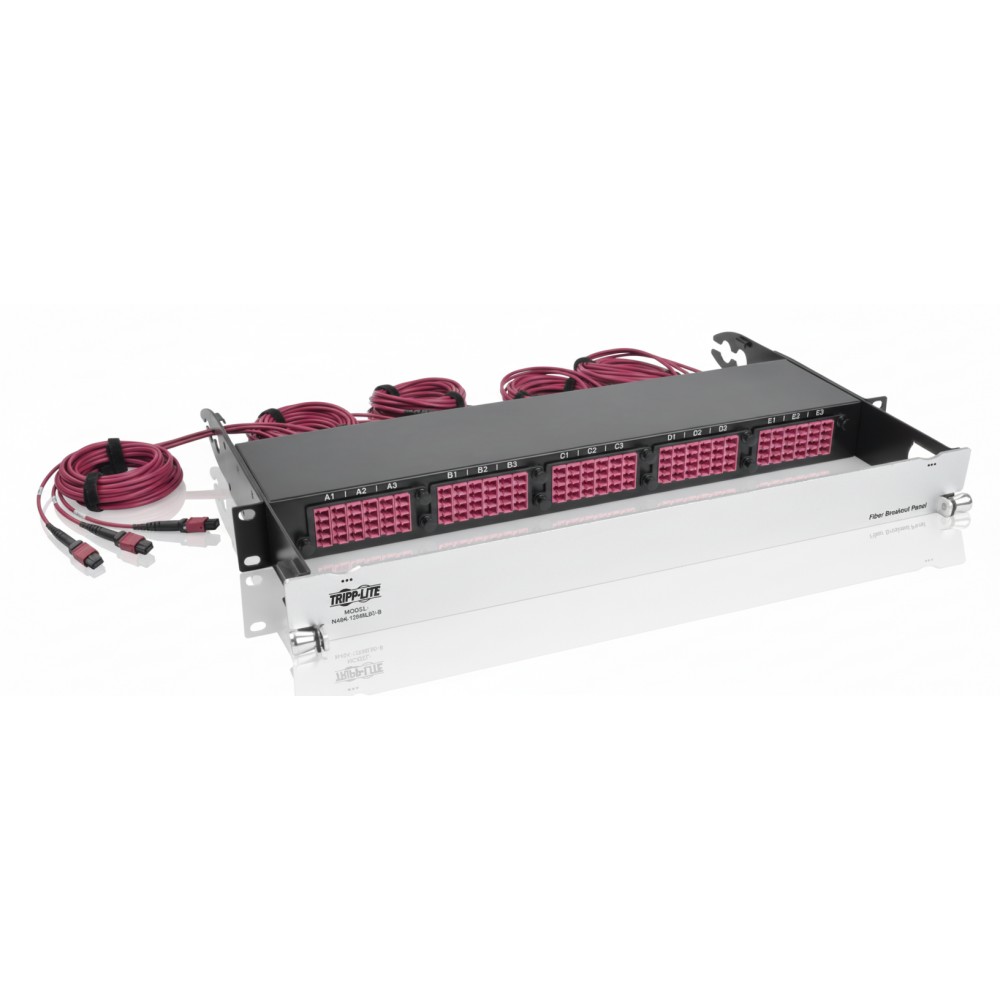

Eaton N48K-15M8L60-B - Fiber Breakout Patch Panel
Overview :
The Eaton N48K-15M8L60-B is a 1 U rack-mount fiber breakout patch panel designed for data-center or large-scale cabling environments where high-density multimode connectivity is required. It breaks out 15 MTP/MPO QSFP switch ports into 60 LC duplex ports using OM4 50/125 µm multimode fiber. It fits into a standard 19-inch rack (1 U height) and is typically deployed in data-centres, server farms, or campus backbone rooms. It integrates easily with QSFP+ (40 Gb) or QSFP28 (100 Gb) switch systems supporting breakout to 10 Gb or 25 Gb links.
Key Features :
15 MTP/MPO QSFP ports to 60 LC duplex OM4 ports breakout
Base-8 wiring ensures no unused LC ports, full 60-port utilization
Hard-wired cassettes provide ~30% improved insertion loss versus modular variants
Fold-down front panel for patch cord protection and front-label customisation
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | N48K-15M8L60-B |
| Product Type | Fiber Breakout Patch Panel |
| Fiber Type | OM4 50/125 µm multimode |
| Switch-side Ports | 15 MTP/MPO QSFP (12-fibers each) |
| Patch-side Ports | 60 LC duplex |
| Wiring Structure | Base-8 wiring (100% LC port utilization) |
| Chassis Height | 1 U (Standard 19-inch rack mount) |
| Color / Finish | Black panel |
| Warranty | Lifetime limited warranty |
| UPC Code | 037332200846 |
