Detailed Specifications

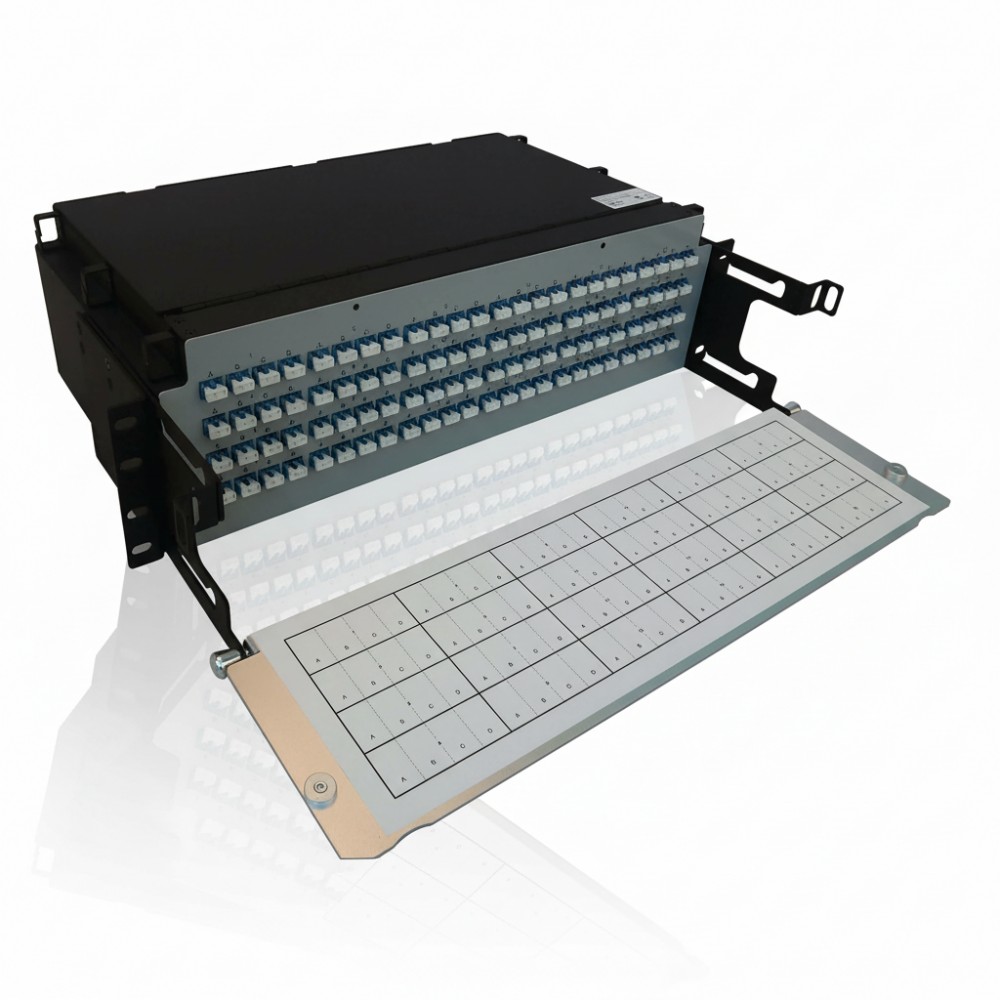

Eaton N48S-24M8L4-10 - Preloaded Fiber Panel
Overview :
The N48S-24M8L4-10 is a preloaded fiber patch panel for engineers who need instant, rack-ready singlemode trunking without custom cable builds. It arrives with coiled MTP/MPO-APC to LC duplex trunk cables so you can deploy and dress connections immediately. Designed to integrate 10G/40G/100G equipment, it reduces cable clutter while keeping excess cable stored inside the chassis. Fits standard EIA 19-inch racks (3U) and is intended for data center, spine/leaf, and campus distribution use.
Key Features :
24 MTP/MPO-APC trunks (8-fiber) preloaded for use
Provides 96 front-facing LC duplex ports, numbered
Aluminum 3U rack chassis with fold-down front panel
10 m OS2 singlemode trunks; OFNP jacket rating
Specifications :
| Specification | Value |
|---|
| Brand | Eaton (Tripp Lite) |
| Part Number | N48S-24M8L4-10 |
| Product Type | Preloaded fiber patch panel |
| Technology | Singlemode |
| Optical Mode | OS2 |
| Rack Height | 3U (EIA 19-inch) |
| Number of LC Duplex Ports | 96 (LC duplex, female) |
| Panel Cable Number (trunks) | 24 |
| Trunk Cable Type | MTP/MPO-APC to LC duplex (female) |
| Trunk Cable Fiber Count | 8 fibers per trunk |
| Trunk Cable Length | 10 m (32.8 ft.) |
| Panel Dimensions (H×W×D) | 5.23 × 17.42 × 12.99 in |
| Insertion Loss | MTP/MPO: <0.70 dB; LC: <0.30 dB |
| Operating Temperature Range | -20° to 60°C (-4° to 140°F) |
