Eaton N844-01M-12-P - 12-Fiber MTP/MPO OM3 Patch Cable

Overview

The Eaton N844-01M-12-P is a 12-fiber MTP/MPO multimode fiber patch cable engineered for high-density data network environments where compact, high-bandwidth interconnects are needed between switches, patch panels, and transceivers. It is deployed by network infrastructure engineers, fiber cabling technicians, and data center teams to provide reliable optical links in backbone and horizontal fiber distribution frames.

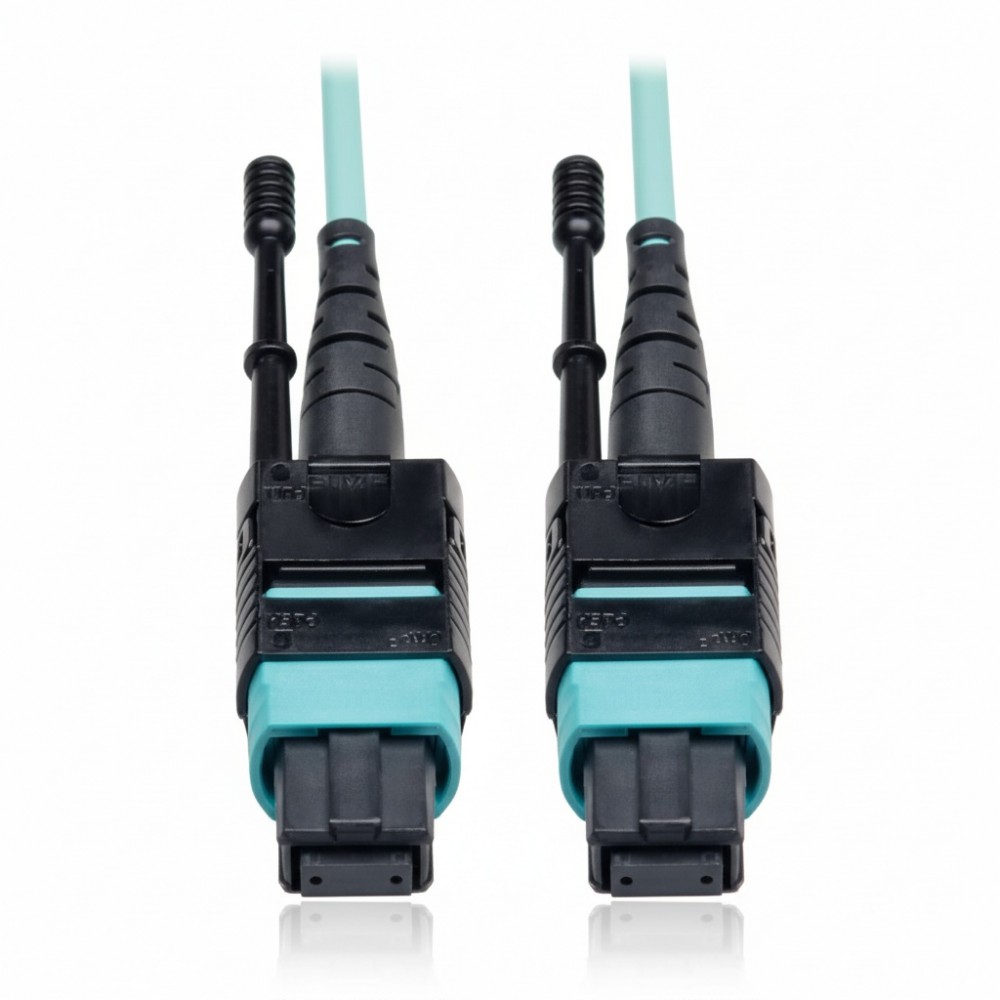

This cable features dual MTP/MPO female connectors with push/pull latching for simplified insertion and removal in high-density racks and panels. The underlying fiber is OM3 multimode (50/125 µm) optimized for 40 GbE performance × supporting 40GBASE-SR4 and equivalent high-speed optical interconnect standards over short distances.

Mechanically, the N844-01M-12-P is 1 m (3.3 ft) in length, with an aqua plenum-rated jacket compliant with riser and plenum fire safety codes, suitable for telecommunications spaces and data center cable trays. The push/pull tab design enhances accessibility in dense MTP/MPO environments.

Integration into structured networks includes link termination between MTP/MPO ports on switches, optical modules, and breakout panels in MDF/IDF cabinets. The connector density is 12 fibers per end, enabling parallel optics lanes for 40 Gbps links or multiple 10 Gbps channels aggregated within a single cable.

This cable is not a transceiver, nor does it include breakout harnesses; field planners must ensure connected equipment supports parallel optics or appropriate splitting solutions. It also is not shielded for EMI/RFI, being intended for optical runs.

Key Features

• 1 m plenum-rated 12-fiber MTP/MPO multimode patch cable
• Supports 40 GbE and parallel optical standards
• Push/pull latching MTP/MPO connectors for high-density racks
• OM3 (50/125 µm) multimode optimized for 850 nm
• Aqua jacket for fiber classification and plenum deployment

Specifications
