Detailed Specifications

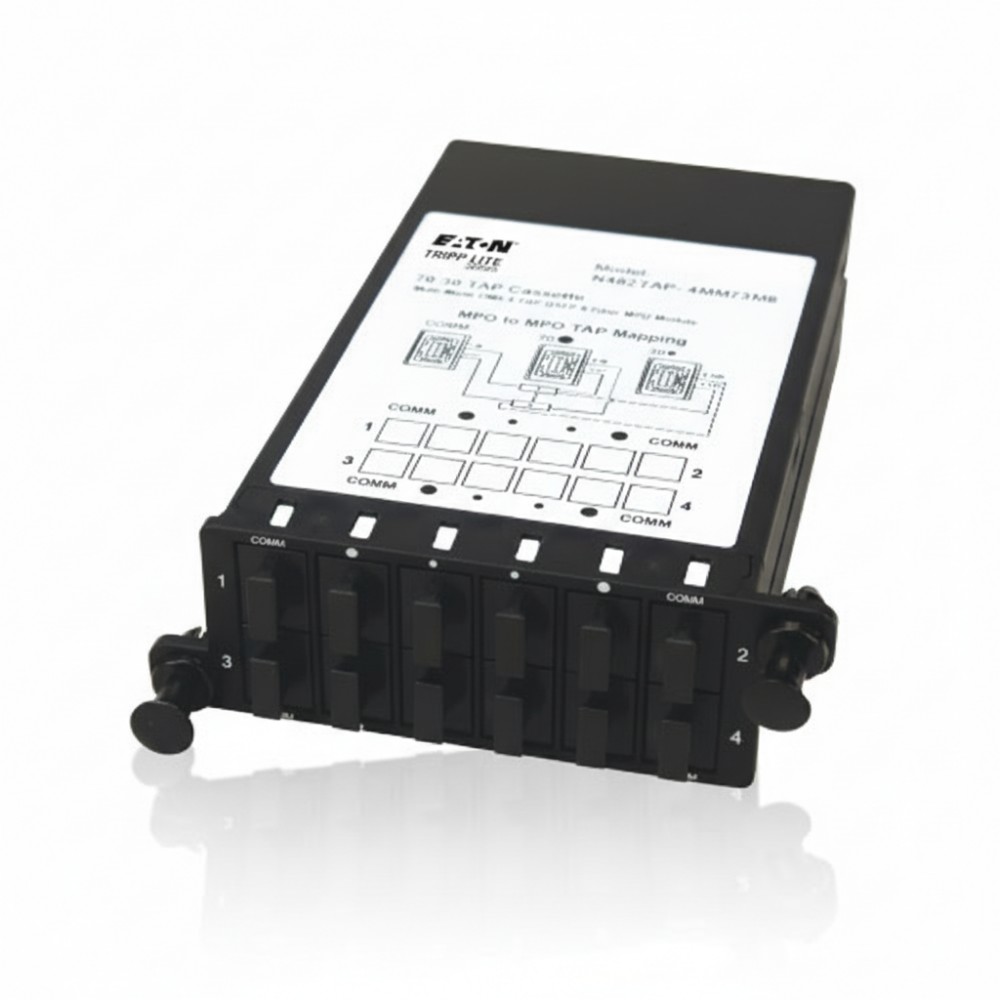

Eaton N482TAP-4MM73M8 - Fiber TAP Cassette (Multimode)
Overview :
The Eaton N482TAP-4MM73M8 is a passive fiber TAP cassette designed for network engineers to monitor multimode optical links without disrupting the primary traffic. It supports 40 / 100 Gb links via OM4 multimode fibre and splits the optical signal at a 70/30 ratio: 70 % to the live link, 30 % to the monitoring port. This cassette installs into the N482-series enclosures and is suitable for deployment in data-centre, campus or edge fiber racks. It integrates seamlessly with Eaton/Tripp Lite N482 enclosures and compatible MTP/MPO cabling infrastructure.
Key Features :
70/30 optical split ratio for live link and monitor port
Supports 40 Gbps / 100 Gbps / 400 Gbps multimode links
OM4 multimode fibre with 12-fibre MTP/MPO male connectors
Compatible with N482-00U / N482-01U / N482-02U / N482-04U chassis
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | N482TAP-4MM73M8 |
| Product Type | Passive Fiber TAP Cassette |
| Optical Mode | OM4 multimode fibre |
| Split Ratio | 70 / 30 |
| Network Compatibility | 40 Gbps; 100 Gbps; 400 Gbps |
| Wavelength | 850 nm |
| Insertion Loss | ≤3.00 dB / ≤7.00 dB @ 850 nm |
| Monitoring Ports | 4 |
| Side-A Connector | 12-fibre MTP/MPO (male) |
| Side-B Connector | 12-fibre MTP/MPO (male) |
| Number of Fibres | 32 |
| Operating Temperature Range | -20 °C to 60 °C (-4 °F to 140 °F) |
| Storage Temperature Range | -20 °C to 60 °C (-4 °F to 140 °F) |
| Relative Humidity | 5 % to 85 % RH, non-condensing |
| Compliance | RoHS, REACH |
| Warranty | Lifetime limited |
