Overview :

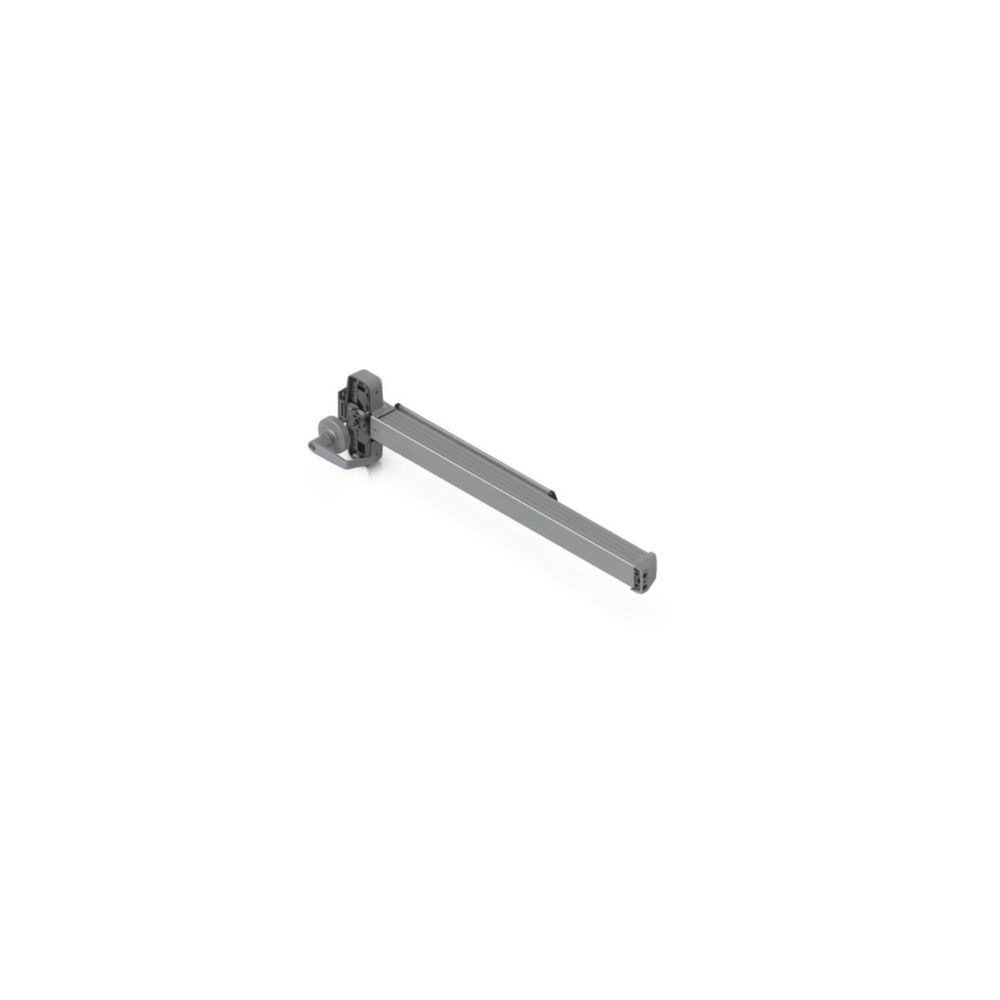

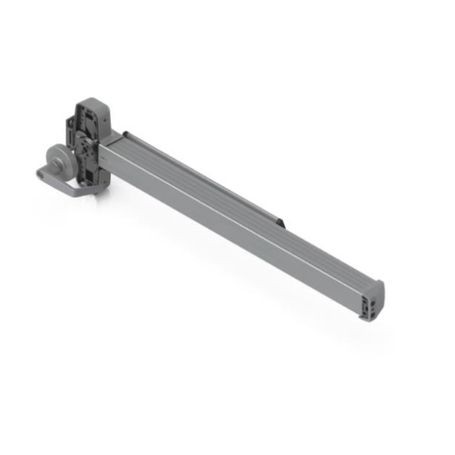

The Ubiquiti UACC-PANICBAR is a mechanical emergency exit device designed for controlled-access doors requiring quick and easy egress. Its single-latched push bar allows occupants to open an emergency exit by pressing the bar.
Emergency Egress
The panic bar provides mechanical free egress and can be connected to a UniFi Access Hub as an exit-request device. When integrated with a compatible fail-safe lock, the installation can permit free exit while maintaining controlled authentication for entry.
Door Compatibility
The UACC-PANICBAR supports standard 3-foot doors with widths from 2 feet 4 inches to 3 feet. It is designed for metal or wood doors measuring 1-3/4 or 2 inches thick and supports a 3/4-inch door stop.
Electrical Interface
The panic bar uses a dry-contact connection with two lines. Its push-to-short and release-to-open behavior provides an exit-request signal to compatible access-control equipment. The dry contact is rated for up to 30V DC and 1A.
Mechanical Design
The enclosure combines aluminum and stainless steel construction. The bar is non-handed and reversible for different door handing and trim configurations. A minimum 4-1/4-inch stile is required.
Key Features
- Mechanical emergency exit panic bar
- Single-latched surface-mounted exit device
- Reversible, non-handed design
- Dry-contact output rated up to 30V DC, 1A
- UL 305, UL 10C, and ANSI/BHMA A156.3 Grade 1 certified
Applications
- UniFi Access controlled-entry installations
- Emergency exit doors
- Commercial and industrial facilities
- Public-building egress doors
- Access-controlled doors requiring free emergency exit
DC Supplies Product Note
The UACC-PANICBAR is a mechanical exit device rather than a powered locking mechanism. Ubiquiti specifies connecting it to the Access Hub's BUTTON or EXIT REQUEST terminal, while a compatible fail-safe lock provides the controlled-entry function.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-PANICBAR |
|---|
| Product Type | Emergency Exit Panic Bar |
|---|
| Product Line | UniFi Access |
|---|
| Door Width | 2 ft 4 in to 3 ft (711–914 mm) |
|---|
| Standard Door Width | 3 ft |
|---|
| Door Thickness | 1-3/4 in (44 mm) or 2 in (51 mm) |
|---|
| Compatible Door Material | Metal or wood |
|---|
| Strike | 3/4 in (19 mm) stop |
|---|
| Stile Requirement | 4-1/4 in (108 mm) minimum |
|---|
| Connection | 2-line dry relay |
|---|
| Dry Contact Rating | 30V DC, 1A |
|---|
| Operation | Push = short; release = open |
|---|
| Design | Non-handed, reversible |
|---|
| Enclosure Material | Aluminum, stainless steel |
|---|
| Certifications | UL 305, UL 10C, CAN/ULC-S132, ANSI/BHMA A156.3 Grade 1 |
|---|
FAQs
Is the UACC-PANICBAR powered?
No. It is a mechanical emergency exit device. Its electrical interface is a dry contact used to signal an exit request.
Can the panic bar connect to a UniFi Access Hub?
Yes. Ubiquiti specifies connecting the panic bar to the hub's BUTTON or EXIT REQUEST terminal.
What doors does the panic bar support?
It supports metal or wood doors that are 1-3/4 or 2 inches thick and 2 feet 4 inches to 3 feet wide.
Is the panic bar reversible?
Yes. The UACC-PANICBAR is non-handed and reversible for different functions and trim configurations.
Does it work with the UniFi Strike Lock?
No. Ubiquiti states that the UniFi Panic Bar is not compatible with the UniFi Strike Lock because the strike lock is recessed while the panic bar uses a surface-mounted latch.
