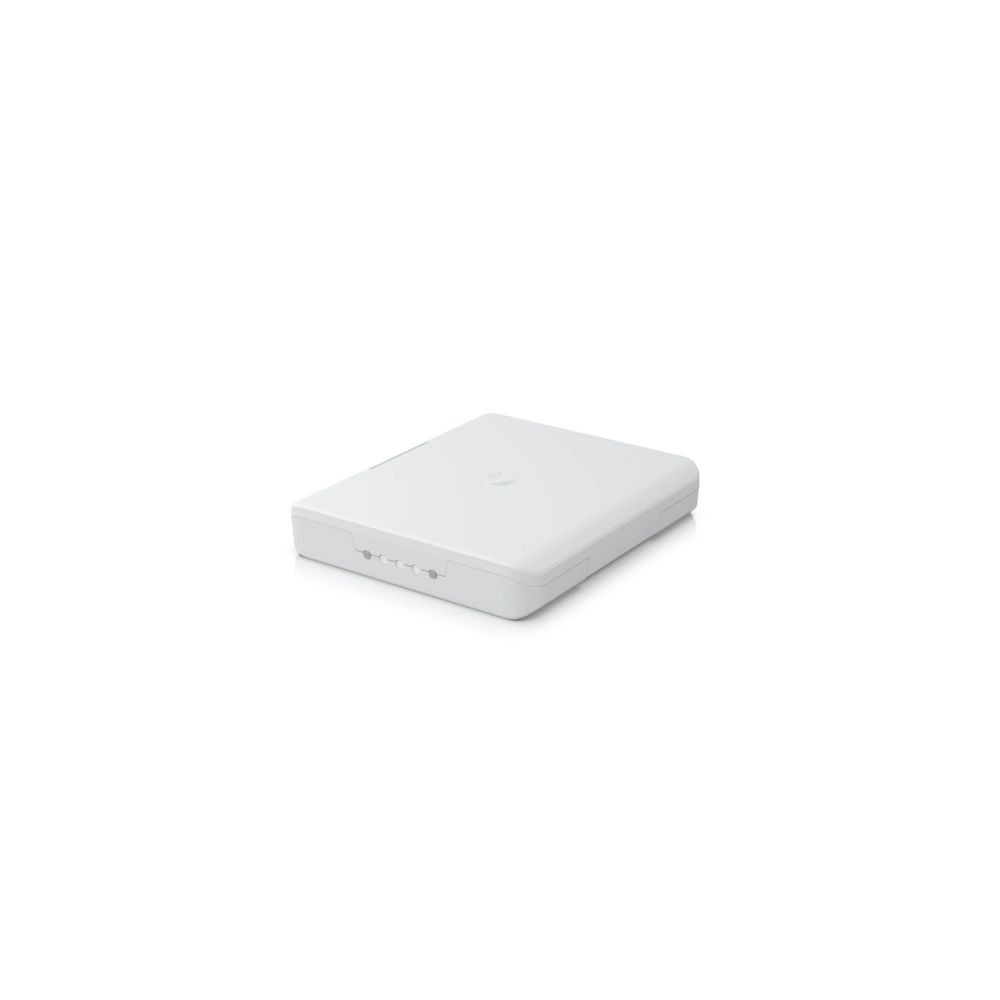

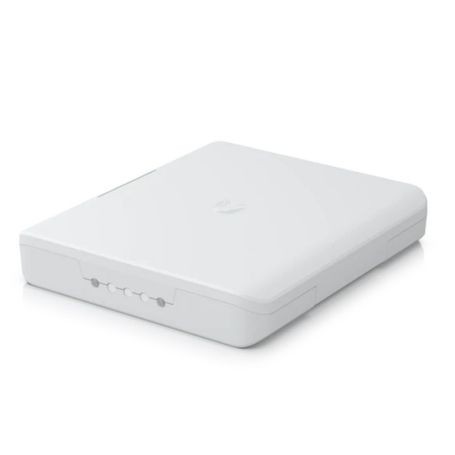

Ubiquiti UACC-UF-TERMINAL-BOX Fiber Outdoor Terminal Box
Overview
The Ubiquiti UACC-UF-TERMINAL-BOX is a weatherproof outdoor terminal enclosure designed to protect compatible Ubiquiti fiber devices during exterior installations. The enclosure is IPX5-rated and supports both wall and pole mounting, providing a protected housing option for compatible fiber equipment. Ubiquiti specifies UV-stabilized polycarbonate for the enclosure material.
Mounting and Installation
The terminal box supports pole mounting for poles with diameters from 35 to 60 mm (1.38 to 2.36 inches). Ubiquiti also identifies wall mounting as a supported installation method. The product includes cable straps, a metal strap, pole mounting hardware, and a screw kit for installation.
Environmental Protection
The enclosure is rated IPX5 for protection against water exposure. Its UV-stabilized polycarbonate construction is specified for the enclosure, making the unit suitable for outdoor fiber equipment installations where protection from weather and environmental exposure is required.
Key Features
- IPX5-rated weatherproof enclosure for outdoor fiber equipment
- Supports wall and pole mounting
- Compatible with specified Ubiquiti fiber devices
- UV-stabilized polycarbonate enclosure construction
- Supports pole diameters from 35–60 mm
Applications
The UACC-UF-TERMINAL-BOX is intended for outdoor deployments of compatible Ubiquiti fiber equipment where the device requires a weatherproof enclosure. Wall or pole installation can be selected according to the available mounting location.
DC Supplies Product Note
Confirm that the fiber device being installed is specifically compatible with the UACC-UF-TERMINAL-BOX before deployment. For pole installations, the mounting structure must fall within the specified 35–60 mm diameter range. The enclosure provides IPX5 protection but should not be treated as a general-purpose enclosure for unspecified equipment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-UF-TERMINAL-BOX |
| Product Type | Fiber Outdoor Terminal Box |
| Application | Outdoor fiber device enclosure |
| Mounting | Wall and pole |
| Pole Mount Diameter | 35–60 mm (1.38–2.36") |
| Weather Protection | IPX5 |
| Enclosure Material | UV-stabilized polycarbonate |
| Color | White |
| Dimensions With Mount | 249 × 218 × 60 mm (9.8 × 8.6 × 2.4") |
| Weight | 680 g (1.5 lb) |
| Included Cable Strap | Yes |
| Included Metal Strap | Yes |
| Included Pole Mount | Yes |
| Included Screw Kit | Yes |
| UPC | 810084693094 |
Frequently Asked Questions
What is the UACC-UF-TERMINAL-BOX used for?
It is a weatherproof outdoor enclosure designed to protect compatible Ubiquiti fiber devices.
Can the terminal box be mounted on a pole?
Yes. Pole mounting is supported for poles with diameters from 35 to 60 mm (1.38 to 2.36 inches).
Is the UACC-UF-TERMINAL-BOX weatherproof?
Yes. Ubiquiti specifies an IPX5-rated weatherproof housing.
What material is the enclosure made from?
The enclosure is made from UV-stabilized polycarbonate.
What mounting accessories are included?
The listed contents include a cable strap, metal strap, pole mounting hardware, and screw kit. A wall mount is also identified in authorized-distributor package information.
What are the dimensions of the terminal box?
With the mount, the specified dimensions are 249 × 218 × 60 mm (9.8 × 8.6 × 2.4 inches).
