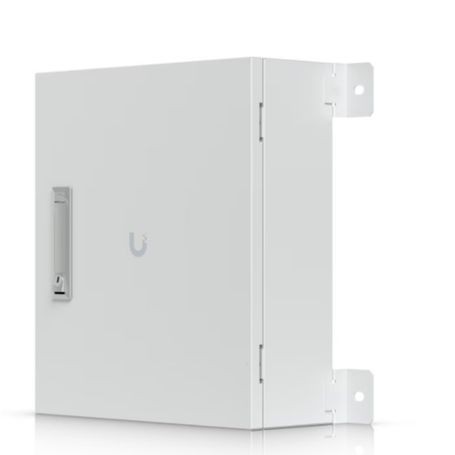

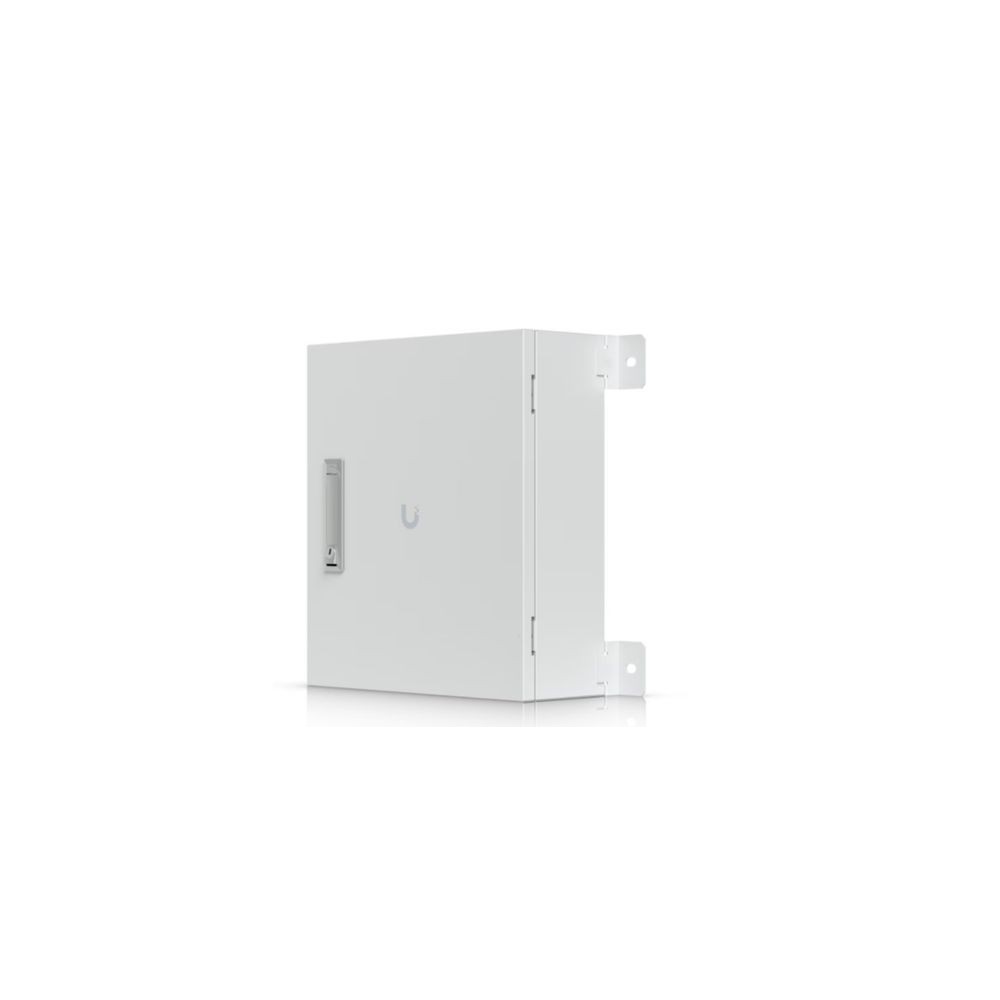

The Ubiquiti UACC-JUNCTION-UTILITY is an indoor/outdoor utility enclosure designed to house UniFi Access hubs, switches, and compatible accessories. Its galvanized steel construction provides a durable enclosure for equipment deployments where additional physical protection is required.
Enclosure Design
The Junction Utility uses a galvanized steel SGCC enclosure with a dedicated inner mounting plate. The enclosure measures 400 x 350 x 152 mm, while the inner mounting plate measures 270 x 355 mm.
Environmental Protection
The enclosure is rated IP55 for protection against dust ingress and water jets. Ubiquiti also specifies UL 50E NEMA Type 3R outdoor enclosure certification.
Mounting and Installation
The UACC-JUNCTION-UTILITY is designed for wall mounting. The inner mounting plate provides a mounting surface for supported UniFi Access equipment and accessories within the enclosure.
Key Features
- Indoor/outdoor utility enclosure for UniFi Access equipment
- Galvanized steel SGCC construction
- IP55 weatherproofing
- Wall-mount installation
- UL 50E NEMA Type 3R outdoor enclosure certified
Applications
- UniFi Access hub installations
- Access-control equipment protection
- Outdoor or exposed equipment installations
- Wall-mounted network and access infrastructure
DC Supplies Product Note
The UACC-JUNCTION-UTILITY provides a substantially larger enclosure than a typical compact junction box, with a 270 x 355 mm inner mounting plate for equipment installation. Verify the dimensions and mounting-hole requirements of the equipment before deployment.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-JUNCTION-UTILITY |
|---|
| Product Type | Utility Enclosure |
|---|
| Product Line | UniFi Access |
|---|
| Primary Application | UniFi Access Hubs, switches, and accessories |
|---|
| Enclosure Dimensions | 400 x 350 x 152 mm (15.7 x 13.8 x 6 in) |
|---|
| Inner Mounting Plate | 270 x 355 mm (10.6 x 14 in) |
|---|
| Enclosure Material | Galvanized steel (SGCC) |
|---|
| Mounting | Wall |
|---|
| Weatherproofing | IP55 |
|---|
| Certification | UL 50E NEMA Type 3R Outdoor Enclosure |
|---|
| Weight | 7 kg (15.4 lb) |
|---|
FAQs
What is the UACC-JUNCTION-UTILITY used for?
It is an indoor/outdoor enclosure designed to house UniFi Access hubs, switches, and accessories.
What is the enclosure made of?
The enclosure is constructed from galvanized steel (SGCC).
Can the Junction Utility be installed outdoors?
Yes. Ubiquiti specifies IP55 weatherproofing and UL 50E NEMA Type 3R outdoor enclosure certification.
How is the enclosure mounted?
The UACC-JUNCTION-UTILITY is designed for wall mounting.
What are the enclosure dimensions?
The enclosure measures 400 x 350 x 152 mm (15.7 x 13.8 x 6 inches), with an inner mounting plate measuring 270 x 355 mm (10.6 x 14 inches).
