Overview

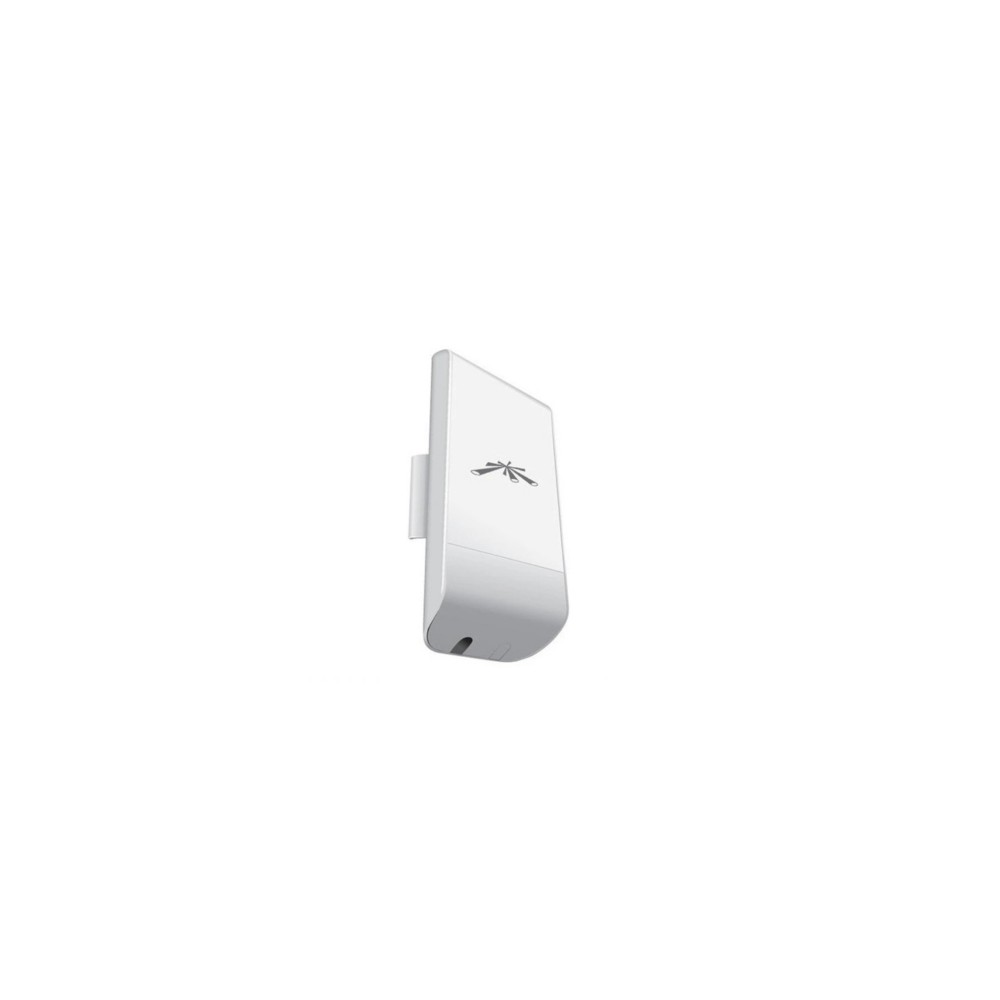

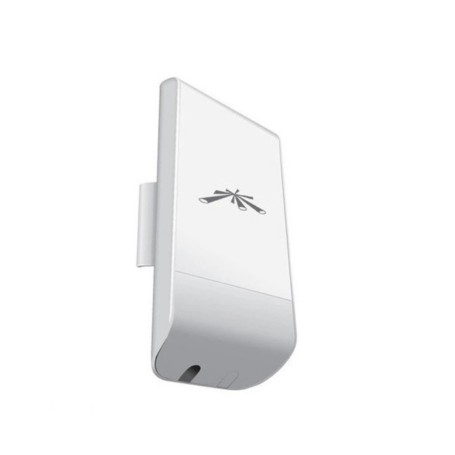

The Ubiquiti NSM2(US) is a NanoStation M2 2.4 GHz indoor/outdoor airMAX CPE with an integrated dual-linear antenna. It provides two 10/100 MbE RJ45 ports, passive PoE power, and pole mounting for fixed wireless network deployments.
Wireless Performance
The NanoStation M2 operates across 2412–2462 MHz and uses dual-linear polarization. Its integrated antenna provides 10.4–11.2 dBi gain, with a maximum VSWR of 1.6:1 and minimum cross-polarization isolation of 23 dB. Beamwidth is specified at 55° horizontal, 53° vertical, and 27° elevation.
Key Features
- 2.4 GHz airMAX CPE with integrated antenna
- 10.4–11.2 dBi integrated antenna gain
- Two 10/100 MbE RJ45 networking ports
- Passive 2-pair PoE with included 24 V, 0.5 A adapter
- Outdoor UV-stabilized enclosure with included pole-mount kit
Networking and Power
The NSM2 provides two 10/100 MbE RJ45 ports. Power is supplied through passive 2-pair PoE using a 24 V, 0.5 A PoE adapter. The supported DC input range is 22–27 V, and maximum power consumption is 5.5 W.
Outdoor Deployment
The enclosure is made from outdoor UV-stabilized plastic. The unit is designed for ambient operating temperatures from -30°C to 75°C and 5–95% noncondensing humidity. A pole-mount kit is included.
DC Supplies Product Note
NSM2 and LocoM2 are different NanoStation M2 models. The NSM2 has two 10/100 MbE ports, 10.4–11.2 dBi gain, and dimensions of 294 × 31 × 80 mm, while LocoM2 is a smaller model with one Ethernet port and lower antenna gain.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | NSM2(US) |
| Product Type | 2.4 GHz Indoor/Outdoor airMAX CPE |
| Product Family | NanoStation M2 |
| Frequency | 2.4 GHz |
| Operating Frequency | 2412–2462 MHz |
| Antenna Gain | 10.4–11.2 dBi |
| Polarization | Dual linear |
| Cross-Polarization Isolation | 23 dB minimum |
| Maximum VSWR | 1.6:1 |
| Beamwidth | 55° H-pol / 53° V-pol / 27° elevation |
| Networking Interfaces | 2 × 10/100 MbE RJ45 |
| Power Method | Passive PoE, 2-pair |
| Power Supply | 24 V, 0.5 A PoE adapter included |
| Supported Voltage | 22–27 V DC |
| Maximum Power Consumption | 5.5 W |
| Mounting | Pole mount, kit included |
| Enclosure Material | Outdoor UV-stabilized plastic |
| Dimensions | 294 × 31 × 80 mm |
| Weight | 400 g |
| Operating Temperature | -30°C to 75°C |
| Operating Humidity | 5–95% noncondensing |
| Certifications | FCC, ICC, CE, RoHS |
| NDAA Compliant | Yes |
FAQs
What is the Ubiquiti NSM2(US)?
It is a 2.4 GHz NanoStation M2 indoor/outdoor airMAX CPE with an integrated dual-linear antenna.
What frequency does the NSM2 operate on?
The specified operating frequency range is 2412–2462 MHz.
How many Ethernet ports does the NSM2 have?
The NSM2 has two 10/100 MbE RJ45 networking ports.
What PoE adapter is included?
Ubiquiti specifies a 24 V, 0.5 A passive PoE adapter as included with the unit.
What is the antenna gain?
The integrated antenna has a specified gain range of 10.4–11.2 dBi.
What is the difference between NSM2 and LocoM2?
The NSM2 is the larger NanoStation M2 model with two Ethernet ports and 10.4–11.2 dBi gain. LocoM2 is a smaller model with one Ethernet port and 8.5 dBi gain.
