Overview

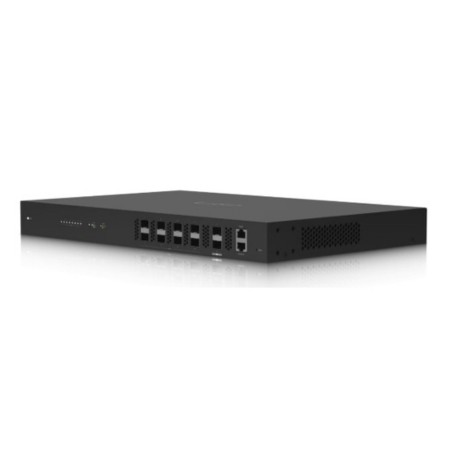

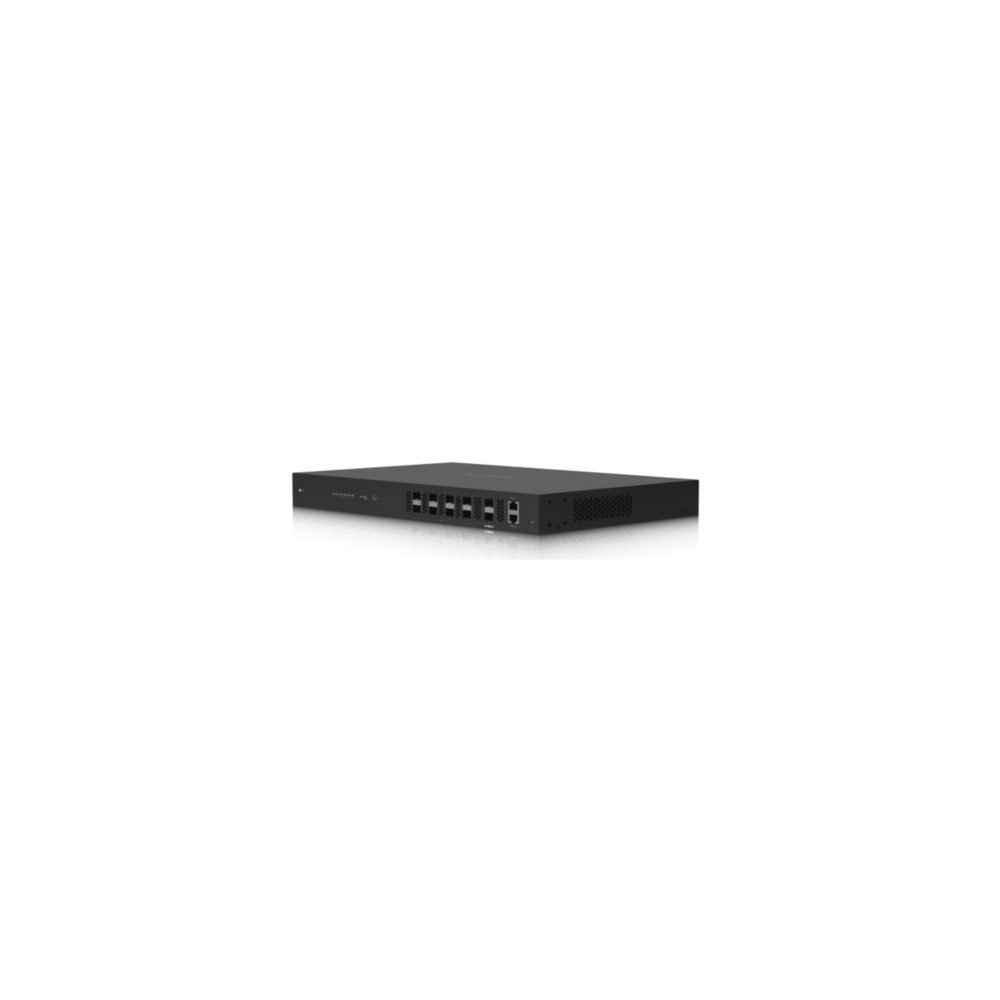

The Ubiquiti UF-OLT is an 8-port GPON optical line terminal designed for fiber access networks. It provides eight GPON OLT SFP ports, two 10 Gbps SFP+ uplink ports, and support for up to 1,024 registered ONUs or ONTs, with up to 128 clients per GPON port.
GPON and Uplink Connectivity
Each GPON interface supports a nominal downstream rate of 2.48832 Gbit/s and upstream rate of 1.24416 Gbit/s. The optical interface uses 1490 nm transmission and 1310 nm reception, with a specified physical reach of up to 20 km. Two SFP+ ports provide 1G/10G uplink connectivity for aggregation toward the network core.
Management and Switching
The UF-OLT operates as an OLT GPON core and Layer 2 Ethernet switch. Management interfaces include Ethernet out-of-band management, Ethernet in-band management, an RJ45 serial console port, and Bluetooth. The platform supports up to 4,062 VLANs and advanced QoS with eight priority queues per user port and traffic classification.
Key Features
- Eight GPON OLT SFP ports for fiber access distribution
- Supports up to 1,024 registered ONUs/ONTs, with up to 128 per GPON port
- Two 1G/10G SFP+ ports for high-speed uplinks
- GPON nominal rates of 2.48832 Gbit/s downstream and 1.24416 Gbit/s upstream
- Dual hot-swappable AC/DC power supplies for serviceable power redundancy
DC Supplies Product Note
The UF-OLT uses GPON OLT SFP modules in its eight PON ports rather than fixed optical connectors. Ubiquiti specifies UF-GP-B+ and UF-GP-C+ modules for the Fiber OLT's GPON SFP ports. GPON SFP modules and compatible ONUs/ONTs should therefore be selected separately according to the optical budget and network design.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UF-OLT |
|---|
| Product Type | GPON Optical Line Terminal |
|---|
| Product Family | UISP Fiber / UFiber |
|---|
| GPON OLT Ports | 8 × GPON SFP |
|---|
| SFP+ Uplink Ports | 2 × 1G/10G SFP+ |
|---|
| Concurrent Clients | 1,024 ONUs/ONTs registered |
|---|
| Clients per GPON Port | 128 |
|---|
| GPON Downstream Rate | 2.48832 Gbit/s |
|---|
| GPON Upstream Rate | 1.24416 Gbit/s |
|---|
| Operating Wavelength | 1490 nm TX / 1310 nm RX |
|---|
| Physical Reach | 20 km |
|---|
| VLAN Support | 4,062 VLANs |
|---|
| QoS | 8 priority queues per user port with traffic classification |
|---|
| Management Interfaces | Ethernet Out-of-Band, Ethernet In-Band, RJ45 Serial Console, Bluetooth |
|---|
| Power Method | 100–240V AC, 50/60 Hz |
|---|
| Power Supply | 2 × Hot-swappable AC/DC PSU |
|---|
| Maximum Power Consumption | 40 W, excluding SFP modules |
|---|
| Mounting | Rackmount |
|---|
| Dimensions | 442.4 × 285.6 × 43.7 mm |
|---|
| Weight | 4.4 kg without mounting brackets; 4.5 kg with mounting brackets |
|---|
| Enclosure Material | SGCC steel |
|---|
| Operating Temperature | -10 to 45 °C |
|---|
| Operating Humidity | 10–90% noncondensing |
|---|
| Certifications | CE, FCC, IC |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
How many GPON ports does the UF-OLT have?
The UF-OLT has eight GPON OLT SFP ports.
How many ONUs or ONTs can the UF-OLT support?
It supports up to 1,024 registered ONUs/ONTs, with up to 128 clients assigned to each GPON port.
What uplink interfaces are available?
The UF-OLT provides two 1G/10G SFP+ ports for uplink connectivity.
What is the maximum GPON fiber reach?
Ubiquiti specifies a physical reach of up to 20 km for the GPON interface.
Are GPON SFP modules included?
The GPON interfaces use separate GPON OLT SFP modules. Ubiquiti specifies UF-GP-B+ and UF-GP-C+ modules for use with the Fiber OLT.
What power supply configuration does the UF-OLT use?
The current Ubiquiti specifications list two hot-swappable AC/DC power supplies and a 100–24
