Detailed Specifications

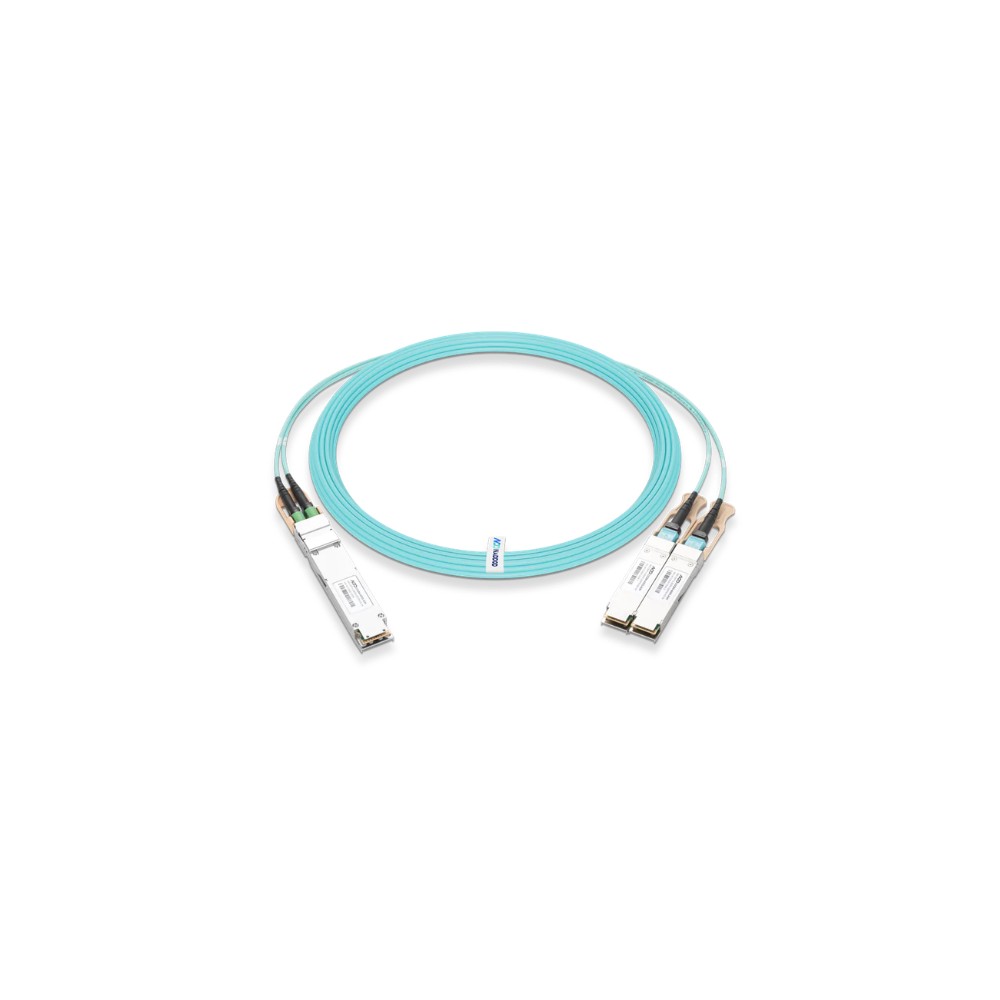

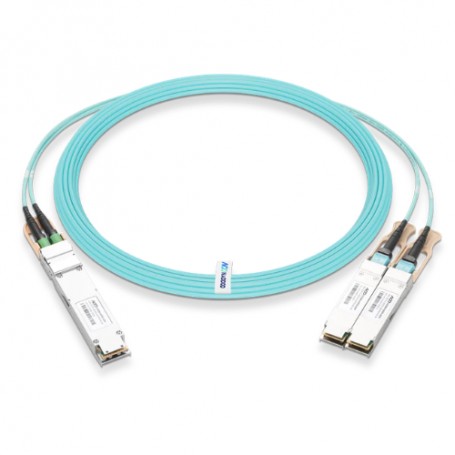

Nvidia MFA7U10-H010 400G OSFP to 2 200G Breakout AOC Cable
Overview :
The Nvidia MFA7U10-H010 is an active optical breakout cable that splits one 400 Gb/s OSFP port into two 200 Gb/s QSFP56 ports for high-speed fabric connections. It serves data center and HPC networking engineers needing efficient rack-to-rack or server to switch links over multimode fiber. With a fixed 10 m length, the cable supports 400 Gb/s aggregate throughput and uses PAM4 modulation with an 850 nm VCSEL transmitter. It is compliant with OSFP and CMIS standards for Ethernet and InfiniBand HDR connected systems.
Key Features :
OSFP to 2× QSFP56 active optical breakout
400 Gb/s split into 2×200 Gb/s links
10 m multimode fiber cable
DDM support with low bend radius
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Nvidia |
| Part Number | MFA7U10-H010 |
| Product Type | Active Optical Breakout Cable |
| Aggregate Data Rate | 400 Gb/s (2 × 200 Gb/s) |
| Form Factor | OSFP to 2× QSFP56 |
| Cable Length | 10 m (33 ft) |
| Fiber Type | Multimode fiber (MMF) |
| Optical Modulation | PAM4 |
| Transmitter | 850 nm VCSEL |
| Receiver | PIN photodiode |
| Minimum Bend Radius | 30 mm |
| Power Consumption | OSFP ≤ 8 W, QSFP56 ≤ 4 W |
| Operating Temp. | 0 - 70 °C |
| Supported Protocols | CMIS 4.0, SFF-8636, IEEE 802.3cd, OSFP Rev.5.0 |
| DDM/DOM | Supported |
