Detailed Specifications

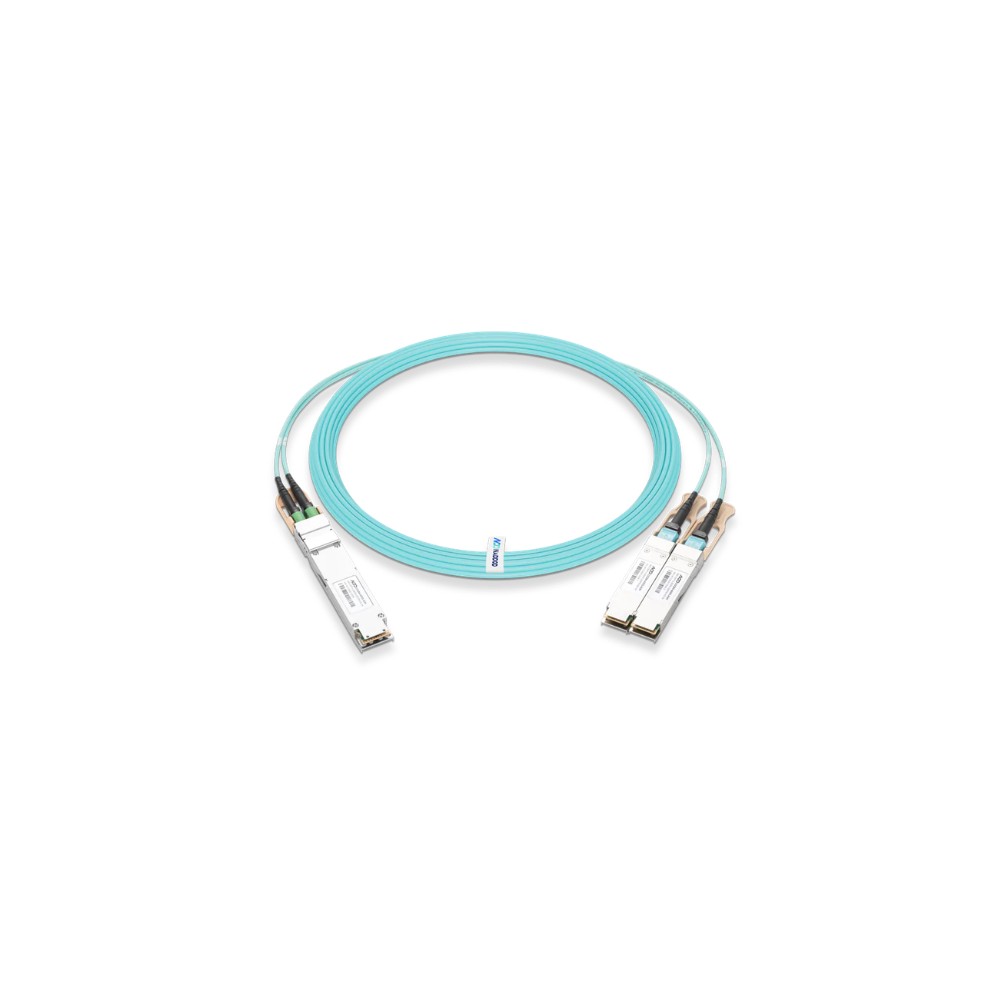

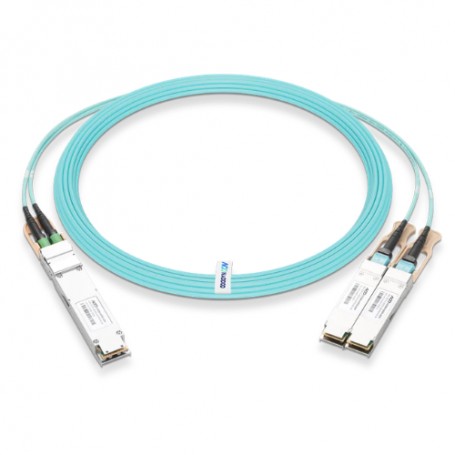

Nvidia MFA7U10-H030-FLT 400G OSFP to 2 200G AOC Breakout Cable
Overview :
The Nvidia MFA7U10-H030-FLT is an active optical breakout cable that splits one 400 Gb/s OSFP port into two 200 Gb/s QSFP56 ports over multimode fiber. It is used by data center engineers to interconnect high-speed switches or adapters in InfiniBand HDR or 400 GbE fabrics while preserving signal integrity at longer reach than passive copper. With a fixed 30 m length, it is suitable for rack-to-rack or row-to-row links in high-density deployments. The flat-top OSFP end assures proper fit when space is constrained in systems with clustered transceiver bays.
Key Features :
Active optical breakout AOC cable
OSFP to dual QSFP56,400 → 2×200 Gb/s
30 m multimode fiber reach
Flat-top OSFP form factor
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Nvidia |
| Part Number | MFA7U10-H030-FLT |
| Product Type | Active Optical Breakout Cable |
| Aggregate Data Rate | 400 Gb/s split to 2×200 Gb/s |
| Interface | OSFP to 2×QSFP56 |
| Cable Length | 30 m |
| Fiber Type | Multimode fiber (MMF) |
| Wavelength | 850 nm VCSEL |
| Modulation | PAM4 |
| Minimum Bend Radius | 30 mm |
| Power Consumption | ≤ 10 W (OSFP) / ≤ 5 W (QSFP56) |
| Protocols | IEEE 802.3cd, CMIS 4.0, SFF-8636 |
| Operating Temp. | 0 - 70 °C |
| Jacket Material | LSZH / OFNP |
