Detailed Specifications

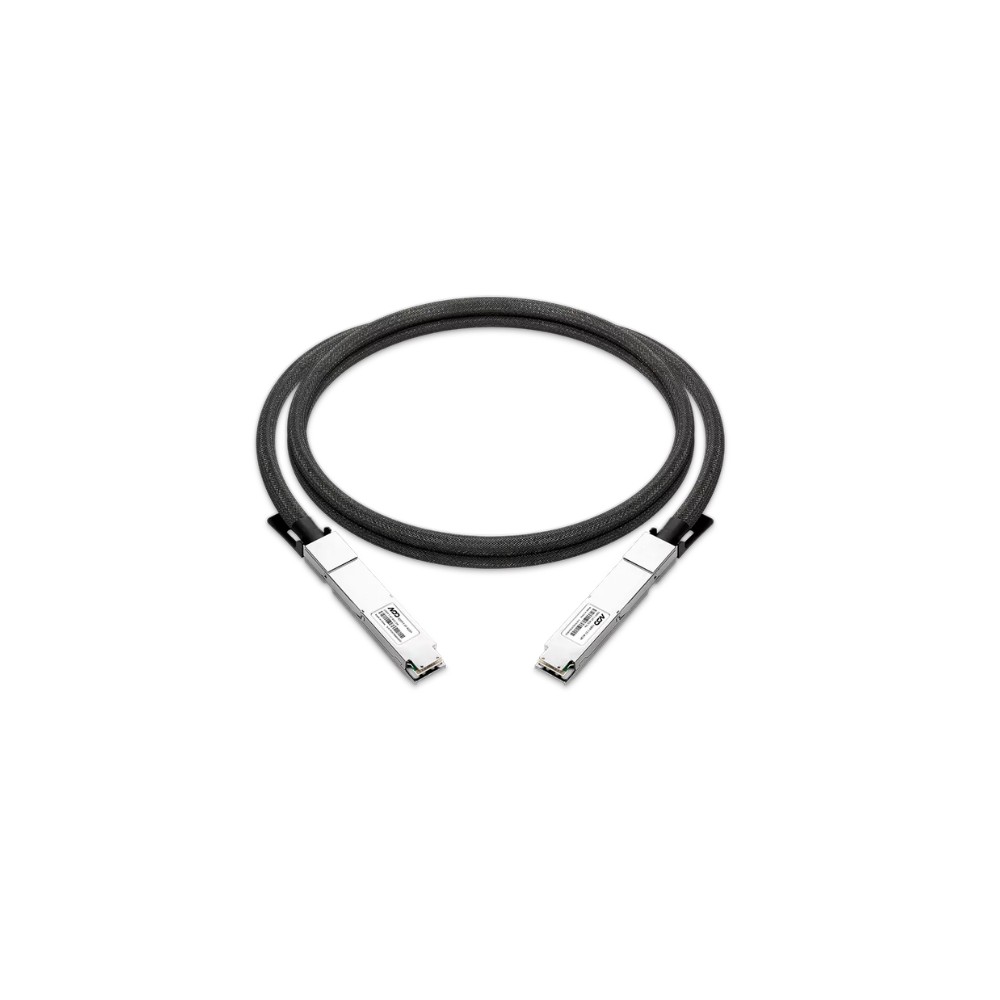

NVIDIA 980-9IAM3-00X002 1600Gbps OSFP DAC Cable
Overview
The NVIDIA 980-9IAM3-00X002 is a 1600 Gbps OSFP active copper direct-attach cable used to interconnect switches and GPU servers in AI and high-performance computing fabrics. It provides ultra-high bandwidth and low latency using active copper signaling for short-reach, high-density deployments. The 2-meter length is optimized for rack-level connections while maintaining signal integrity at XDR speeds. It is commonly deployed with NVIDIA Quantum-X800 InfiniBand platforms and high-density data center networks.
Key Features
1600Gbps XDR high-speed copper interconnect
OSFP-to-OSFP active direct-attach design
2 m reach for rack-level connectivity
Low-latency link for AI cluster fabrics
Technical Specifications
| Specification | Details |
|---|
| Brand | NVIDIA |
| Part Number | 980-9IAM3-00X002 |
| Product Type | Active copper direct-attach cable |
| Data Rate | 1600 Gbps |
| Connector Type | OSFP to OSFP |
| Cable Length | 2 m |
| Cable Technology | Active copper |
| Signaling | PAM4 modulation |
| Wire Gauge | 26 AWG |
| Characteristic Impedance | 100 Ω (typical) |
| Typical Latency | ~75 ns |
| Minimum Bend Radius | 90 mm |
| Cable Diameter | ~10.5-11.5 mm |
| Application | InfiniBand XDR / 1600GbE interconnect |
