Detailed Specifications

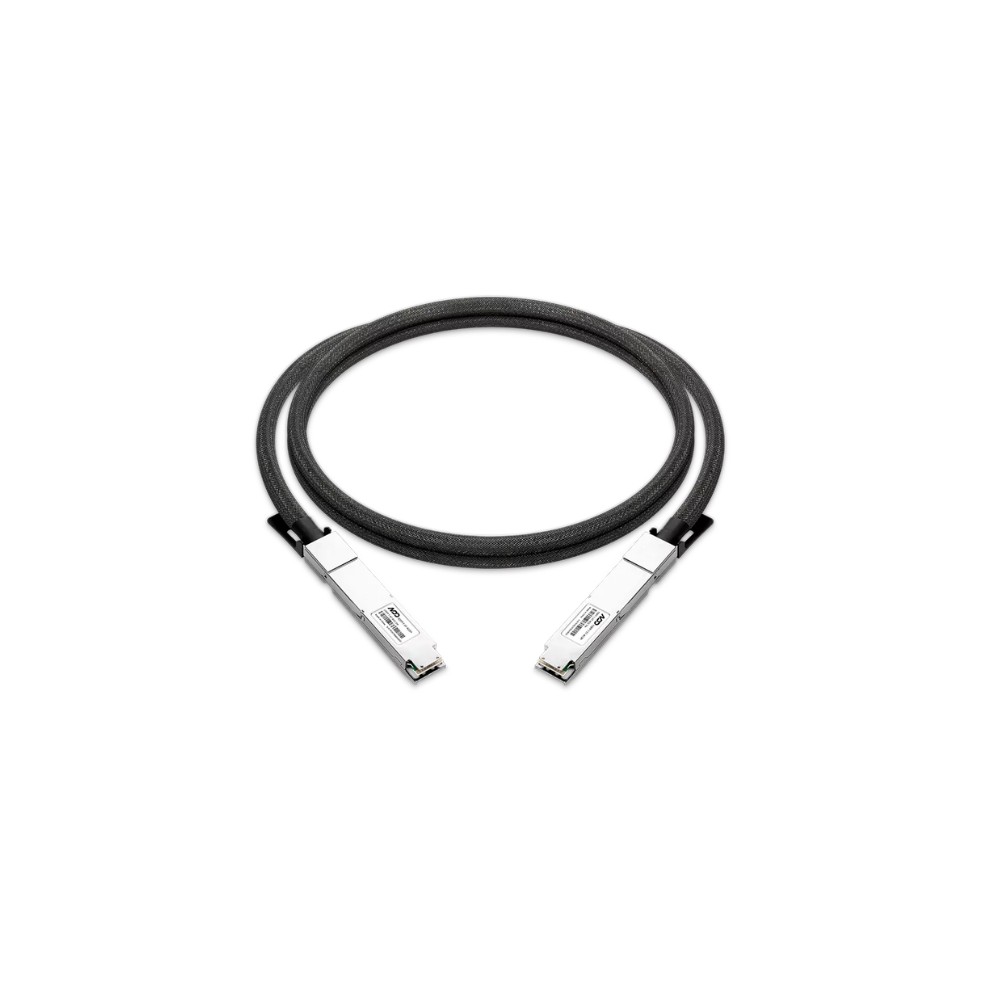

NVIDIA 980-9IAM3-00X003 1600Gbps OSFP DAC Cable
Overview :
The NVIDIA 980-9IAM3-00X003 is a 1600 Gbps OSFP active copper direct-attach cable designed for high-bandwidth switch-to-switch and switch-to-GPU server connectivity in AI and HPC fabrics. It delivers ultra-high throughput with low latency using integrated active copper technology and PAM4 signaling. The 3-meter length supports rack-level interconnects while maintaining signal integrity at XDR speeds. It is commonly deployed in NVIDIA Quantum-X800 InfiniBand and high-density data center environments.
Key Features :
1600Gbps XDR high-speed copper interconnect
OSFP-to-OSFP active direct-attach design
3 m reach for rack-level connectivity
Low-latency link for AI cluster fabrics
Technical Specifications :
| Specification | Details |
|---|
| Brand | NVIDIA |
| Part Number | 980-9IAM3-00X003 |
| Product Type | Active copper direct-attach cable |
| Data Rate | 1600 Gbps |
| Connector Type | OSFP male to OSFP male |
| Cable Length | 3 m |
| Cable Technology | Active copper |
| Signaling | PAM4 electrical modulation |
| Wire Gauge | 26 AWG |
| Characteristic Impendance | 100 Ω (typical) |
| Typical Latency | ~75 ns |
| Minimum Bend Radius | 90 mm |
| Cable Diameter | ~10.5-11.5 mm |
| Application | InfiniBand XDR / 1600GbE interconnect |
