Opengear 450041 – External DC-DC Power Converter (18V–72V DC Input)

Overview :

The Opengear 450041 is an industrial-grade external DC-DC power supply converter engineered specifically for Opengear ACM7000 Series Resilience Gateways deployed in direct-current (DC) powered telecom, utility, and industrial IT infrastructure. Designed to operate in environments where standard AC utility power is unavailable, this power converter accepts a wide wide-input range of 18V to 72V DC (covering standard -48V DC telecom environments and 24V DC industrial systems) and delivers clean, regulated power directly to the gateway via a 5-foot cable with a secure 4-pin locking connector.

Technically, the 450041 functions as a high-reliability DC power supply kit, replacing traditional AC desktop adapters with an isolated, continuous DC power source. It is ideal for deployment in remote telecommunication huts, cellular base stations, power sub-stations, and off-grid facilities requiring resilient out-of-band management hardware powered directly by central DC battery plants or solar/generator systems.

Key Features :

• Wide DC Input Compatibility: Accepts an input voltage range from 18V DC to 72V DC, making it compatible with nominal 24V DC and -48V DC power environments.

• Purpose-Built for ACM7000: Engineered specifically for the Opengear ACM7000 Resilience Gateway family (including ACM7004-2, ACM7004-5, and ACM7008-2 series).

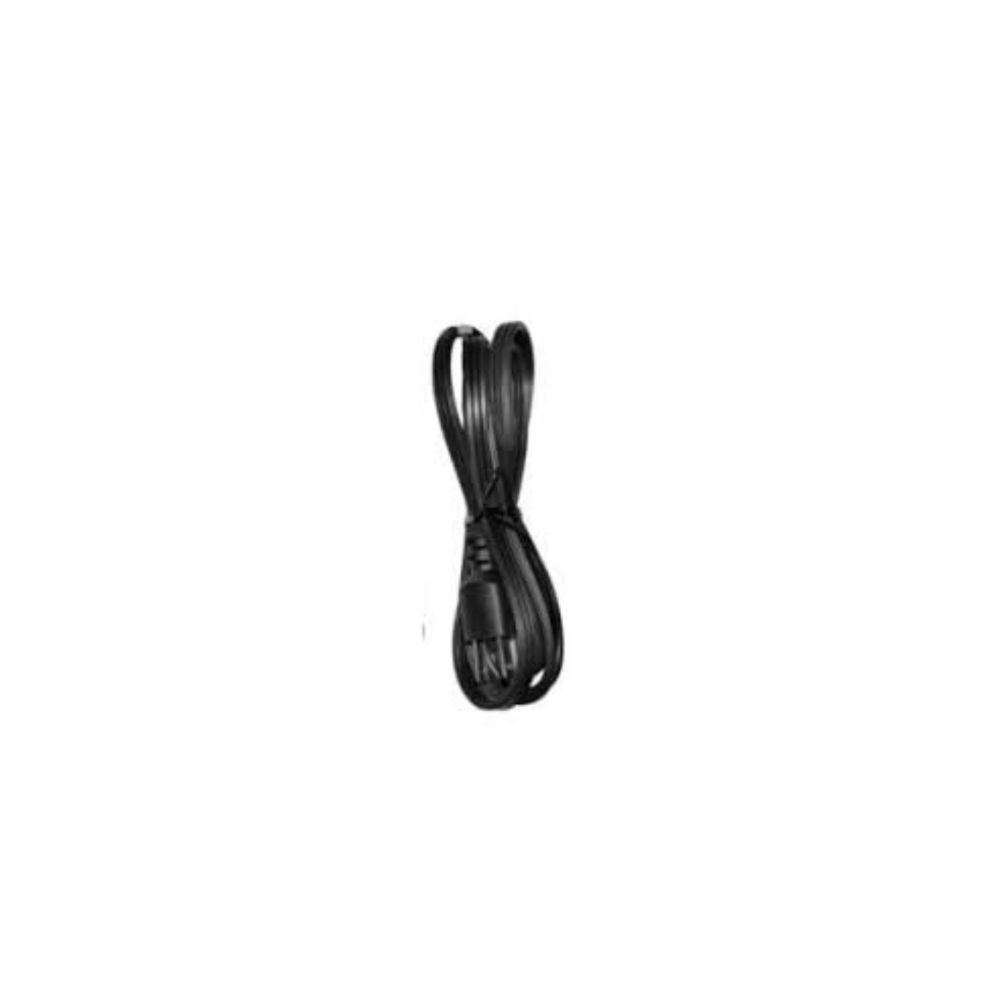

• Integrated 5-Foot Cable: Comes equipped with a 5-foot (1.5 m) cable terminate with a secure 4-pin connector designed specifically for ACM7000 power inputs.

• Telecom & Industrial Grade: Designed for continuous operational reliability in remote sites, central offices, and industrial cabinet installations.

• Compact External Form Factor: Simple inline adapter layout minimizes space requirements inside rack cabinets and wall-mount enclosures.

Specifications :
