Detailed Specifications

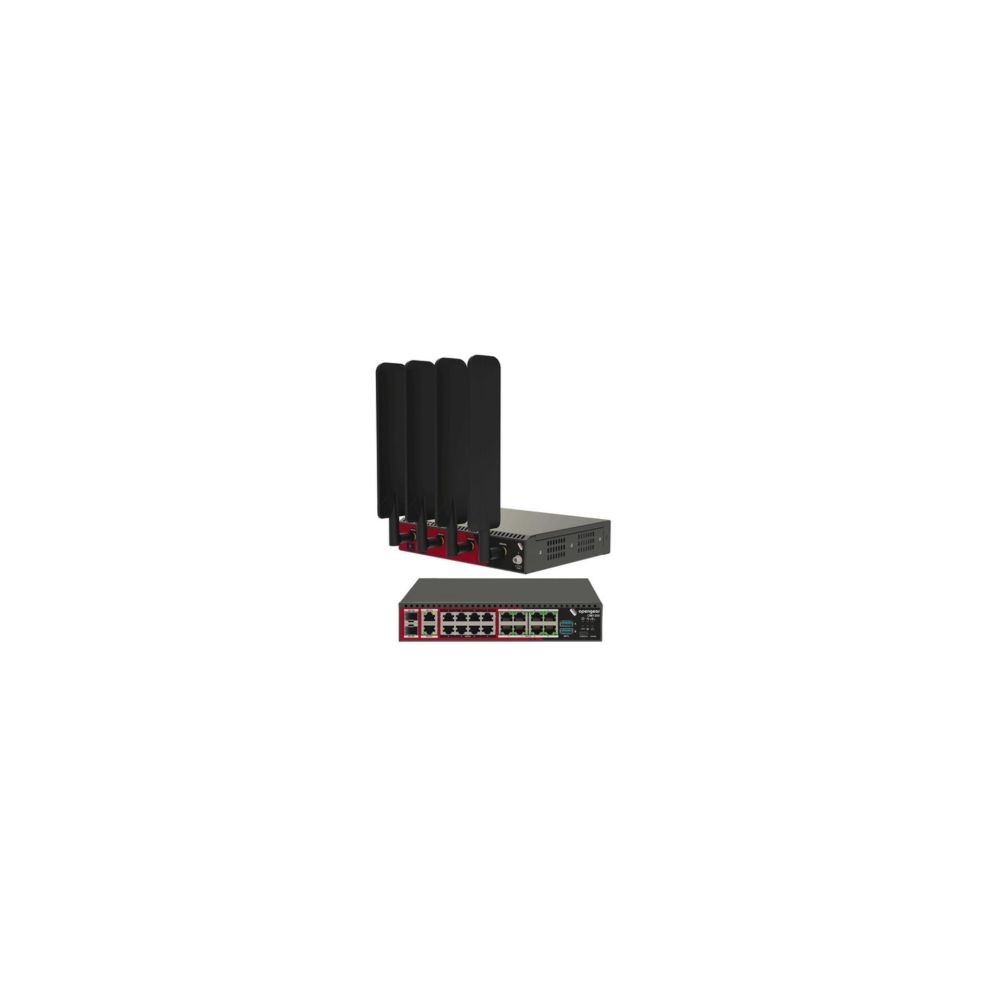

Opengear OM1308-8E-C - OM1300 Operations Manager (8 Serial, 8 GbE Switch, Global 5G Sub-6 Cellular)
Overview :
The Opengear OM1308-8E-C is an all-in-one, compact Operations Manager appliance designed for edge environments, remote branch offices, retail locations, and industrial deployments.By integrating 8 software-selectable RJ45 RS-232 serial console ports, a managed 8-port Gigabit Ethernet switch, and an integrated Global 5G Sub-6 / 4G LTE Cat 20 cellular modem into a single fanless 1U chassis, the OM1308-8E-C delivers resilient Smart Out-of-Band (Smart OOB') management and primary WAN failover without requiring separate switching or wireless gateway hardware.
Powered by an ARM Cortex-A53 quad-core 1.6 GHz processor with 4 GB LPDDR4 RAM, 32 GB eMMC flash storage, and an embedded TPM 2.0 cryptoprocessor, the OM1308-8E-C natively supports edge automation workflows including Python scripting and Docker containerized applications.Featuring dual nano-SIM slots for carrier-level cellular redundancy, NetOps teams can manage, automate, and orchestrate the unit remotely through Opengear Lighthouse software to ensure uninterrupted network visibility during primary WAN outages.
Key Features :
Integrated Serial, Switching & 5G:Combines 8 software-selectable RS-232 serial ports, an 8-port GbE switch, and global 5G/4G cellular failover into a single platform.
Global 5G Cellular Failover:Features an integrated 5G Sub-6 GHz / LTE Cat 20 modem with dual nano-SIM slots for automatic WAN backup.
Dual Gigabit Uplinks: Equipped with 2 x combo 1GbE RJ45 / SFP ports for flexible wired primary and backup connections.
NetOps & Edge Automation: Supports Docker containers and Python scripts directly on the appliance for local automated remediation and zero-touch provisioning.
Enterprise Hardware Security:Integrated TPM 2.0 module safeguards encryption keys, system integrity, and secure boot operations.
Centralized Orchestration:Integrates seamlessly with Opengear Lighthouse for unified management and cloud-based orchestration.
Specifications :
| Attribute | Specification |
| Brand | Opengear |
| Model / Part Number | OM1308-8E-C |
| Product Series | OM1300 Operations Manager |
| Product Type | Out-of-Band Console Manager / Switch Appliance |
| Processor | ARM Cortex-A53 Quad-Core @ 1.6 GHz |
| Memory & Storage | 4 GB LPDDR4 RAM, 32 GB eMMC Flash |
| Serial Ports | 8 x RJ45 RS-232 (Software Selectable Cisco X1/X2 Pinout) |
| Switch Ports | 8 x RJ45 10/100/1000 Mbps Gigabit Ethernet |
| Uplink Ports | 2 x Combo 1000BASE-T RJ45 / 1000BASE-X SFP |
| Cellular Modem | 5G NR NSA/SA Sub-6 GHz / 4G LTE Cat 20 (Global Bands) |
| SIM Slots | 2 x Nano SIM (4FF) Slots |
| Antenna Connectors | 4 x External Detachable Cellular Antennas |
| Local Console Port | 1 x USB-C Console Port |
| USB Ports | 2 x USB 3.0 Type-A Host Ports |
| Security & Auth | TPM 2.0, IPSec, OpenVPN, TACACS+, RADIUS, Active Directory |
| Power Supply | External AC/DC Power Adapter (12V DC Input) |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Certifications | CE, FCC, RoHS, REACH, C-Tick |
