Overview

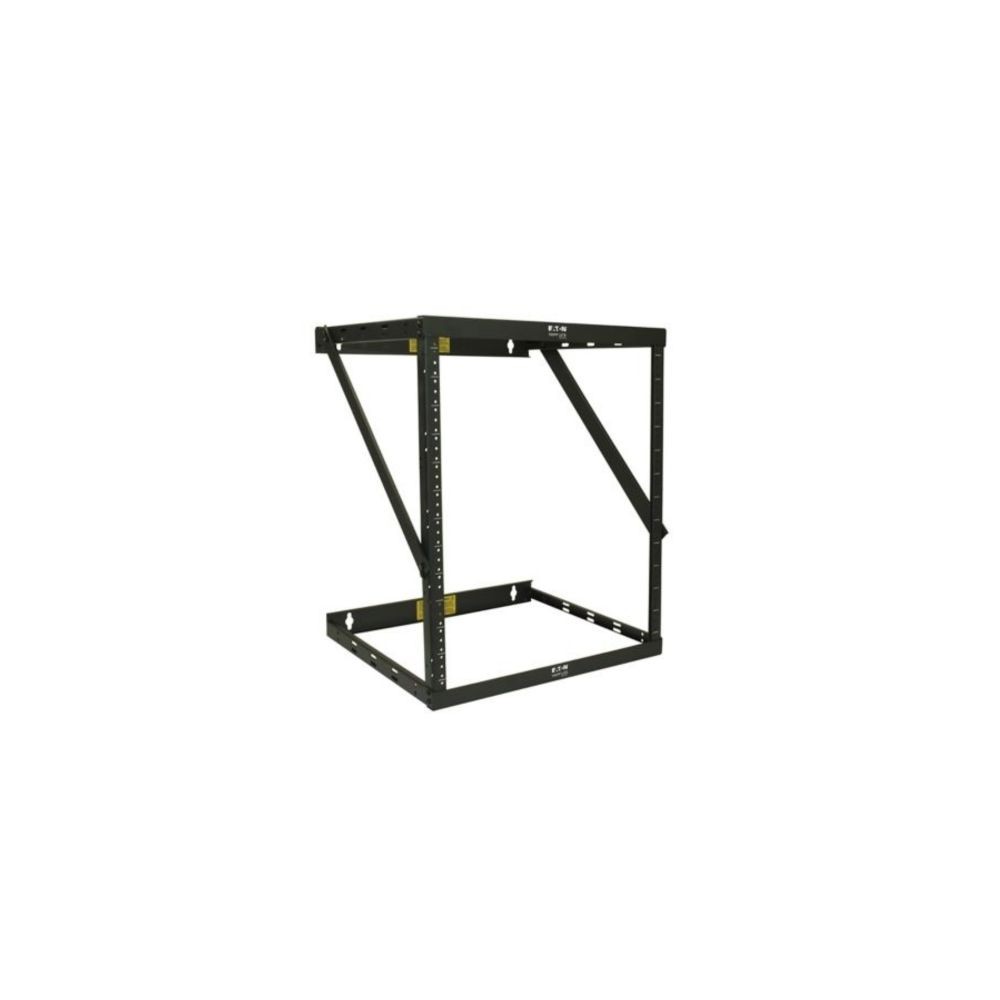

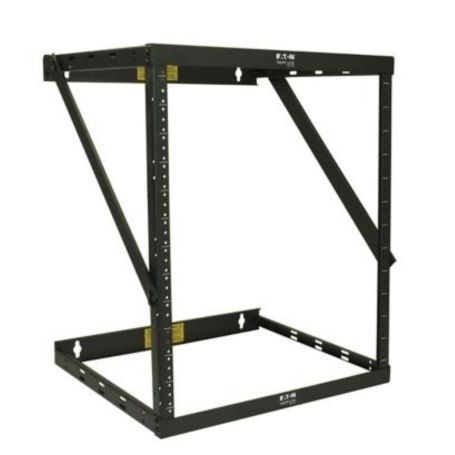

The Eaton Tripp Lite SRWO8U22 SmartRack is an expandable 2-post open frame rack designed for organizing EIA-standard 19-inch rack equipment where an enclosed cabinet is not required. Its adjustable configuration supports 8U, 12U, or 22U of rack space, making it suitable for installations that may need additional rack capacity over time.
Technical Information
The rack supports equipment up to 18 inches deep and has a maximum load rating of 150 lb (68 kg). Its open-frame construction provides direct access to installed equipment and cabling. The vertical mounting rails use threaded #12-24 mounting holes for compatible rack equipment.
Compatibility
- Accommodates standard 19-inch EIA/ECA-310-E rack equipment.
- Supports equipment up to 18 inches deep.
- Compatible with 2-post rack-mount equipment using #12-24 threaded mounting holes.
- Configurable for 8U, 12U, or 22U of rack space.
Key Features
- Expandable 8U/12U/22U rack configuration
- 2-post open-frame design for direct equipment and cable access
- 150 lb (68 kg) maximum load capacity
- Threaded #12-24 equipment mounting holes
- Heavy-duty steel construction with black finish
Applications
The SRWO8U22 is suited to network wiring closets, back offices, and other IT locations with limited floor space. Its open design is useful where convenient access to rack-mounted networking and infrastructure equipment is more important than a lockable enclosure.
DC Supplies Product Note
The adjustable 8U/12U/22U configuration allows the same rack frame to accommodate different installation requirements, while the 18-inch equipment-depth limit should be checked against the depth of the equipment before installation.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | SRWO8U22 |
| Product Type | 2-Post Open Frame Rack |
| Series | SmartRack |
| Rack Capacity | 8U / 12U / 22U adjustable |
| Rack Width | 19-inch equipment mounting |
| Equipment Mounting Depth | 18 in. (452 mm) |
| Maximum Load Capacity | 150 lb. (68 kg) |
| Mounting Rails | 2 vertical rails |
| Mounting Holes | #12-24 threaded |
| Construction | Steel |
| Color | Black |
| Overall Dimensions | 42.3 x 20.11 x 18.24 in. at 22U configuration |
| Product Weight | 15.03 lb. |
| Mounting Style | Wall-mount / 2-post open frame |
| Standard | EIA-310-E |
| Compliance | RoHS |
| Warranty | 5-year limited warranty |
| UPC | 037332156778 |
Package Contents
SRWO8U22 open frame rack
M5 button-head cap screws (8)
3 mm hex key
#12-24 rackmount equipment mounting screws (24)
Owner's manual
FAQs
What rack sizes can the SRWO8U22 provide?
The frame can be configured for 8U, 12U, or 22U of rack space.
What equipment depth can it accommodate?
The specified equipment mounting depth is up to 18 inches (452 mm).
What is the maximum load?
The maximum load rating is 150 lb (68 kg).
Does it use standard 19-inch rack equipment?
Yes. It is designed for EIA/ECA-310-E standard 19-inch rack equipment and uses threaded #12-24 mounting holes.
Is this an enclosed rack cabinet?
No. The SRWO8U22 is an open-frame 2-post rack, providing direct access to installed equipment and cabling.
