Detailed Specifications

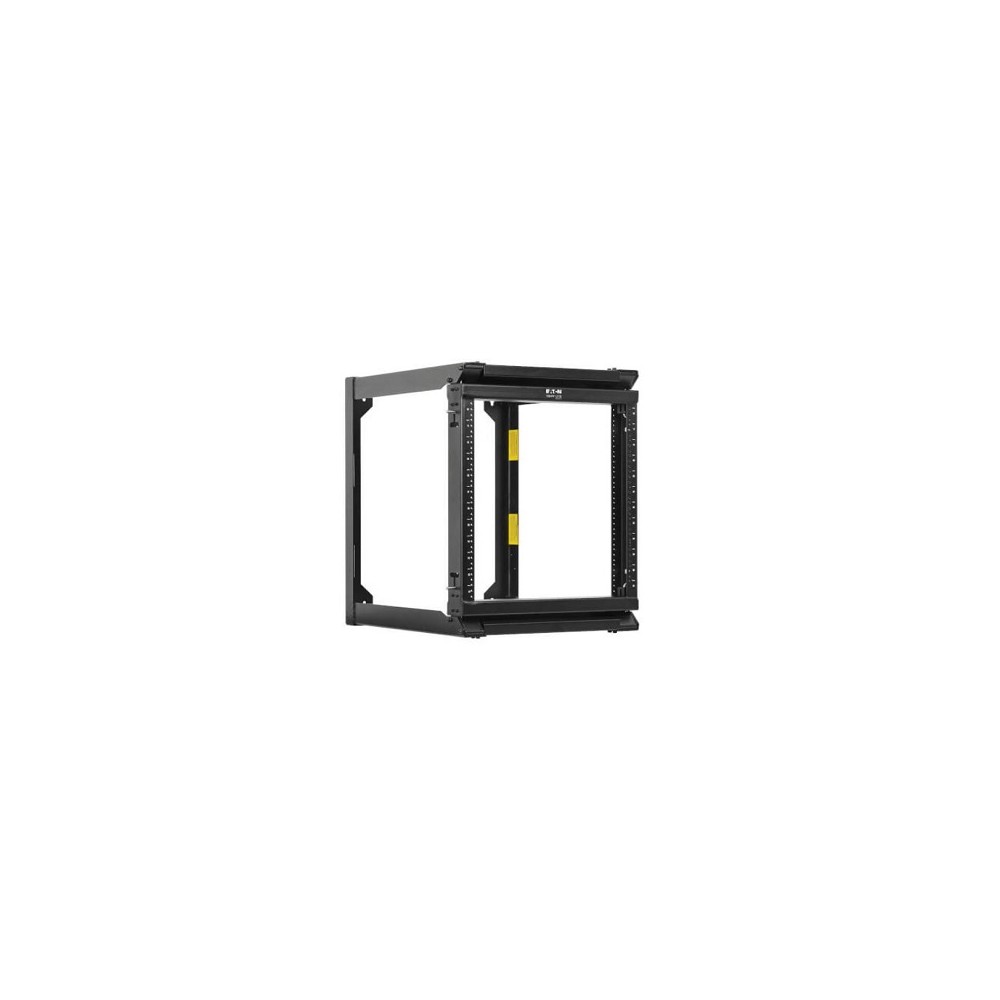

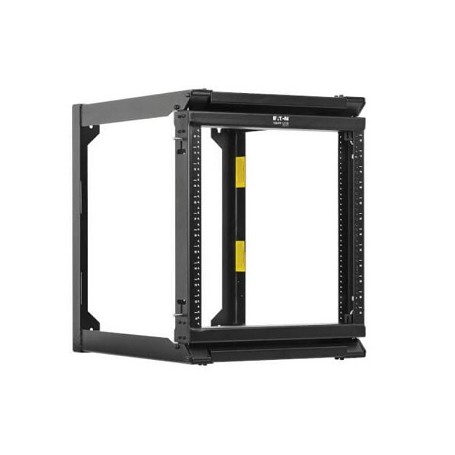

Eaton SRWO12US2 SmartRack 12U Wall-Mount 2-Post Open Frame Rack Compatible Tripp Lite
Overview
The Eaton SRWO12US2 SmartRack is a heavy-duty 12U, 2-post open-frame wall-mount rack designed for standard 19-inch rack equipment. It supports equipment up to 22 inches deep and provides a hinged front section for convenient access to rear cabling and equipment. Keyhole wall-mount slots are spaced 16 inches apart for standard wall-stud placement.
Key Features
- 12U wall-mount 2-post open-frame rack
- Fits standard 19-inch rack equipment
- Supports equipment up to 22 inches deep
- 150 lb maximum static load capacity
- Hinged front provides easy rear access
- 16-inch-spaced keyhole mounting slots
- Heavy-duty steel construction
- Black finish
- Assembly hardware included
- Built-in cable management
- Shallow rack depth
- 5-year limited worldwide warranty
- RoHS compliant
- EIA-310-E compliant
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Model / Part Number | SRWO12US2 |
| Product Type | Wall-Mount Open Frame Rack |
| Rack Series | SmartRack |
| Rack Units | 12U |
| Rack Type | 2-Post Open Frame |
| Equipment Width | 19 in |
| Maximum Device Depth | 22 in |
| Maximum Static Load | 150 lb (68 kg) |
| Mounting Type | Wall Mount |
| Front Access | Hinged / Swinging |
| Mounting Rail Quantity | 2 |
| Wall Stud Spacing | 16 in |
| Material | Steel |
| Color | Black |
| Rack Depth | Shallow |
| Assembly | Required |
| Cable Management | Built-in |
