Detailed Specifications

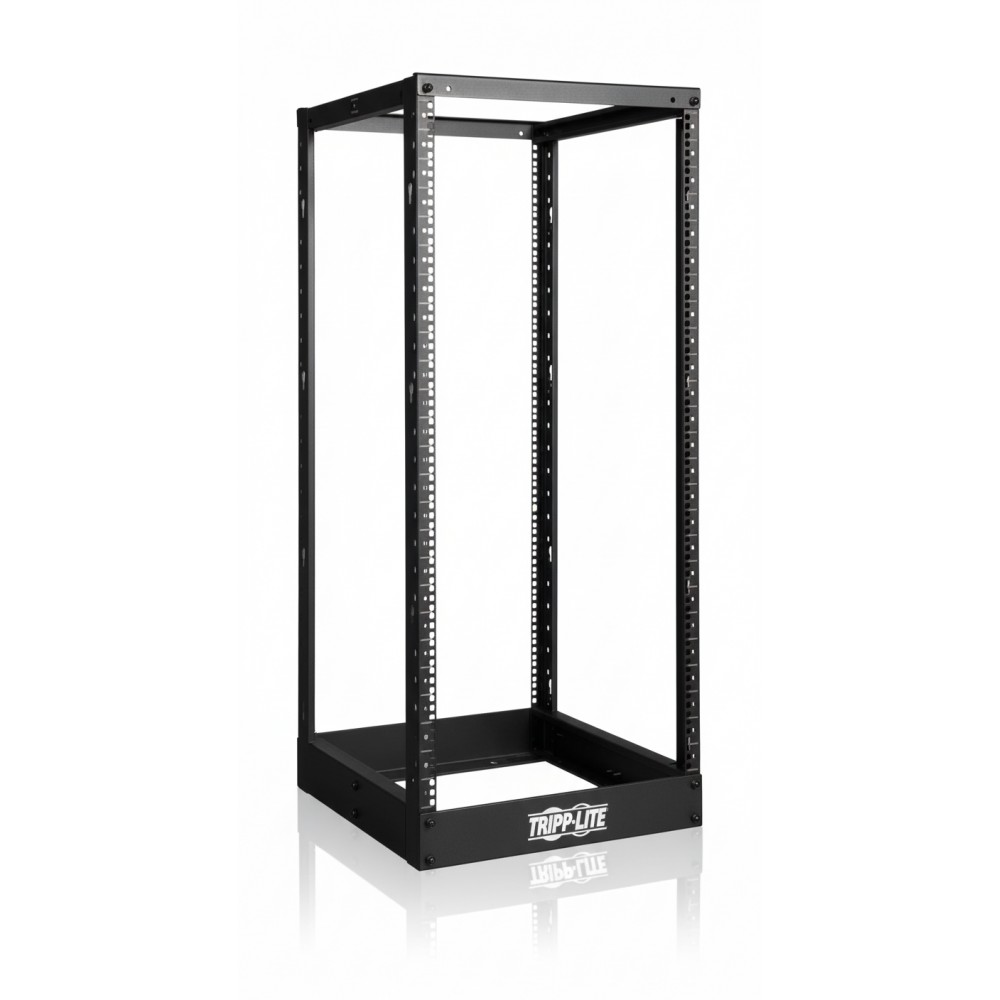

Eaton Tripp Lite SR4POST25 - 25U Open Frame Rack
Overview :
The SR4POST25 is a 25-U open-frame 4-post rack frame designed for network closets, branch IT rooms and edge deployments where full enclosure is not required. It supports standard 19-inch rack-mount equipment and addresses the need for accessible airflow and easy cabling access. Its mounting rails are adjustable from 22 to 36 inches deep, accommodating diverse equipment footprints in a compact footprint. The frame is constructed from cold-rolled steel with a black powder-coat finish and integrates toolless button-hole mounting for vertical PDUs or cable management accessories, making it suitable for integration into larger rack arrays or standalone installations.
Key Features :
Supports up to 1,000 lb (453.6 kg) of installed equipment.
Adjustable mounting depth from 22 to 36 inches.
Toolless button-hole mounting for vertical PDU/cable manager.
Self-squaring design with bolt-down provisions for side-by-side installations.
Specification :
| Specification | Detail |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | SR4POST25 |
| Product Type | 4-Post Open Frame Rack |
| Rack Units | 25U |
| Rack Type | Open Frame, 4-Post |
| Frame Material | Cold-rolled steel |
| Mounting Width | 19 inches |
| Adjustable Mounting Depth | 22 to 36 inches |
| Maximum Weight Capacity | 1000 lbs |
| Overall Height | 50 inches |
| Overall Width | 20.25 inches |
| Overall Depth | 36 inches |
| Weight | 37 lbs |
| Color | Black |
| Assembly Required | Yes |
| Compliance Standards | EIA-310-D |
| Environment | Indoor use |
