Detailed Specifications

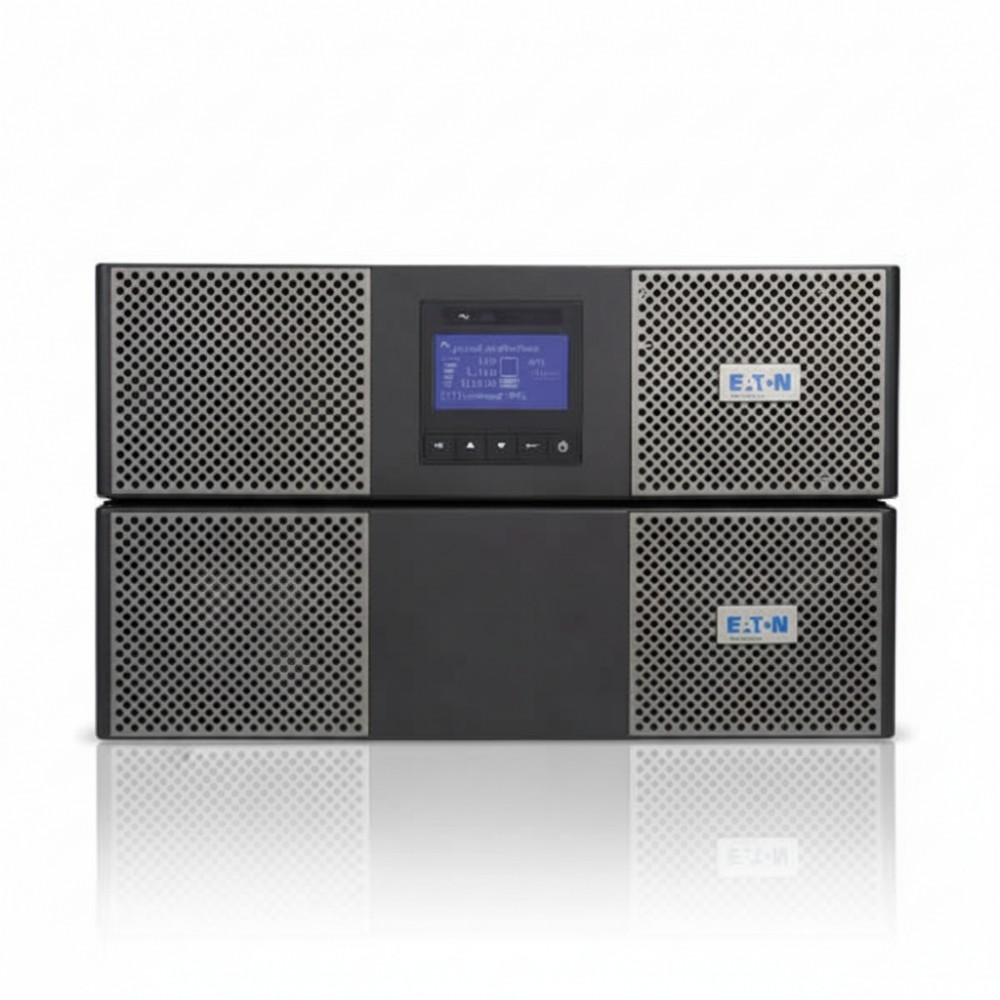

Eaton 9PX6KTF5 - 6kVA Online Double-Conversion UPS
Overview:
The Eaton 9PX6KTF5 is a 6kVA / 5400W online double-conversion uninterruptible power supply (UPS) designed for mission-critical IT infrastructure. It provides reliable battery backup and AC power protection against blackouts, brownouts, surges, and line noise that can damage valuable IT equipment or destroy data. The UPS features a 6U rack/tower convertible form factor, making it suitable for both rack-mounted and standalone deployments. With 120/208V output and a variety of outlet configurations, it offers flexibility for various IT environments. The included Network-M2 Web/SNMP card enables remote monitoring and management, enhancing operational efficiency.
Key Features:
True online double-conversion topology
6U rack/tower convertible form factor
18x 5-20R, 2x L6-20R, 1x L6-30R outlets
Network-M2 Web/SNMP card included
Full system self-test at power-up
Specifications:
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 9PX6KTF5 |
| Product Type | Online Double-Conversion UPS |
| Power Rating | 6000 VA / 5400 W |
| Input Voltage | 200/208/220/230/240 VAC (nominal 208V) |
| Input Connection | L6-30P |
| Input Cord Length | 6 ft |
| Input Frequency Range | 50-70 Hz (60 Hz nominal), 40-60 Hz (50 Hz nominal) |
| Output Voltage | 120/240 VAC |
| Output Receptacles | 18x 5-20R, 2x L6-20R, 1x L6-30R |
| Topology | Double-conversion online |
| Form Factor | 6U Rack/Tower |
| Dimensions (HxWxD) | 10.2 x 17.3 x 28.4 inches (259 x 439 x 721 mm) |
| Weight | 201 lbs (91.2 kg) |
| Efficiency | Up to 93% with resistive load |
| Warranty | 3 years |
