Detailed Specifications

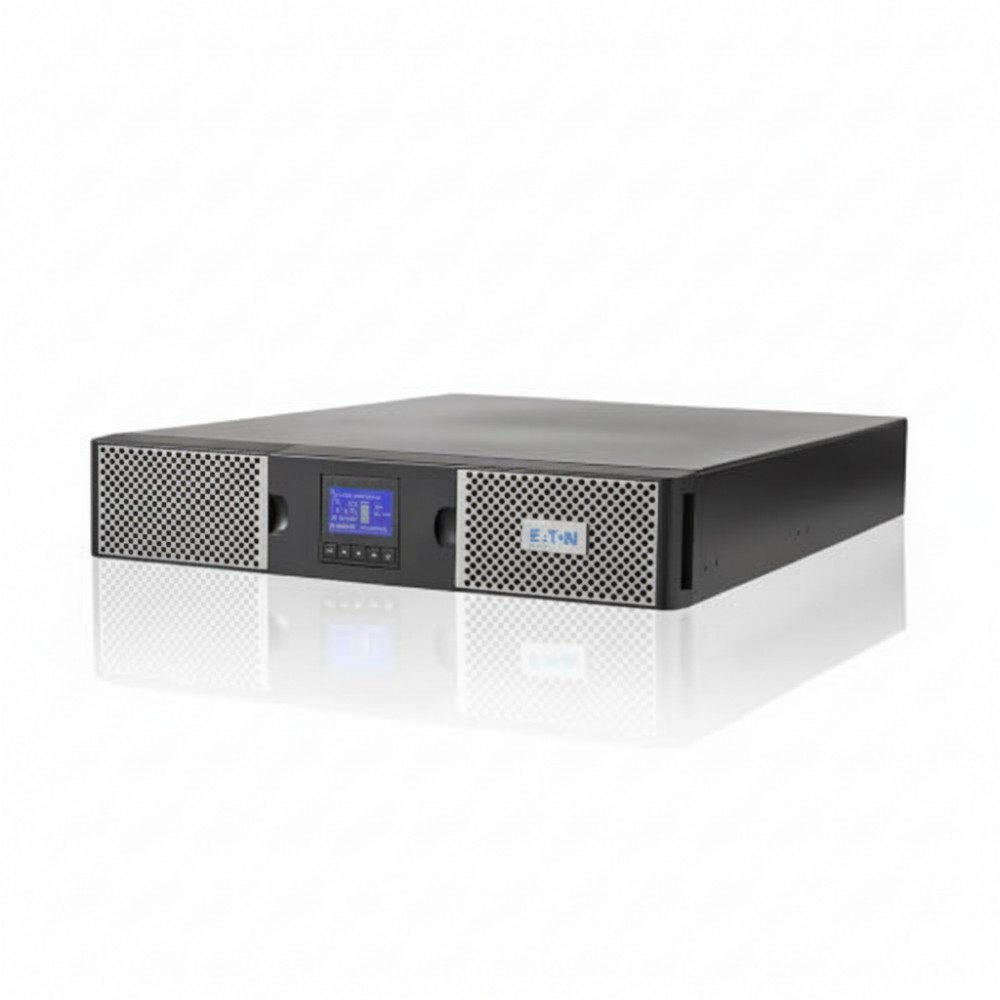

Eaton 9PX2200GRT-L - 2200 VA Lithium-Ion UPS
Overview :
The Eaton 9PX2200GRT-L is a 2U rack/tower convertible, double-conversion online UPS designed to provide reliable power protection for mission-critical IT equipment. With a 2200 VA / 2000 W capacity and lithium-ion batteries, it offers extended battery life and reduced maintenance compared to traditional lead-acid systems. This UPS is suitable for deployment in data centers, edge environments, and branch offices requiring compact, high-efficiency power protection. It supports both rack and tower installations, providing flexibility in various deployment scenarios.
Key Features :
2200 VA / 2000 W power capacity
Lithium-ion battery technology with 8-10 year lifespan
Rack/tower convertible with included mounting hardware
True sine wave output for sensitive equipment
Optional extended battery modules for increased runtime
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 9PX2200GRT-L |
| Product Type | Double-conversion Online UPS |
| Power Capacity | 2200 VA / 2000 W |
| Input Connection | NEMA L6-20P |
| Output Receptacles | (8) IEC 60320 C13, (2) IEC 60320 C19 |
| Nominal Input Voltage | 208 V AC |
| Nominal Output Voltage | 208 V AC |
| Output Frequency | 50/60 Hz |
| Output Waveform | True sine wave |
| Output Power Factor | 0.9 |
| Efficiency (Online Mode) | 93% |
| Battery Type | Lithium-ion (LiFePO₄) |
| Battery Replacement | Hot-swappable internal batteries |
| Extended Battery Support | Up to 4 EBMs (Part number 9PXEBM72RT-L) |
| Dimensions (H x W x D) | 3.41 x 17.32 x 23.82 inches |
| Weight | 48.72 lbs |
| Warranty | 5-year limited |
| Certifications | cTUVus, NOM, ICC-ES AC156 OSHPD Seismic certified |
