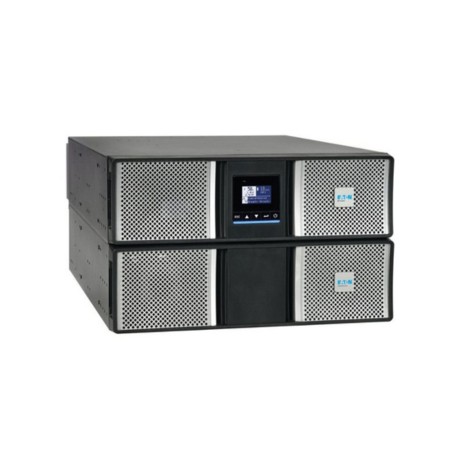

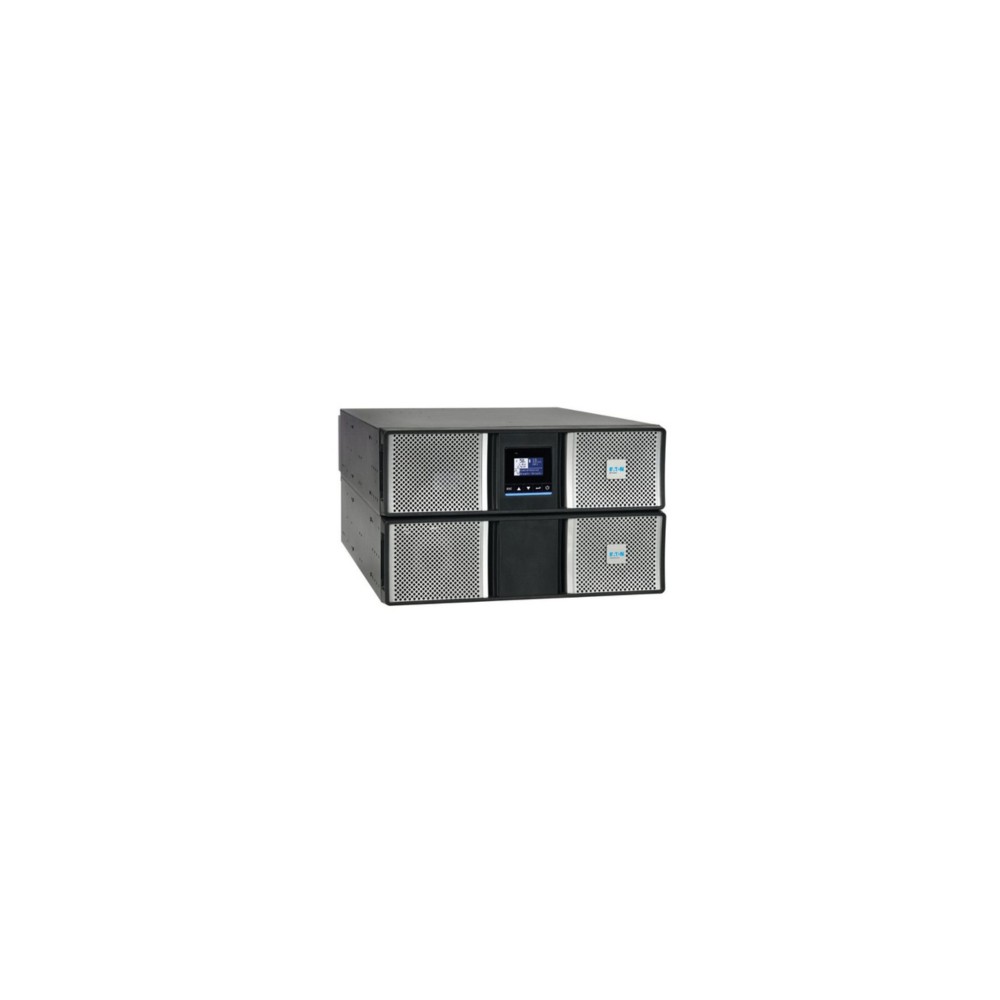

Eaton 9PX6KTF5G2 Online Double-Conversion UPS

Overview :

The Eaton 9PX6KTF5G2 (9PX Generation 2 Series) is a 6000VA/5400W online double-conversion uninterruptible power supply (UPS) system that includes a bundled 120V step-down power transformer. Enterprise data center administrators, network operations engineers, and facility systems managers deploy this hardware to supply continuous, regulated power to blade servers, central storage arrays, and mission-critical network elements.

The configuration runs on a true online double-conversion topology that completely isolates downstream hardware from municipal power failures, drops, or frequency shifts. Incoming AC is continuously rectified into DC and then reconstituted into a precise, isolated pure sine wave. The pre-installed cybersecure Network-M3 Gigabit card brings encrypted out-of-band network monitoring and remote reboot controls over local LAN or WAN links.

Occupying 6U of vertical rack space in standard 19-inch 4-post frames, this modular setup is also convertible into a freestanding tower orientation. The dual-voltage output architecture provides simultaneous 208V high-voltage paths alongside 120V stepped-down circuits to cover mixed IT rack hardware demands. Do not use this high-capacity backup array to supply heavy industrial laser printers or motorized machinery, as inductive back-feed currents will trigger high-voltage safety trips.

Key Features :

• Double-conversion engine eliminates power cross-over lag down to 0 ms.

• Integrated step-down transformer block feeds concurrent 120V and 208V lines.

• Included Network-M3 Gigabit module secures remote administration pathways.

• Smart ABM+ charging cycles optimize internal battery service life by up to 50%.

• Graphical LCD interface panel lets users modify parameters right at the rack.

Specifications :
